Specifications
Automatic 5 gallon bottle washing machine1. For water
2. Water filling machine: 100-3000BPH (3gl to 5gl)
3. CE, UL, ISO

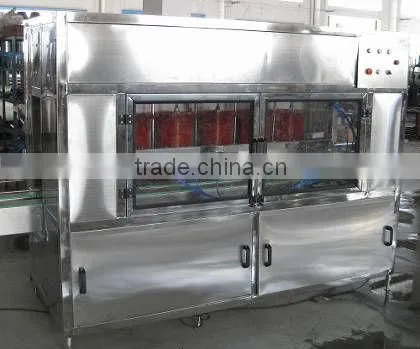

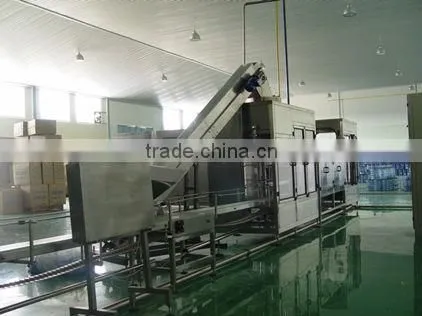

Automatic 5 gallon bottle washing machine
The machine is used for 3 gallon & 5 gallon water filling, which is composed of washer, filling and capper.
- 304 stainless steel insert type filling nozzle, two time high precision filling, filling volume adjustable.
- Water pump: 304 stainless steel pump. three washing pumps and one filling pumps.
- Mitsubishi PLC controlling system, all full-automatic working, Schneider & Omron brand other electric parts
- With AIRTAC brand air cylinder, F.R.L. Combination and Electromagnetism valve for air cylinder.
-
Machine frame and body: all 304 Stainless Steel, combine with clear fiber glass windows

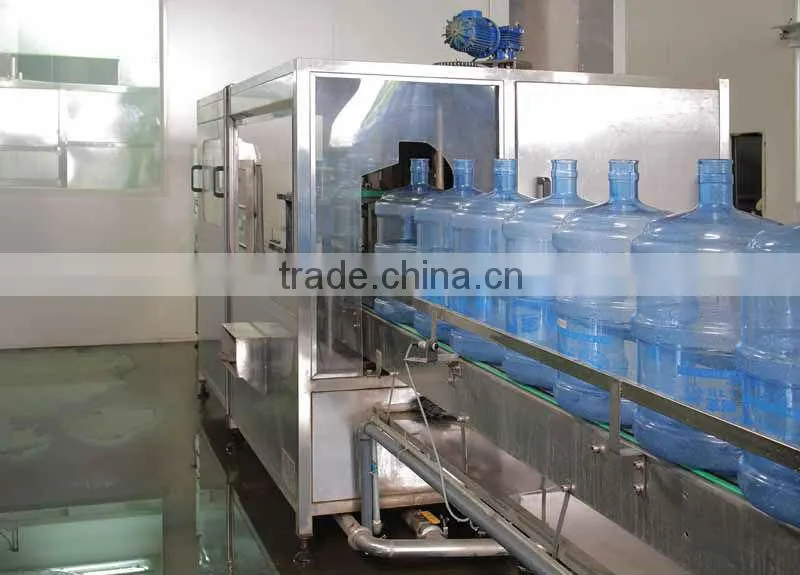

Automatic 5 gallon bottle washing machine

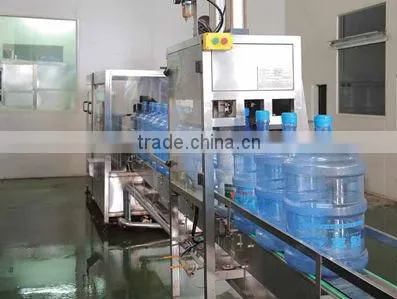

Cap Decapper
This model automatic decapper is special equipment for 5-gallon retrieving barrel. It does not damage caps.
This machine adopts computer control and its capacity can be adjusted. Cap pulling organism from AIRTAC adopt
pneumatic adjustment, which solves the problems of tolerance of barrel height and tolerance of barrel’s mouth, and
increases cap pulling success greatly. 304 stainless machine frame and machine body.
Outer Brusher
Function: clean the external of 5 gallon bottles with brush and water
1. Rotary style to wash the bottle body.
2. Material of machine frame and body: all 304 Stainless Steel.
3. All 304 stainless steel pipeline , valve and connector, fine polish, no death corner
4. Linear washing style with ø350brush 1pc ø200 brush 3pcs 300*3 brush 20pcs
5. Water pump: with 304 stainless steel pump
6. Washing tank: size 500*300*600*1.2, 304 stainless steel
7. No bottles, no washing

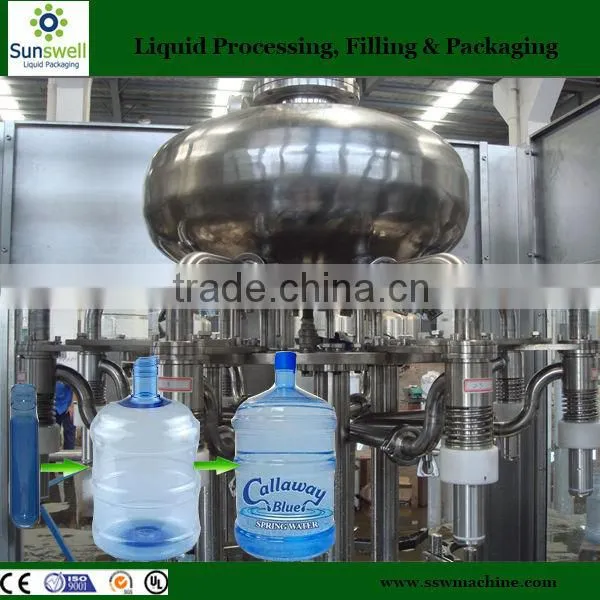

Washing-filling-capping 3-in-1 Monoblock
1. 3-rows 12-washing stops. Everything stop is about 23 seconds
2. 304 stainless steel insert type filling nozzle, two time high precision filling, filling volume adjustable.
3. Water pump: 304 stainless steel pump. three washing pumps and one filling pumps.
4. Mitsubishi PLC controlling system, all full-automatic working, Schneider & Omron brand other electric parts
5. With AIRTAC brand air cylinder, F.R.L. Combination and Electromagnetism valve for air cylinder.
6. Machine frame and body: all 304 Stainless Steel, combine with clear fiber glass windows
Function: convey the empty and the filled bottles
1. The total length is subject to layout
2. Motor drive
3. SUS304 stainless steel frame and chain plate

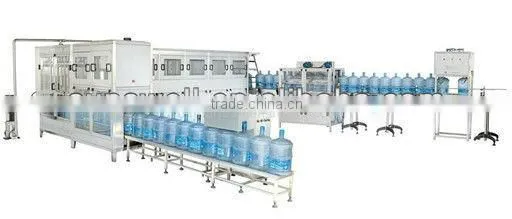

Automatic 5 gallon bottle washing machine
Main technical data | |||||||
Model |
QGF-100 |
QGF-300 |
QGF-450 |
QGF-600 |
QGF-900 |
QGF-1200 |
QGF-2000 |
Number of filling heads |
1 |
2 |
3 |
4 |
8 |
12 |
16 |
Filling capacity |
18.9 |
18.9 |
18.9 |
18.9 |
18.9 |
18.9 |
18.9 |
Barrel size (mm) |
φ270×490 |
φ270×490 |
φ270×490 |
φ270×490 |
φ270×490 |
φ270×490 |
φ270×490 |
Production capacity (b/n) |
100-120 |
200-240 |
300-400 |
600 |
900 |
1200 |
2000 |
Gas pressure (Mpa) |
0.4-0.6 |
0.4-0.6 |
0.6 |
0.6 |
0.6 |
0.6 |
0.6 |
Gas consumption (m3/min) |
0.37 |
0.6 |
0.6 |
1.2 |
2.2 |
3 |
4.5 |
Motor power(kw) |
1.75 |
3.22 |
4.8 |
8.5 |
8.5 |
8.5 |
8.5 |
Rated voltage (V) |
380V/50Hz |
380V/50Hz |
380V/50Hz |
380V/50Hz |
380V/50Hz |
380V/50Hz |
380V/50Hz |
Overall dimension (mm) |
3790×650 |
3550×800 |
3550×1200 |
3650×1500 |
2200×1860 |
2560×2350 |
3100×2800 |
Automatic 5 gallon bottle washing machine
