Product Details
Structure: | Jaw / Spider | Flexible or Rigid: | Rigid | Standard or Nonstandard: | Standard |
Material: | Stainless Steel | Brand Name: | BAIMI | Place of Origin: | Hebei, China |
Model Number: | E TYPE |
Product Description

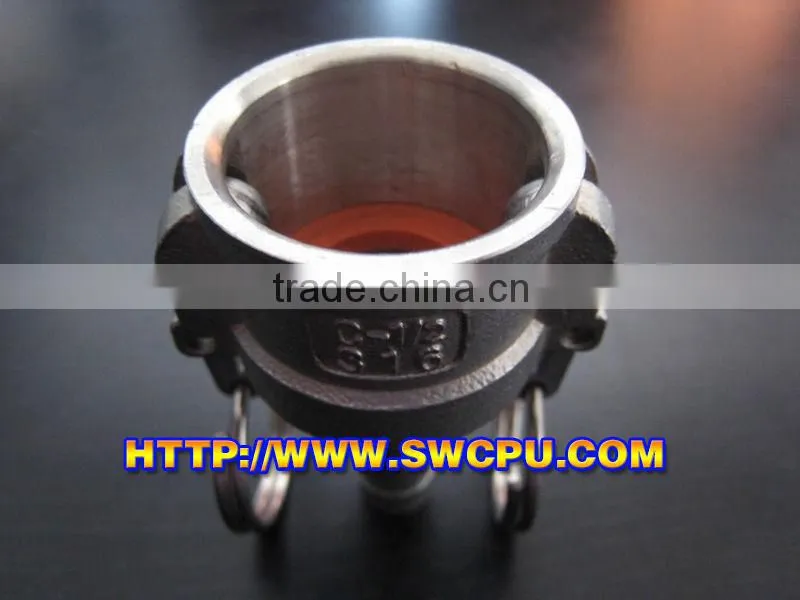

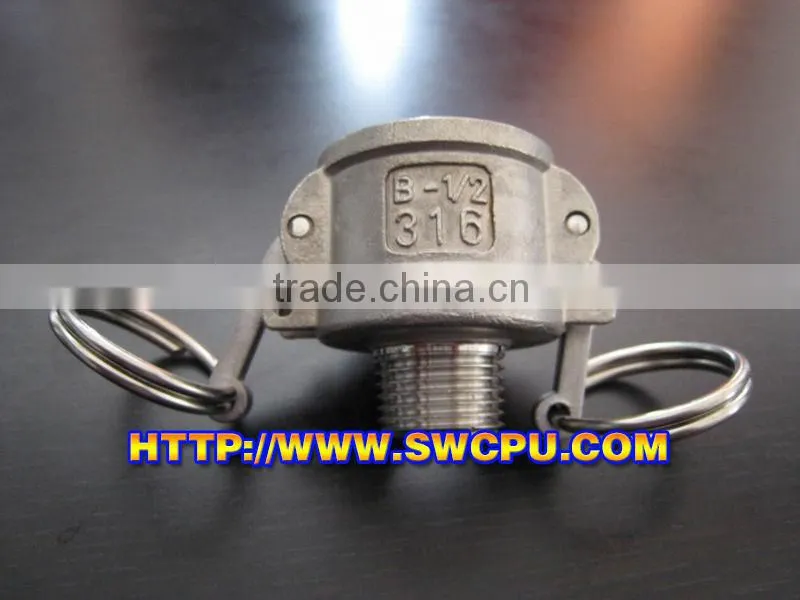

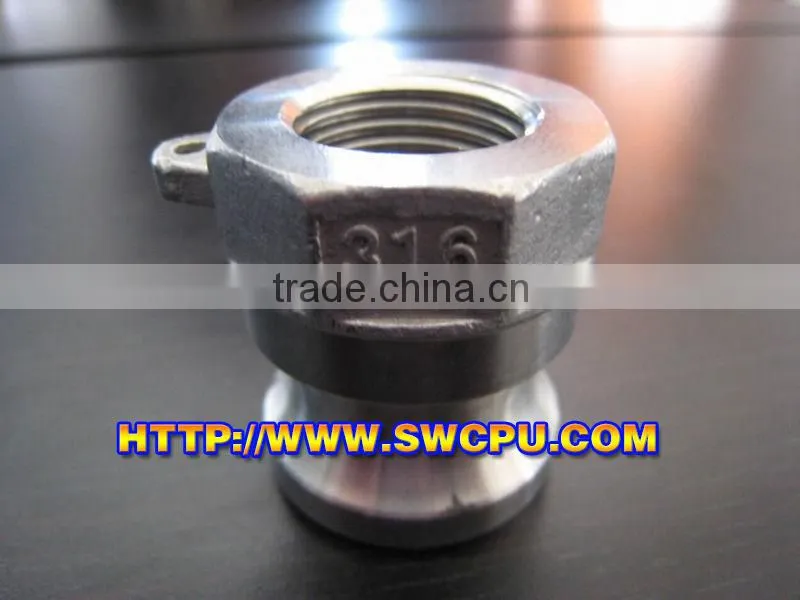

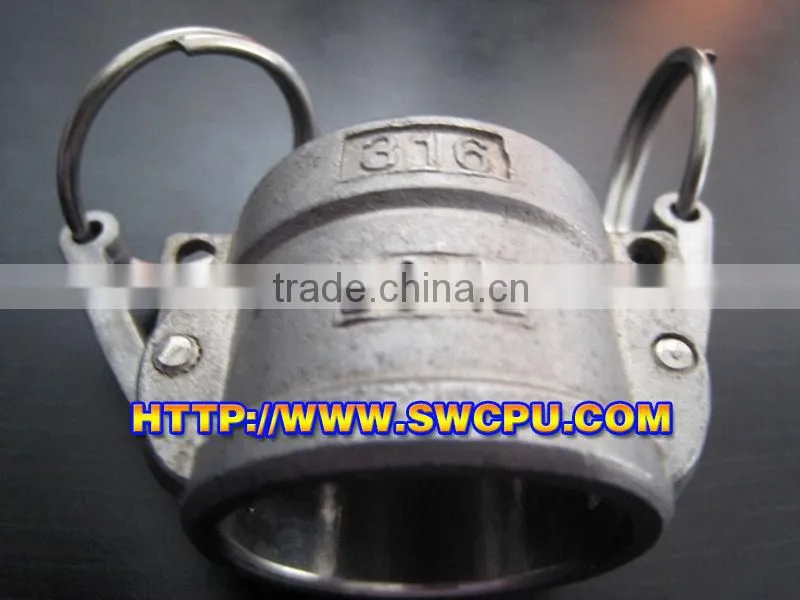

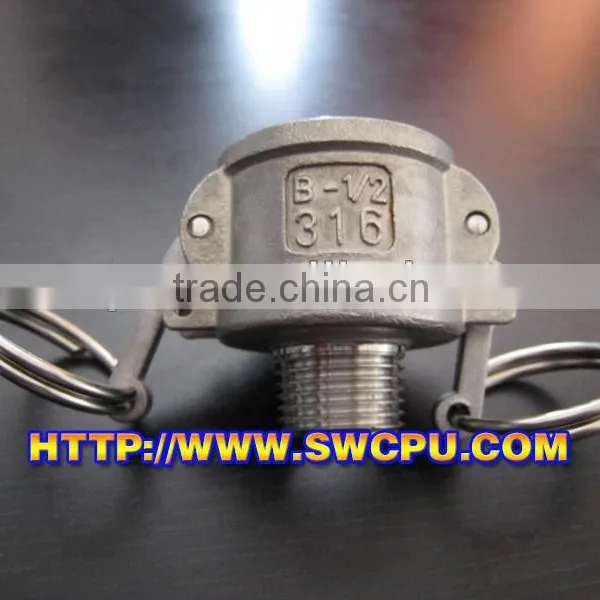

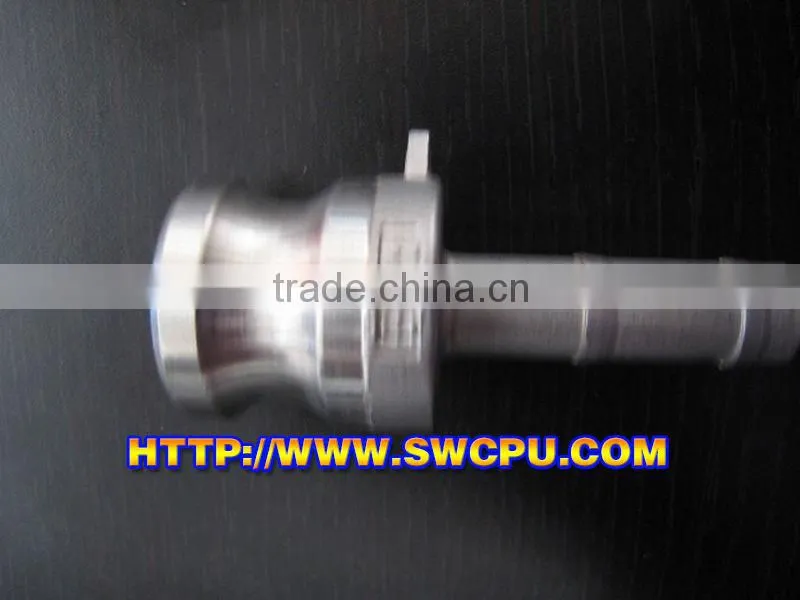

quick couplings
Quick connector (quick change connector) is the convenient and efficient device which connected to piping and equipment i. Its easy operation, it could freely connect without any accessory appliance, safe and reliable. According to the above advantages, it is called quick connectors or quick-change connectors. It widely used in the developed western countries as early as the last century. As China's rapid economic development, It has also recently been used multiple industries. Currently the more popular industries: petroleum, chemical, gas, water conservancy, environmental protection, pharmaceutical, foundry buildings, new technology industries such as machinery and equipment.
Material: made of sus304, sus316l, other materials can be customized.
Specifications: 1/2-6 "; DN15-150.
Nominal pressure: 6.4MPa.
Working Temperature: -20 ~ 232
Applicable medium: gas, water, oil, gas and some corrosive liquids
Thread Type: NPT, BSPT, BSP, DIN259/2999
Connection Type: screw thread; the other can be equipped with flange connection
Type E
DIM | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 | 2 1/2 | 3 | 4 | 5 | 6 |
A | 14 | 14 | 20 | 25 | 31 | 43 | 55 | 67 | 92 | 115 | 140 |
B | 98 | 98 | 110 | 120 | 125 | 140 | 158 | 170 | 182 | 196 | 220 |
C | 33 | 33 | 39 | 48 | 56 | 66 | 80 | 102 | 132 | 154 | 184 |
D | 20 | 20 | 26 | 33 | 39 | 52 | 65 | 77 | 102 | 130 | 155 |
E | 40 | 40 | 46 | 53 | 56 | 60 | 64 | 66 | 69 | 70 | 78 |
Specifications: standard or according to customers requirements.
Packing: Inner PVC, outer carton, or according to customers requirements.
Remark: We can produce products of Chinese Standard, ANSI, DIN, and JIS or process of non-standard
