Specifications
Rotary Type Automatic Cup Filling Sealing Machine1.auto cup dropping;
2.auto cup filling
3.auto cup sealing
4.auto existing

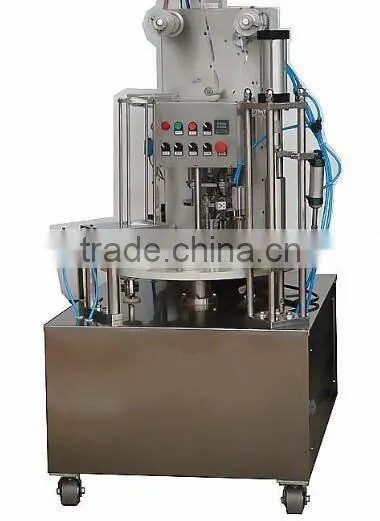

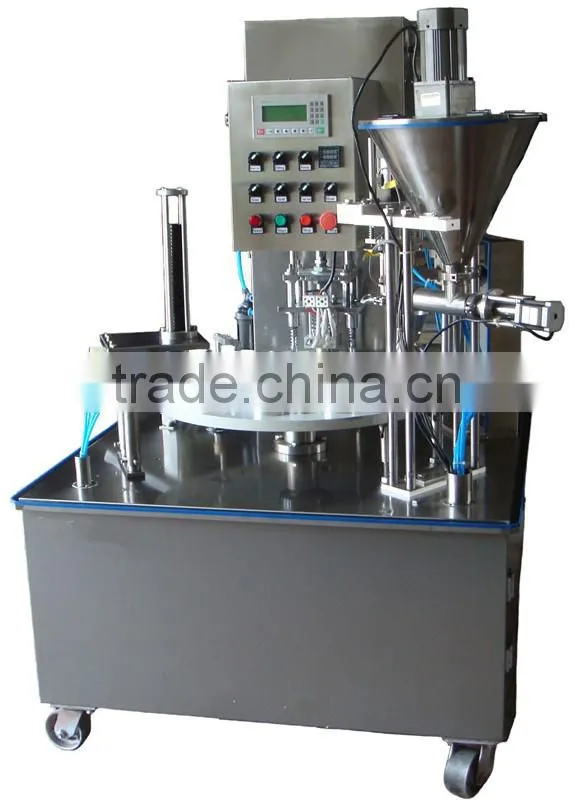

Rotary Type Automatic Cup Filling Sealing Machine
pre-cut foil roll film
I.Brief Introduction
Can be customized for packing fine coffee(coffee powder), coarse coffee(coffee
granule), tea powder, coconut powder and so on.
II. Main function
001 KIS-900 Rotary Type Automatic Cup Filling Sealing Machine--- pre-cut foil
1. automatic cup dropping (cups can be stacked, but can’t stick together)
2. automatic filling and compact
3. automatic foil suck

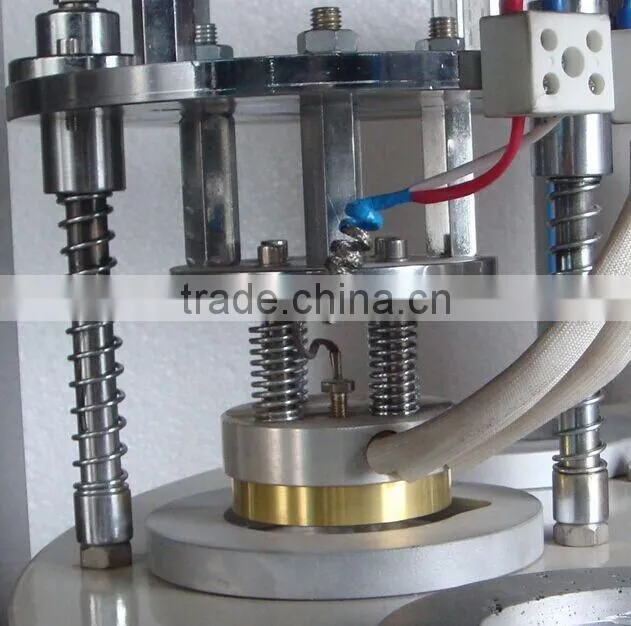

4. automatic sealing

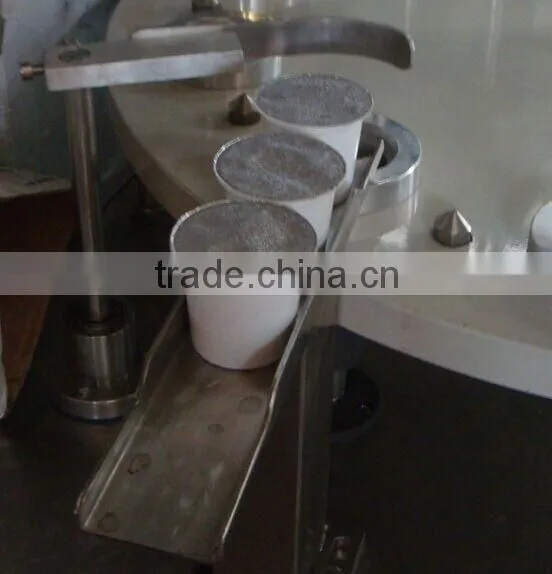

5. auto cup exiting
002 KIS-900 Rotary Type Automatic Cup Filling Sealing Machine--- roll film
1. auto cup dropping (cups can be stacked, but can’t stick together)
2. auto filling
3. automatic sealing
4. auto film cutting
5. wasted film recycling
6. auto cup exiting
7. photocell
8. date printing
III.Compenet parts
- Xinjie PLC
- domestic reducer
- domestic splitter
- domestic cylinder
- domestic motor
- Mindman solenoid
- Aluminium rotary board
- S.S. heating element
- acid-resisting aluminium mould board
- S.S. outside frame
IV.Technical parameter
KIS-900 |
Rotary Type Automatic Cup Filling Sealing Machine |
Production capacity |
800-1000 cups/hour |
Filling volume |
5-7g |
Voltage |
380V/50Hz |
Air consumption |
0.6m3/min |
Power |
4kw |
Dimension |
1250*1250*1650mm |
Weight |
250kg |
V. Configuration
001 KIS-900 Rotary Type Automatic Cup Filling Sealing Machine--- pre-cut foil
1. Automatic cup dropping

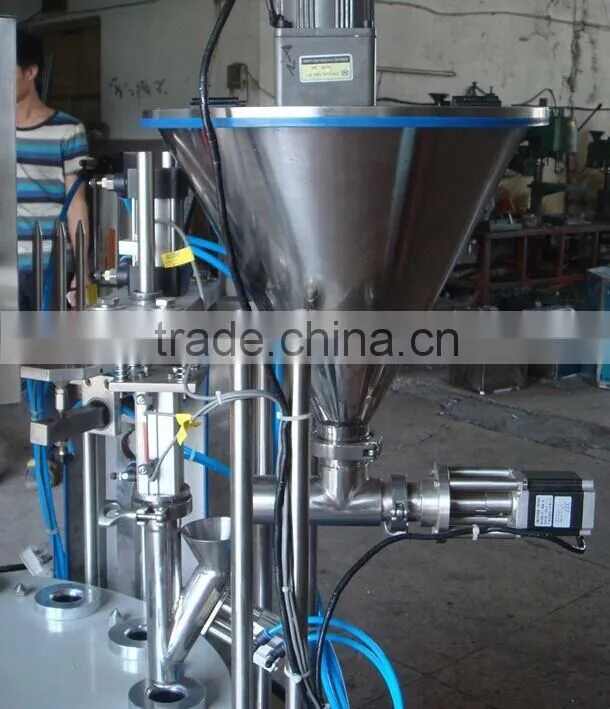

2. Auger filling with compact
3. Automatic foil suck
4. Automatic sealing
5. Automatic cup exit
VI.Product Samples
VII.Our Qualification
