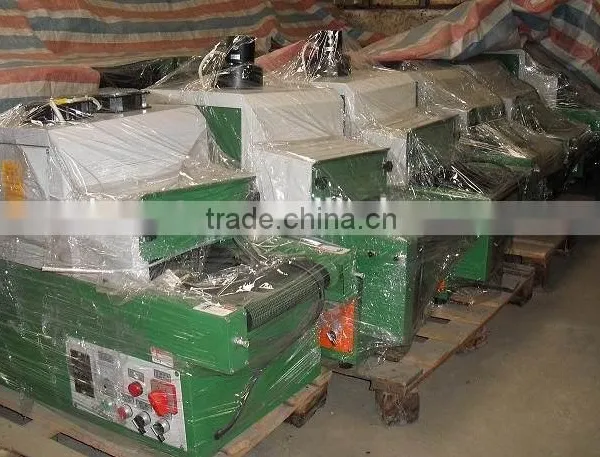

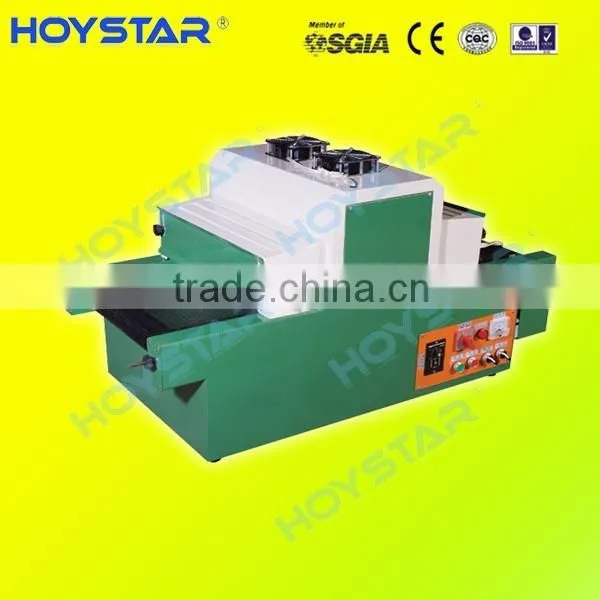

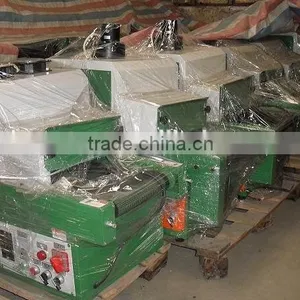

Help CenterGW-UV300A Desktop Small UV Tunnel Dryer
Related Products
-
GW-UV400 Small UV Curing Machine With ConveyorNegotiableMOQ: 1 Set -
700mm Width Conveyor Belt uv Curing Machine for uv InkNegotiableMOQ: 1 Set
-
GW-UV1000 Large UV Curing Machine for Screen PrintingNegotiableMOQ: 1 Set
-
Desktop Tunnel uv Dryer for Business CardNegotiableMOQ: 1 Set
-
Screen Printing UV Dryer Machine for Plastic RulerNegotiableMOQ: 1 Set
This UV curing machine is with conveyor, it is used in cellphone crust, compact disc, thin film switch, electronic and plastic crust UV surface to painting, kinds of UV paint, IMD injection products curing. Morever, it also can be used to cure electronic components, liquid crystal film, terminal gumming, cellphone parts sticking and LCD etc. The machine with small volum, light weight, precise making, convenient moving, is suitable to install on desktop
Technical parameter:
outside dimension:1200×660×600mm
The length of inlet:250mm
The legth of output:270mm
The width of belt:300mm
The material of belt:Teflon(imported)
The height of inlet: 540±100mm
the height of inlet point: 10~120mm
Light tube power: 2.0KW/pc×2 (the height of light shine can be adjusted)
The width of light shine:300mm
The length of shine area:300mm
Exhaust fan:38W,2set
The value of wave crest:365mm
Settling time: about 3 min
Convey motor 25W/1set
Convey speed0-12m/min,(the speed can regulate without any limmits)
Convey stylechain
Speed style: electronic speed
Power supply: single phase 220v
Net weight: 65KG
Gross weight: 70KG
