2016 Shanghai Milk Powder Filling/packing Line

                              2016 Shanghai milk powder filling/packing line

   Descriptive abstract

 The product can be used in, powdery and granulated material. like milk powder, Albumen powder ,solid drink, white sugar, dextrose, coffee powder, fodder, pharmaceuticals, agriculture pesticide, granular additive, dyestuff, and so on.

   Characteristics

1.The machine can make the package of pillow or Vertical type and handling package.

2.The packaging machines of JW series already contain more than ten years production history. Machine construction tightly packed, electric and pneumatic components all adopt the famous factory product of all countries, to sure the long-term work stability of machine.

3.The touch-sensitive screen can display each machine state, operation instruction,the state of breakdown and so on.

4The machine is provided with well-versed AC servo motor technology on the film feed draw belt, resulting in creating smooth operation and higher speed.

5.Adopted the Programmable Controller that made in Japan and up to 100 sets of working configurations can be stored in the machine. Engineer can control and adjust customers' machine in the long range.

6.On-line adjustments of sealing position, cutting position as well as effects can be easily made on the touch-sensitive screen.

7.The automatic temperature controller is used to maintain the working temperature within a deviation of sealing degree centigrade. In addition, a tooth-shaped sealing device is used to ensure the firm sealing.

    Production Line

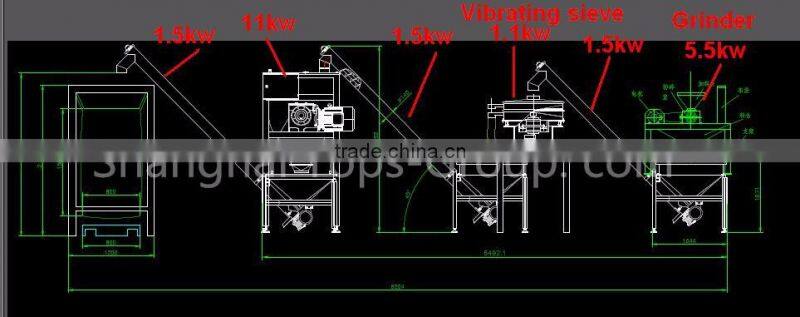

Grinder  + feeder + vibrating sieve +screw feeder + mixer  +  bag filling and sealing machine

     Electronic Control

1. Control panel: Screen interface –Delta, Taiwan brand

2. PLC: Mitsubishi – Japan

3. Photo sensor: TAKEX,

4. Alarm device: Auto stop when film run out or door open or product caught, etc.

5. Solid-state relay: Schneider

6. Power supply: 220V – 50/60 HZ/4 KW

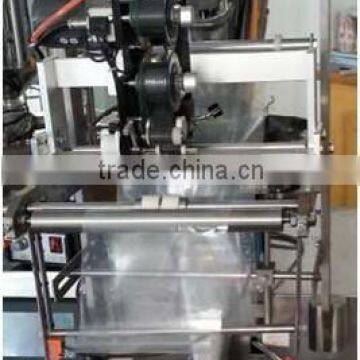

     Printer

1.Operating speed: Synchronal with the machine

2.Printer method: Hot-die stamping with air

3.Printer type: Hot Printer

4.Printing area:  2 or 3 lines

5.Characters of per line: Max. 12 characters

6.Printing position: Changeable
