Production

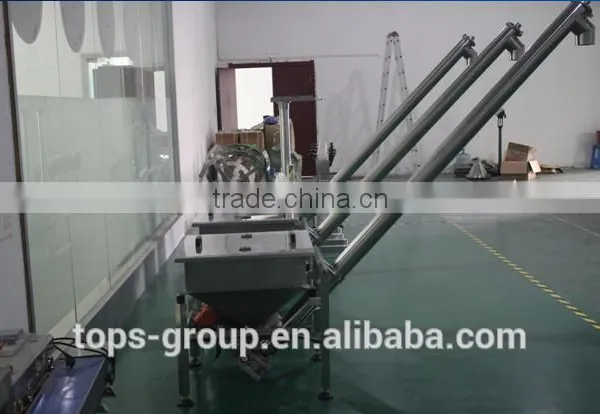

This Vibrating Screw Charging Machine can convey sorts of material. Combined with the package-machine of our company, it can do material situation tracing, also can be used separately. Complete machine made in stainless steel, except for the electrical machine, gearing, and the framework.
Characteristics

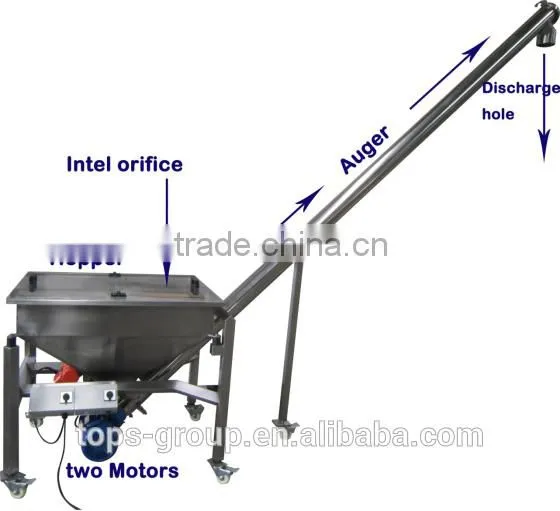

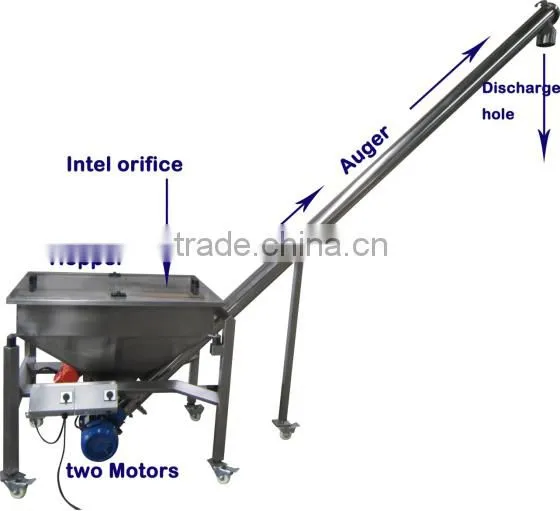

lVibrating screw feeding machine is composed of double motor, feeding motor, vibrating motor and each switch control.
lHopper is adjustable and vibrational which make material to be flowing easily. It is good to material.
lHopper is separate from twisting shaft. Structure is reasonable and easily loading and unloading.
lCharacteristic dustproof, bearing won’t be polluted by the dust and powder.
lTo cleanup scrapped materials conveniently and design the machine to be: Discharging the material reversally, storing materials at the bottom of hopper pipe, taking out the whole screw.
Technical Parameter
Main Specification | HZ-2A2 | HZ-2A3 | HZ-2A5 | HZ-2A7 | HZ-2A8 | HZ-2A12 |
Charging Capacity | 2m3/h | 3m3/h | 5m3/h | 7m3/h | 8m3/h | 12m3/h |
Diameter of pipe | Ø102 | Ø114 | Ø141 | Ø159 | Ø168 | Ø219 |
Hopper Volume | 100L | 200 L | 200L | 200L | 200L | 200L |
Power Supply | 3P AC208-415V 50/60Hz | |||||
Total Power | 550W | 750W | 1500W | 2260W | 3060W | 4060W |
Total Weight | 100kg | 130Kg | 180Kg | 200Kg | 220Kg | 270Kg |
Overall Dimensions of Hopper | 720x620x800mm | 1023 ×820×900mm | ||||
Charging Height | Standard 1.85M,1-5M could be designed and manufactured. | |||||
Charging angle | Standard 45degree,30-60 degree are also available | |||||
packaging
seaworthy wood carton
Our service
* Inquiry and consulting support.
* View our Factory.
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
