Help CenterSpice Powder Filling Machine Into Cans
Related Products
Specifications
1.suitable for powder and flour2.SUS 304 meterials
3.easy to operate
stomized design
5.with CE,SGS

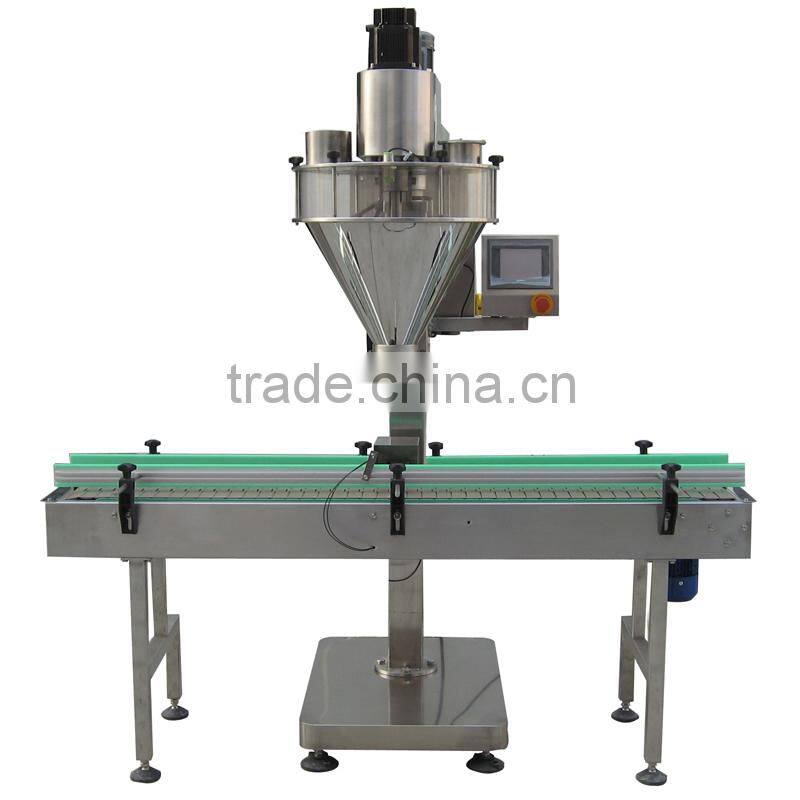

spice powder filling machine into cans
A. General description:
1.This filling machine is a semi-auto type.It is specially and professionally designed to fill the powder which require high weight accuracy and easily to raise dust.
2. It is suitable to fill the powders into bottles, cans, jars,and bags. The size of the filling mouth is adjustable according to different containers.
3. It can fill the materials like coffee powder, milk powder, wheat flour, corn flour, rice flour, protein powder, cosmetic powder, chili powder, onion powder , spar powder, chicken powder, gourmet powder, egg powder, washing powder, detegrate powder, talcum powder, condiment, solid drink, veterinary drugs, dextrose, pharmaceuticals , powder additive, agriculture pesticide, dyestuff, and so on.
TP-PF-A11 (Semi-auto) TP-PF-A21 (Automatic)
More types and pictures,please visit our website.
B . Product features:
1. SUS 304 materials,transparent hoper,durable and easy to clean.
2. PLC touch sreen control system,high accuracy and easy to operate.
3. Servo motor drives screw auger,work stable with high accuracy.
4. Semi-auto type. Control by foot pedal, suitable to fill into bags.
5. Online weighting feedback, could find out which bag is over-weight or under-weight
6. Servo motor drives screw auger,work stable with high accuracy.
7. No dust or powder will come out when filling
8. Diferent type to choose(auto or semi-auto,one or multi-heads filling).
9. Corollary machines available( mixing machine, feeding machine,sealing machine etc.).
C . Technical parameter:
Model |
TP-PF-A11 |
TP-PF-A21 |
Control system |
PLC & Touch Screen |
PLC & Touch Screen |
Hopper |
Quick disconnecting hopper 25L |
Quick disconnecting hopper 25L |
Packing Weight |
1 - 500g |
10 - 5000g |
Weight Feedback |
By off-line scale (in picture) |
Online weight feedback |
Packing Accuracy |
≤ 100g, ≤±2%; 100 – 500g, ≤±1% |
≤ 500g, ≤±1%; >500g, ≤±0.5% |
Filling Speed |
40 – 120 times per min |
15 – 40 times per min |
Power Supply |
3P AC208-415V 50/60Hz |
3P AC208-415V 50/60Hz |
Total Power |
0.93 KW |
1.6 KW |
Total Weight |
130kg |
300kg |
Overall Dimensions |
800×790×1900mm |
2000×970×2030mm |
D. Picturs of details
E. Product samples:
F. Other optional equipments for working with auger filling machine:

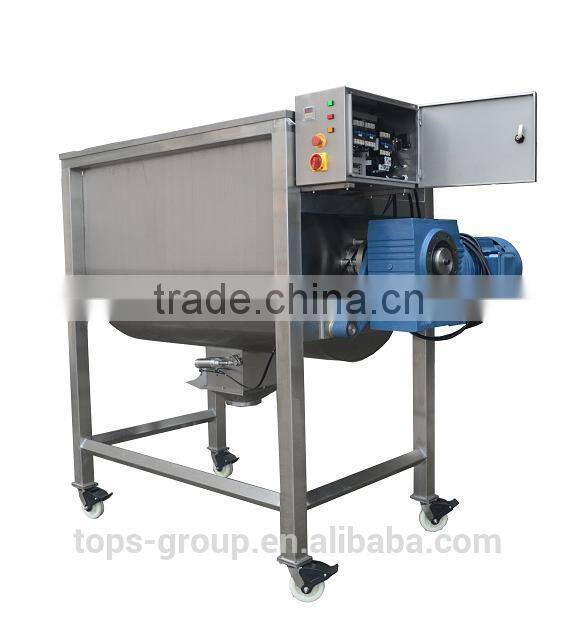

1.Powder mixing machine
2.Screw feeder

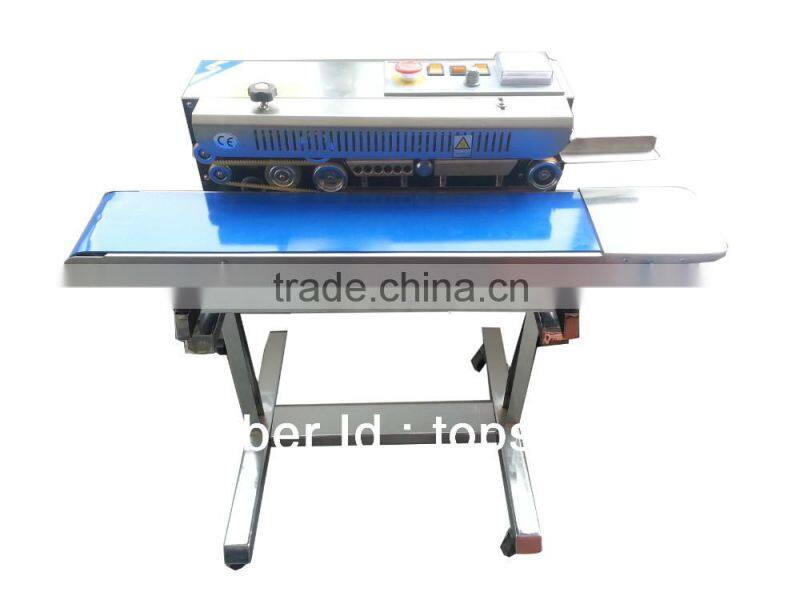

3.Sealing machine
G. Our company and certification
