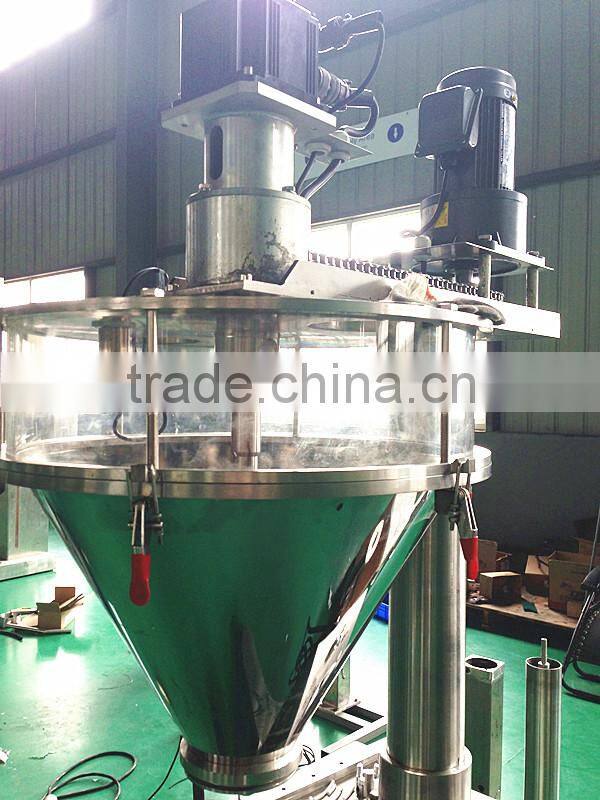

Help CenterWheat Auger Filling Machine With CE Certificate
Related Products
-
Mini Packing Machine for PowderNegotiableMOQ: 1 Set -
Wheat Auger Filling Machine High PrecisionNegotiableMOQ: 1 Set
-
Pharmaceutical Powder Filling MachineNegotiableMOQ: 1 Set
-
Pharmaceutical Filling Machine for Chili PowderNegotiableMOQ: 1 Set
-
Powder Weighing And Filling MachineNegotiableMOQ: 1 Set
Specifications
Filling Machine, Auger filler Packing Machine1,High filling accuracy
2,PLC control
3,servo motor deives screw
SUS304 Filling Machine, Packing Machine Auger Filler
Descriptive abstract:
This type can do dosing and filling work. Due to the special professional design, so it is suitable to the fluidic or low-fluidity materials, like coffee powder, wheat flour, condiment, solid drink, veterinary drugs, dextrose, pharmaceuticals, powder additive, talcum powder, agriculture pesticide, dyestuff, and so on.
Characteristics:
l Lathing auger screw to guarantee the precise filling accuracy

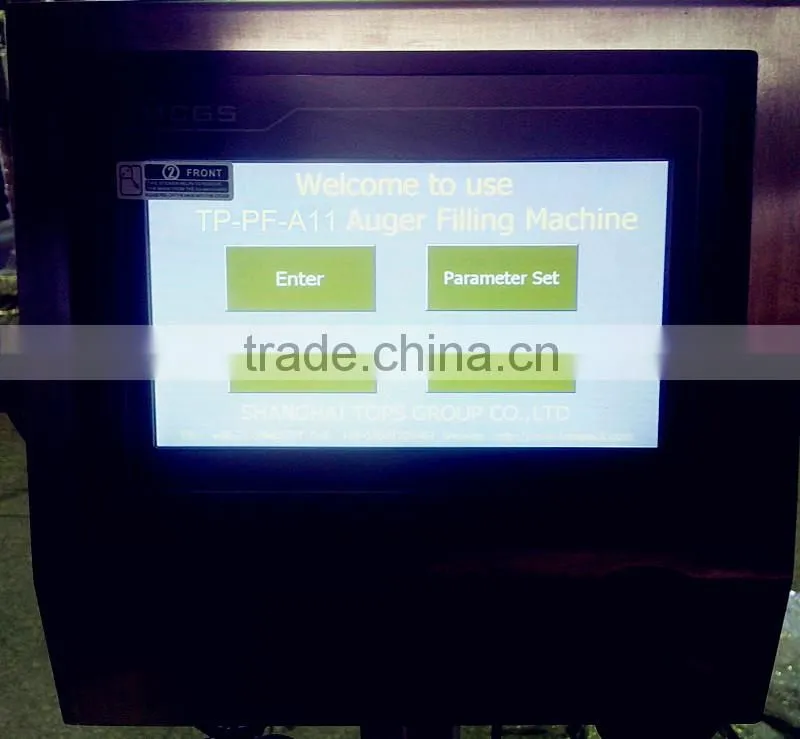

l PLC control and touch screen display
l Servo motor drives screw to guarantee stable performance
l Quick disconnecting hopper could be washed easily without tools
l Can be setting to semi-auto filling by pedal switch or auto filling
l Full stainless steel 304 material
l weight feedback and proportion track to materials, which overcomes difficulties of filling weight changes due to materials’ density change.
l Save 10 sets of formula inside the machine for later use
l Replacing the auger parts, different products ranging from fine powder to granule and different weight can be packed
Technical Parameter:
Model |
TP-PF-A11 |
TP-PF-A11S |
Control system |
PLC & Touch Screen |
PLC & Touch Screen |
Hopper |
Quick disconnecting hopper 25L |
Quick disconnecting hopper 25L |
Packing Weight |
1 - 500g |
1-500g |
Weight Feedback |

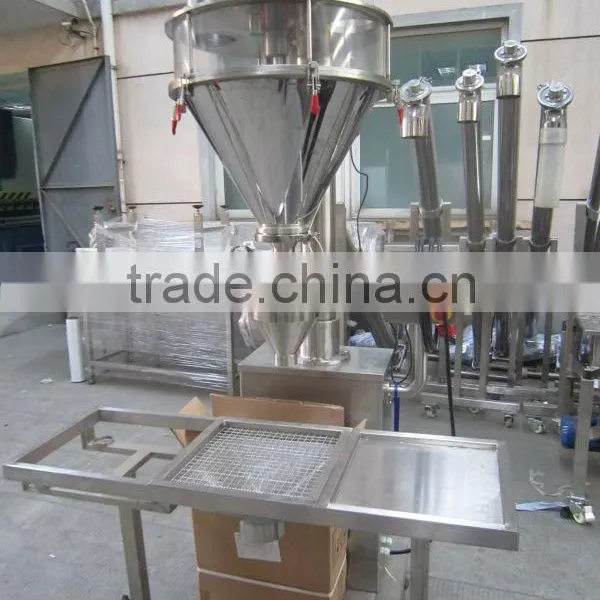

By off-line scale (in picture) |
Online weight feedback |
Packing Accuracy |
≤ 100g, ≤±2%; 100 – 500g, ≤±1% |
≤ 100g, ≤±2%; 100 – 500g, ≤±1% |
Filling Speed |
40 – 120 times per min |
40 – 120 times per min |
Power Supply |
3P AC208-415V 50/60Hz |
3P AC208-415V 50/60Hz |
Total Power |
0.93 KW |
0.93 KW |
Total Weight |
130kg |
130kg |
Overall Dimensions |
800×790×1900mm |
800×790×1900mm |
Configuration List:
No. |
Name |
Specification |
Pro. |
Brand |
1 |
Stainless steel |
SUS304 |
China |
|
2 |
Touch Screen |
|
Taiwan |
Panel Master |
3 |
Servo motor |
TSB13102B-3NHA |
Taiwan |
TECO |
4 |
Servo driver |
ESDA40C-TSB152B27T |
Taiwan |
TECO |
5 |
Agitator motor |
0.4kw,1:30 |
Taiwan |
CPG |
6 |
Switch |
|
Shanghai |
|
7 |
Emergency switch |
|
|
Schneider |
8 |
Filter |
|
|
Schneider |
9 |
Contactor |
|
Wenzhou |
CHINT |
10 |
Hot relay |
|
Wenzhou |
CHINT |
11 |
Fuse seat |
RT14 |
Shanghai |
|
12 |
Fuse |
RT14 |
Shanghai |
|
13 |
Relay |
|
|
Omron |
14 |
Switching power supply |
|
Changzhou |
Chenglian |
15 |
Proximity switch |
BR100-DDT |
Korea |
Autonics |
16 |
Level sensor |
|
Korea |
Autonics |
Parts Picture:
Centrifugal device for easy flowing products, Pressure forcing device for non-flowing to
ensure precise filling accuracy products, to ensure the precise filling accuracy
Company:
Qualification:
Promise:
Top and consistent quality, Reliable and excellent after-sale service!
