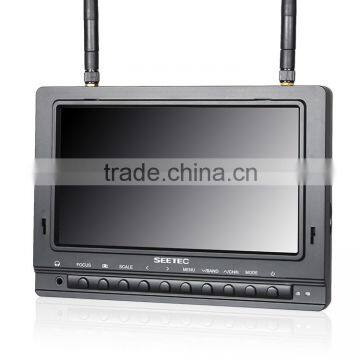

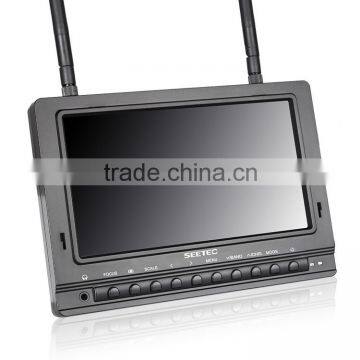

Phantom vision new 7 inch fpv monitor anti antiglare matte screen helicopter with camera full hd
This FPV monitor is a medium sized 7" screen with a super bright LCD and 5.8GHz 32CH diversity receiver, built in rechargeable battery. Excellent choice for your FPV monitor, or as a secondary backup screen for your friends to watch. The 1000cd/m² is plenty of brightness for outdoor applications where you need a bright screen, and the included sun shade will help keep unwanted light off the screen, reducing glare. The integrated rechargeagble battery keeps your FPV grounstation compact and easy to use.Perfect for outdoor operation. This monitor will not go to a blue or black screen when video signal is lost or static. Perfect for an FPV application where you don't want your screen to go blank when the video signal is weak.
1.Channel Auto searching ,selection via button
2.High sensitivity diversity receivers for the best possible reception,
Built in Dual receiver Automatically for best reception automatic switching. 3.FPV aerial dedicated input port,High Definition.

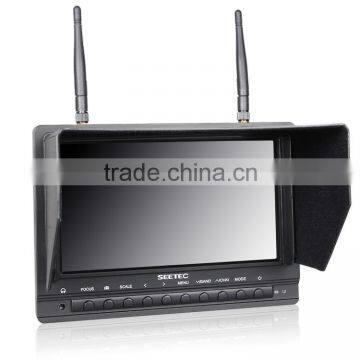

4.High brightness,contrast ratio sunshade cover,can see clearly under sunlight
No Blue Screen under weak signal
5.Multiple color format support,manually enter the menu to select the appropriate standard,
stronger adaptability
6.Analog composite video AV input,connect FPV aerial camera
7.16:9 screen radio,switch 16:9/4:3 display mode freely
8.Connect with camera,as a monitor or aerial monitor
9.Multiple installation ways,convenient for different angles to view
| Description | 7" FPV monitor for aerial photography | ||
| Model | FPV733 | ||
| Resolution | 800x480 | ||
| Dot pitch | 0.0642(W) × 0.1790(H) mm | ||
| Aspect ratio | 16:9 | ||
| Brightness | 1000cd/m² | ||
| Contrast | 500:1 | ||
| Backlight | LED | ||
| Response time | 15 ms | ||
| Viewing Angle | 70°/70°(L/R) 50°/70°(U/D) | ||
| Inputs | HDMI,VIDEO,AUDIO,RF | ||
| Output | Video,3.5mm Earphone Jack | ||
| Surface Treatment | Anti-Glare | ||
| Support video format | PAL-4.43;NTSC-3.58 | ||
| Speaker | Built in, 1 Watt | ||
| Built-in battery | 7.4v/2200mA(2 hours) | ||
| Input Voltage | DC 9-19V | ||
| Power Consumption | ≤13W | ||
| workinging Temperature | -20℃~50℃ | ||
| Storage Temperature | -30℃~65℃ | ||
| Install Way | "1/4"-20 Thread and VESA mounting socket(75mm) | ||
| Unit Size | 188.4 × 134W ×33.7H(mm) | ||
| Unit Weight | 450g/540g(with battery) | ||
Channel Auto Scan
It supports 32-channels totally, Long press “Search” button to realize auto channel searching function when aerial photography. It’s much more convenient than traditional methods.
5.8GHz Wireless AV Receiver
Built-in AV receiver support PAL / NTSC .
Simulation of composite video AV inputs, aerial camera connection.
5.8Ghz frequency 4 Bands and total 32 channels.
Snow screen, no more “blue” screen
