High resolution 800x480 compable with 5.8GHz transmitters 8" dual 32 channels receiver dji phantom drone

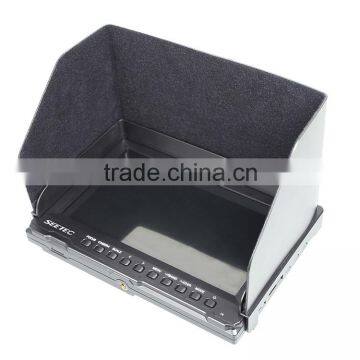

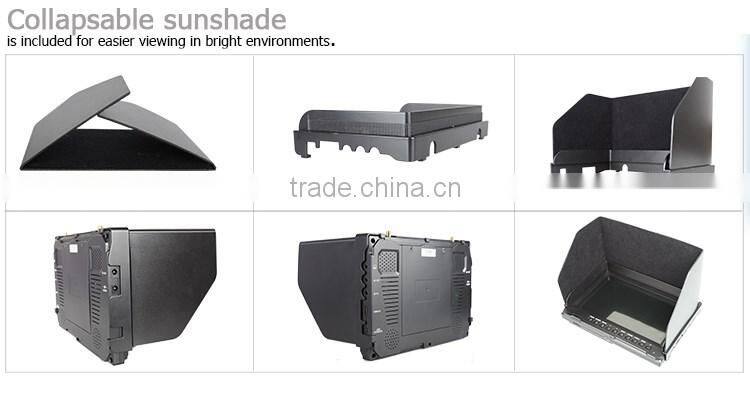

Ultra-thin design only 22mm Thickness,8" screen with a super bright LCD and 5.8GHz 32CH diversity receiver, Channel Auto searching.Excellent choice for your FPV monitor. The 450cd/m² is plenty bright for outdoor applications where you need a bright screen, and the included sun shade will help keep unwanted light off the screen, reducing glare. The built in integrated rechargeagble battery keeps your FPV grounstation compact and easy to use. This monitor will not go to a blue or black screen when video signal is lost or static. Perfect for an FPV application where you don't want your screen to go blank when the video signal is weak.
1.Channel Auto Searching ,selection via button
2.Built-in integrated lipo battery
3.DC output
4.Best Channel Receiption via Antenna Auto-switching
5.No Blue Screen
6.32 Channels Receiver
7.Portable DVR,TF Card max up to 32G
8.Motion Detection
9.Cycle Recording
10.High Sensitivity:-90dBM,Frequency Control
Photography Functions:
1.screenshot shortcuts
2.Peaking Focus Assist
3.Camera 5D II Mode
4.Check Field:
5.Screen Marker:
6.Centre Marker
7.4:3&16:9 image adjustable 8.Full Screen Display in mode of Monitoring & Recording
| Description | 8'' built in battery FPV Monitor dual 32CH 5.8GHz diversity receivers | ||
| Model | FPV821 | ||
| Dot Resolution | 800x480 | ||
| Dot pitch | 0.0736(W) X 0.2070(H) mm | ||
| Aspect Ratio | 16:9 | ||
| Brightness | 450cd/m² | ||
| Contrast Ratio | 500:1 | ||
| Backlight | LED | ||
| Response Time | 10ms | ||
| Viewing Angle | 70°/70°(L/R) 50°/70°(U/D) | ||
| Support video format | PAL-4.43;NTSC-3.58 | ||
| Input Signals | Mini HDMI,AV,RF | ||

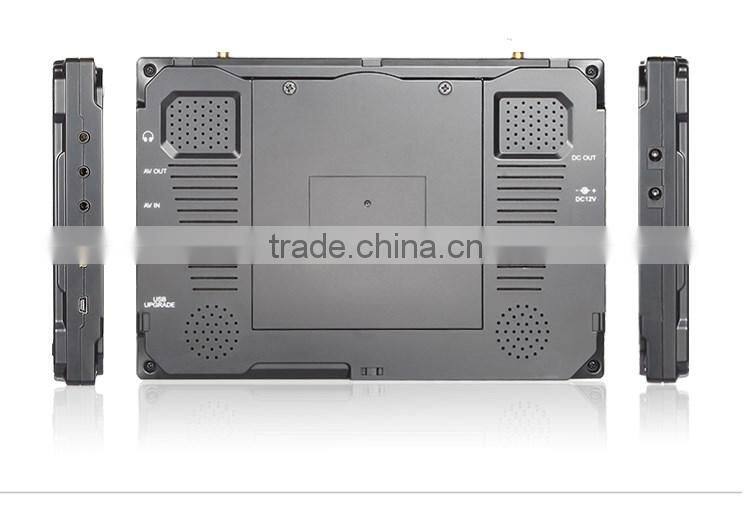

| Output Signals | AV ,3.5mm Earphone Jack | ||
| HDMI Mode | 480i /480p /576i /576p 720p /1080i /1080p (50/60Hz) | ||

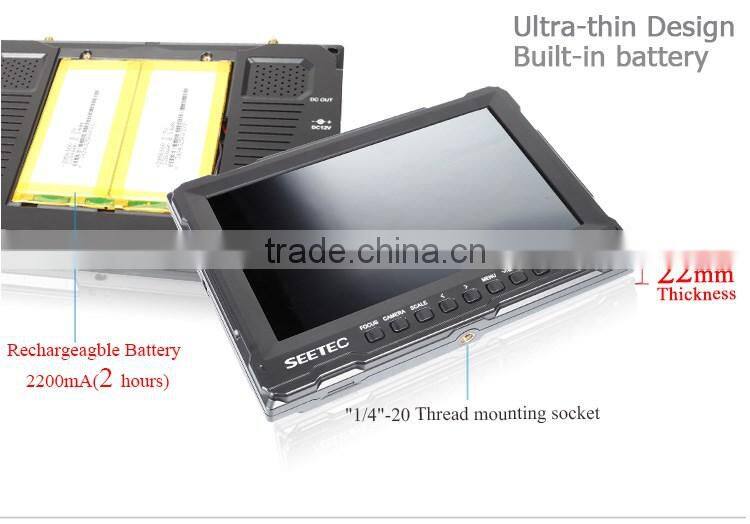

| Built-in battery | 7.4v/2200mA(2 hours) | ||
| Input Voltage | 9-18V | ||
| Power Consumption | ≤13W(with battery) | ||
| workingTemperature | -20℃~50℃ | ||
| storage Temperature | -30℃~65℃ | ||
| Install Way | "1/4"-20 Thread mounting socket | ||
| Unit Size | 212L × 144W × 22H(mm) | ||
| Unit Weight | 520g/600g(with battery) | ||

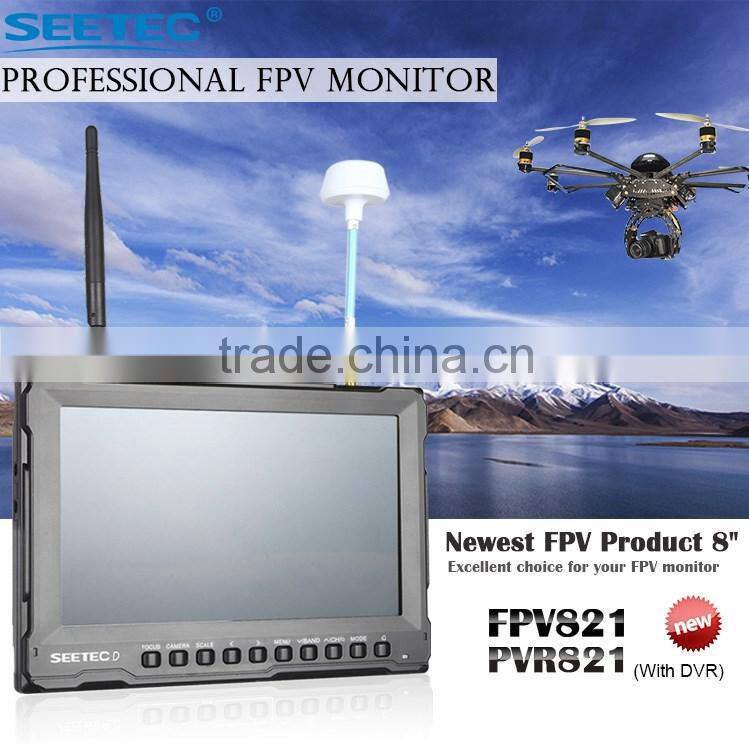

SEETEC the new generation of powerfull FPV Monitor can meet the demand of an unprecedented visual experience.
Model No:FPV821

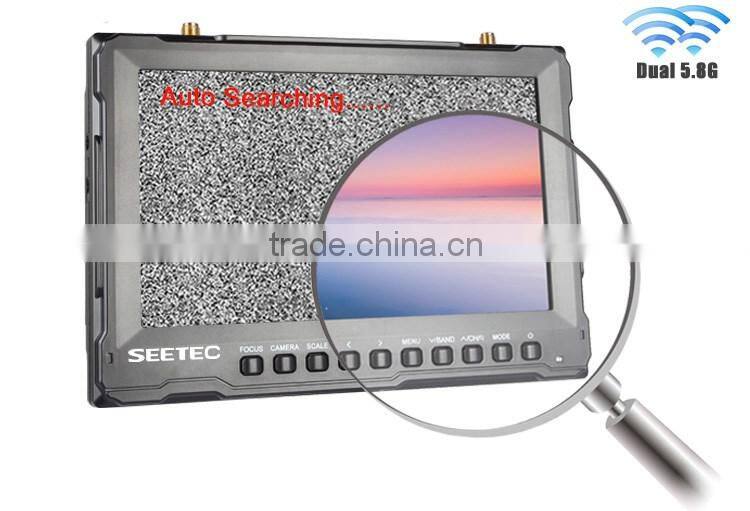

Channel Auto Searching

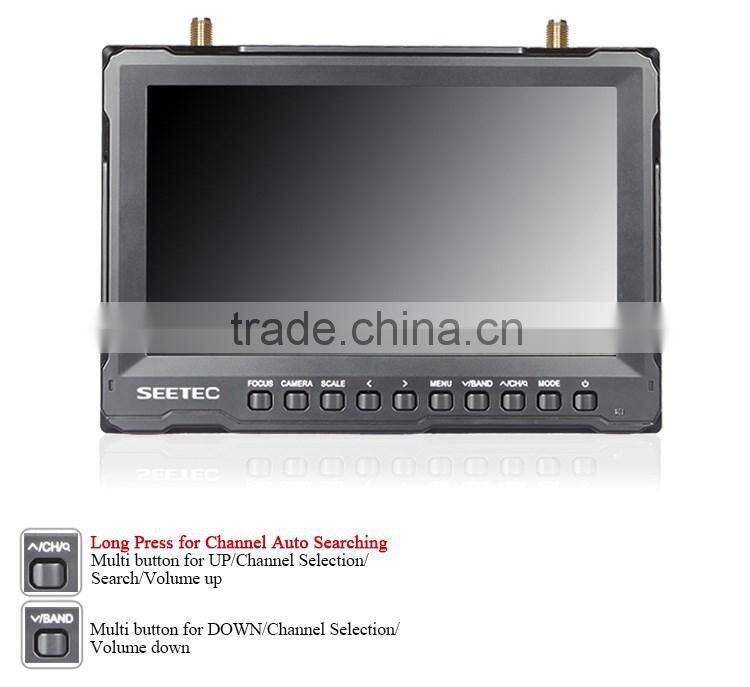

It supports 32-channels totally, Long press “Search” button to realize auto channel searching function when aerial photography. It’s much more convenient than traditional methods.
5.8GHz Wireless AV Receiver
Built-in AV receiver support PAL / NTSC .
Simulation of composite video AV inputs, aerial camera connection.

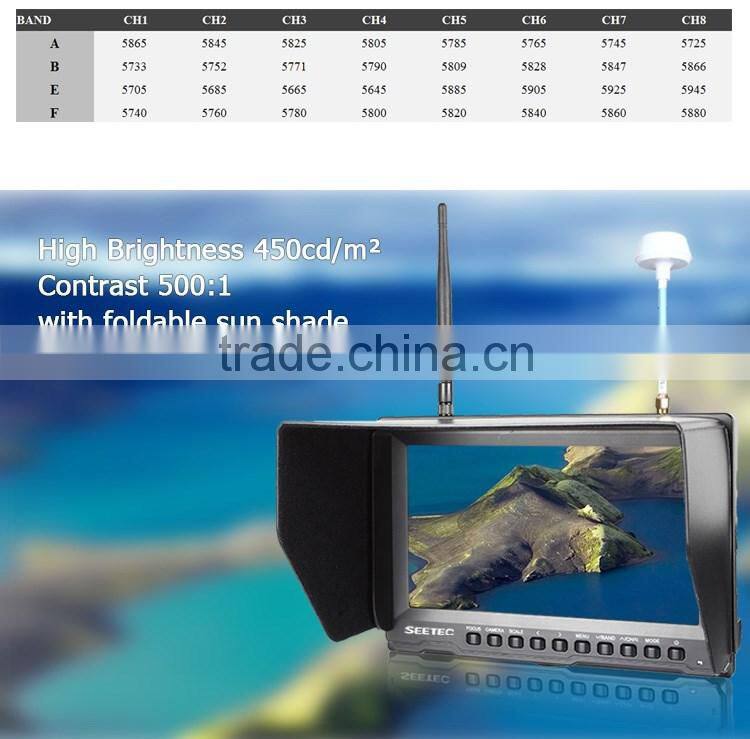

5.8Ghz frequency 4 Bands and total 32 channels.
Snow screen, no more “blue” screen
Gift&neutral box 10 pcs/carton
Delivery Information:
SEETEC strives to get all orders out as quickly as possible after QC Dept fully test them!
Shipping Method:
By Express: Fedex,DHL,EMS,TNT,UPS,
By Logistics: by air&sea
Shipping Time:
From Monday to Saturday 8:00am-17:30pm
Shipping Address:
.If by paypal, Please note items will only be shipped to verified users with confirmed shipping addresses
.If by T/T, shipping address as communicate
1.Powerfull Research&Development Experience
2.OEM&ODM Ability
3.Strict QC TEST Control
4.EASY & FAST Communicate
5.Responsible After Service
SEETEC designs and manufactures small HD LCD monitors. Products cover on-camera LCD field monitor, VGA/HDMI/HD-SDI LCD monior, LCD touchscreen monitor,Industril PC etc.
Our products are finely engineered to ease of use, maximum portability, dependability and durability. We make products at the finest quality you can find in the video and photography field.
SEETEC R&D core team leaders are composed by a dozen senior technical engineers have years of experience. They ensure our products are innovative and consistently push the boundaries of both technology and design.
We listen to every customer, and take care of their feedback and advices. It is a good way to improve our products and service. Our mission is to develop creative products to customers with a good experience.
We have also several years experience in OEM & ODM orders, and we can meet a variety of customized requirements of customers worldwide. If you have any interest or advice, please feel free to contact us.
