2016 horizontal double spiral powder mixer

The Horizontal Ribbon Mixer  consist of U-Shape  tank, spiral  and drive parts. The  spiral is dual

structure.  dual screw between inner & outer the special structure, running stably.

Our TDPM  series  Ribbon mixer can  mix  powder and small granulues(for any kinds of material) with

sticky or cohesive character,adding spraying device: inject some liquid(<20% liquid material and paste

material into powder or granular material.

Features

A.Good effect.

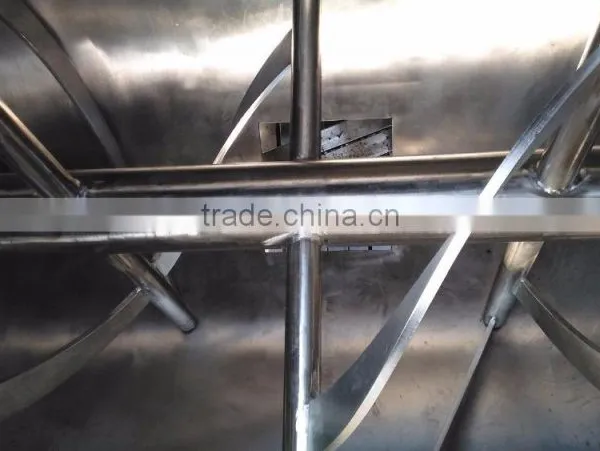

This mixing machine/blender has two ribbon inside. The outer ribbon make the material move from the sides  to the center, and the inner ribbon moves the material from the center to the sides. So the material in the U-tank will get the complete mixing.

B.High efficiency.

TDPM series mixer/blender with double ribbon  can make  the material  mixed  with higher speed.

Generally, the material will be completely mixed in 15 to 20 minutes.

C.No material deposit and without dead angle when mixing.

Under the bottom of  the tank, there is a flap dome valve(pneumatic control or manual control) of the

center. The valve is arc design to make  sure  no  material  deposit and no dead angle  when  mixing.

There is a lid and fence on the top of the tank.It seals the tank well, so that no powder will come out

during mixing.
D.Durable & stable.

All the material of this mixing machine /blender  is made of Stainless Steel 304. At the  same  time,

we can provide SUS 316 material type. TDPM series mixer is with CE certificate.

E. Costmized design

A. We have different size from 200L to 2000L,and we can design a special type to meet your need.

B. On the top of the U Shape tank there is an entrance for material. It can be also designed or  add

liquid   device according the customer’s needs.

C. This mixer also can be designed to cool or heat the powder  inside. We can add a layer  outside

 the tank  to form an inter layer. We can fill water or steam to heat or cool  the materials  in  the tank.

D. We can add a auto spraying shower on the top to meet your special need

Technical Parameter

Main Parts

Packaging & Shipping

Company Information

• As a oversea buyer, I wonder if you could send us engineer for installation and maintenance?

• The machines are test without problem before shipping. Just connect  to power the machine will work .We will always do our best  to solve your problem the whole lifetime of machine ,and oversea service is also available.

• I worry about there is a difference of supply voltage between our countries.

• Usually our power supply is 1P 220V or 3P 220-450V  50/60HZ,and we will confirm your supply voltage when we are going on business.

2. Strict QC process to make sure each product with good quality.

3. Various equipments to meet your need.
