7-inch 1280*800 lcd monitor with vga hdmi port for DSLR Camera ST7DII

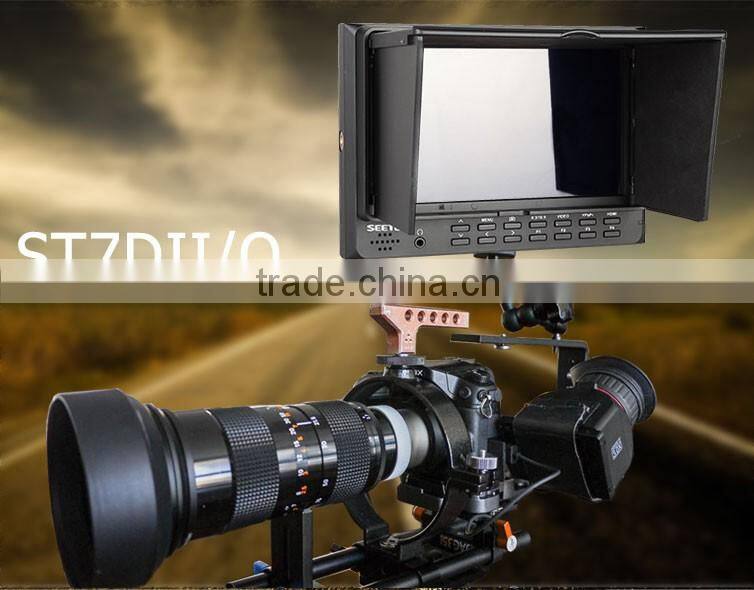

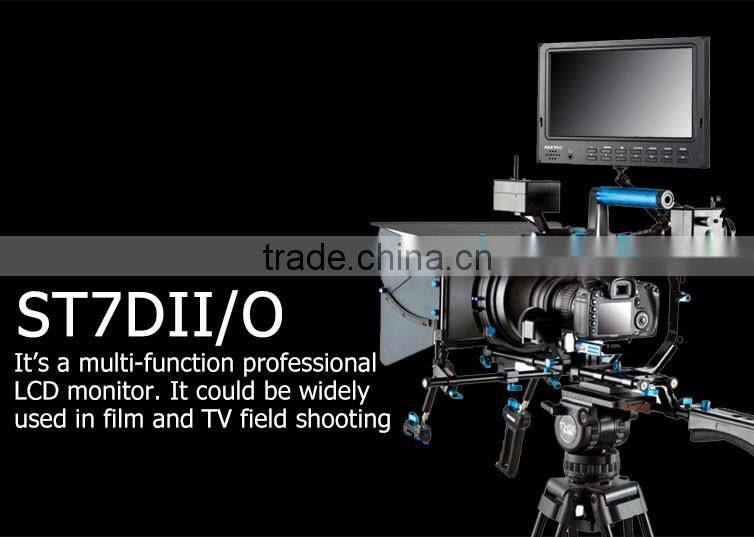

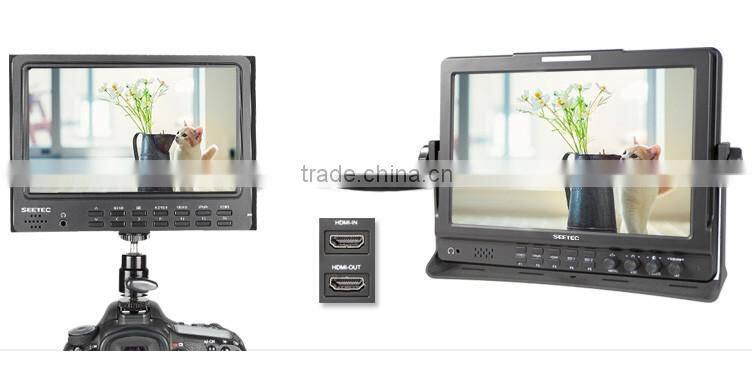

SEETEC ST7DII/O 7LCD Monitor, is a high-quality HD/SD portable DSLR field monitor that combines compact size, light weight and affordability with a range of video source inputs and advanced features. Providing intuitive onscreen controls and a crisp 1024 * 600 resolution this monitor will help you keep your DSLR shots sharp, perfectly framed, and in focus. Designed to be used as an external video display, this HD monitor unit allows you to step back from the camera to frame and capture the action in comfort without having to look through the camera's built-in viewfinder. It converts the image you would normally see on your tiny built-in camera screen to a much larger display that enables easier viewing and won't strain your eyes. An external display monitor is especially ideal in extreme high or low angle shots where it might be hard to access the viewfinder or when you are using a jib, crane or dolly to capture your footage. This monitor has multiple video input options (Component, Composite, and HDMI) allowing it to be used with almost any video-capable camera or camcorder. It also has HDMI In/Out loopthrough and audio In/Out, allowing it to fit into just about any production workflow or situation
| Description | 7" On-Camera Field HD Monitor | |
| Model | ST7DII/O (ST7DII: W/O HDMI output) | |
| Screen size | 7'' | |
| Panel Type | TFT LCD | IPS LCD |
| Resolution | 1024x600 pixels | |
| Dot pitch | 0.05(H) x 0.15 (V) mm | |
| Aspect Ratio | 16:9 | |
| Brightness | 450cd/m² | 600cd//m² |
| Contrast | 700:1 | 800:1 |
| Response time | 10ms | 20ms |
| Viewing Angle | 75°/75°(L/R) 70°/75°(U/D) | 85°/85°(L/R) 85°/85°(U/D) |
| Backlight | LED | |

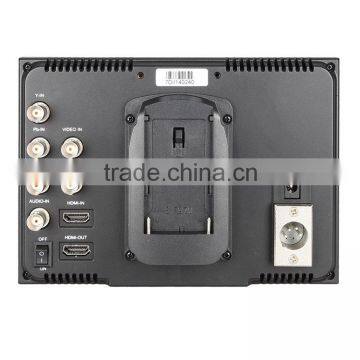

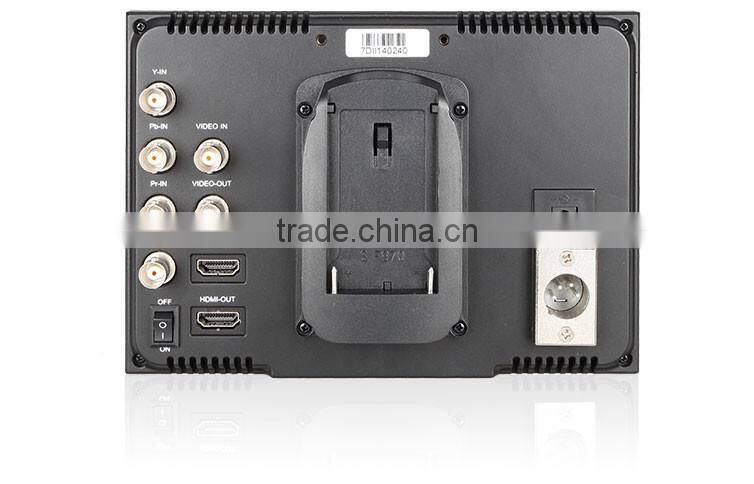

| Inputs | HDMI;Video 1;YPbPr;Audio | |
| Outputs | HDMI;Video;3.5mm Audio; Built-in Speaker | |
| HDMI Support Format | 480i / 576i / 480p/576p | |
| 1080i (60/59.94/50) | ||
| 720p (60/59.94/50/30/29/25/24/23.98) | ||
| 1080p(60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF) | ||
| Power Consumption | ≤6W | |
| Input Voltage | DC 7~ 18V | |
| storage Temperature | -20 ~ 65℃ | |
| workinging Temperature | -10 ~ 55℃ | |
| Install Way | 1/4"-20 Thread Socket(All 4 Sides) | |
| Unit Size | 188.4L × 134H × 34.2D(mm) | |
| Unit Weight | 520g | |

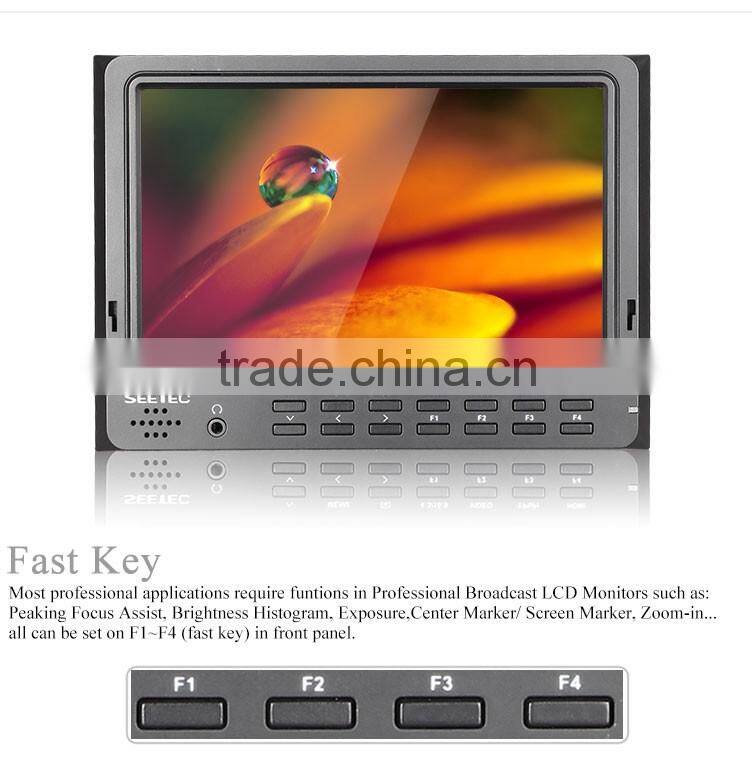

Daisy-Chain Live Displays
| *Peaking Focus Assist(1.Red highlight over parts of the image in focus,2.Red highlight over parts of the monochrome image in focus) |

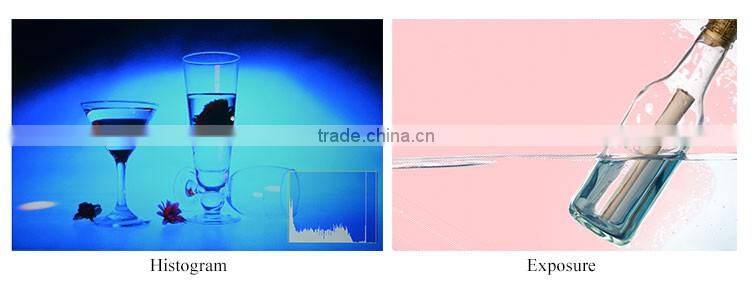

| *Exposure(Zebra) |
| *Histogram |

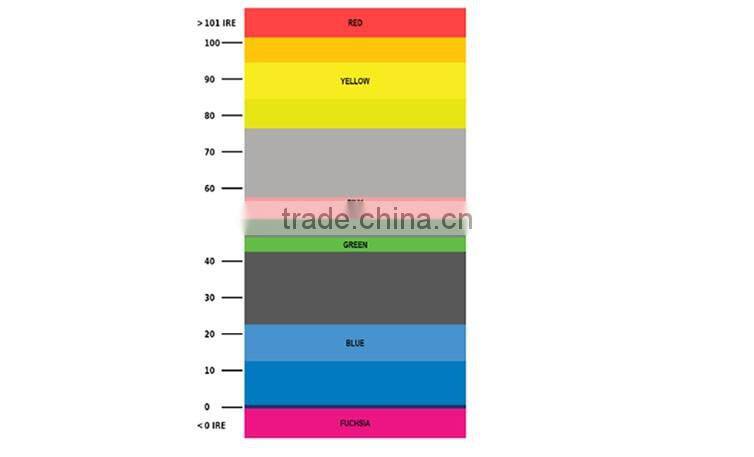

| *False Colors |
| *Camera 5D II Mode |
| *Check Field:(Red,Green,Blue,Mono) |
| *Image Flip (H, V, H/V) |

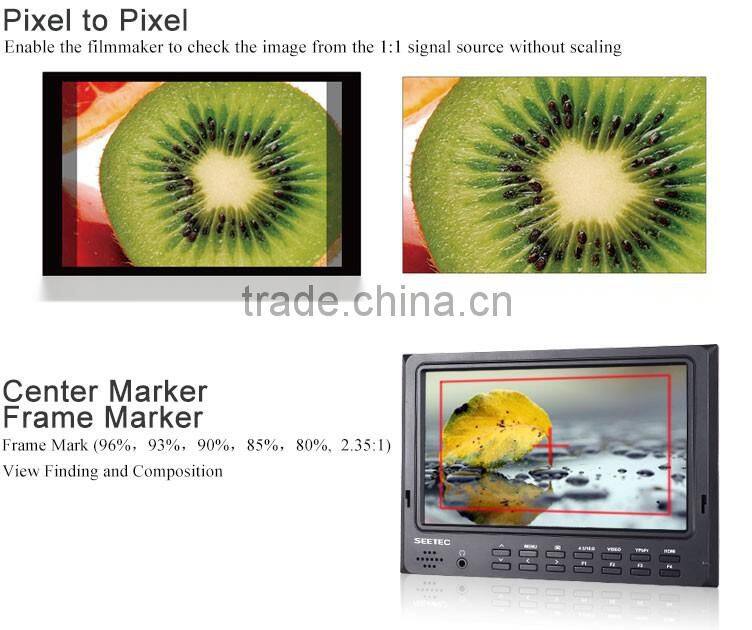

| *ScreenMarker (80%,85%,90%,93%,96%,2.35:1) |
| *Centre Marker |
| *4:3&16:9 image adjustable |
| *Pixel-to-Pixel |
| *Image Freeze |
| *Front Earphone Jack |
Gift&neutral box 10 pcs/carton
Delivery Information:
SEETEC strives to get all orders out as quickly as possible after QC Dept fully test them!
Shipping Method:
By Express: Fedex,DHL,EMS,TNT,UPS,
By Logistics: by air&sea
Shipping Time:
From Monday to Saturday 8:00am-17:30pm
Shipping Address:
.If by paypal, Please note items will only be shipped to verified users with confirmed shipping addresses
.If by T/T, shipping address as communicate
1.Powerfull Research&Development Experience
2.OEM&ODM Ability
3.Strict QC TEST Control
4.EASY & FAST Communicate
5.Responsible After Service
SEETEC designs and manufactures small HD LCD monitors. Products cover on-camera LCD field monitor, VGA/HDMI/HD-SDI LCD monior, LCD touchscreen monitor,Industril PC etc.
Our products are finely engineered to ease of use, maximum portability, dependability and durability. We make products at the finest quality you can find in the video and photography field.
SEETEC R&D core team leaders are composed by a dozen senior technical engineers have years of experience. They ensure our products are innovative and consistently push the boundaries of both technology and design.
We listen to every customer, and take care of their feedback and advices. It is a good way to improve our products and service. Our mission is to develop creative products to customers with a good experience.
We have also several years experience in OEM & ODM orders, and we can meet a variety of customized requirements of customers worldwide. If you have any interest or advice, please feel free to contact us.
