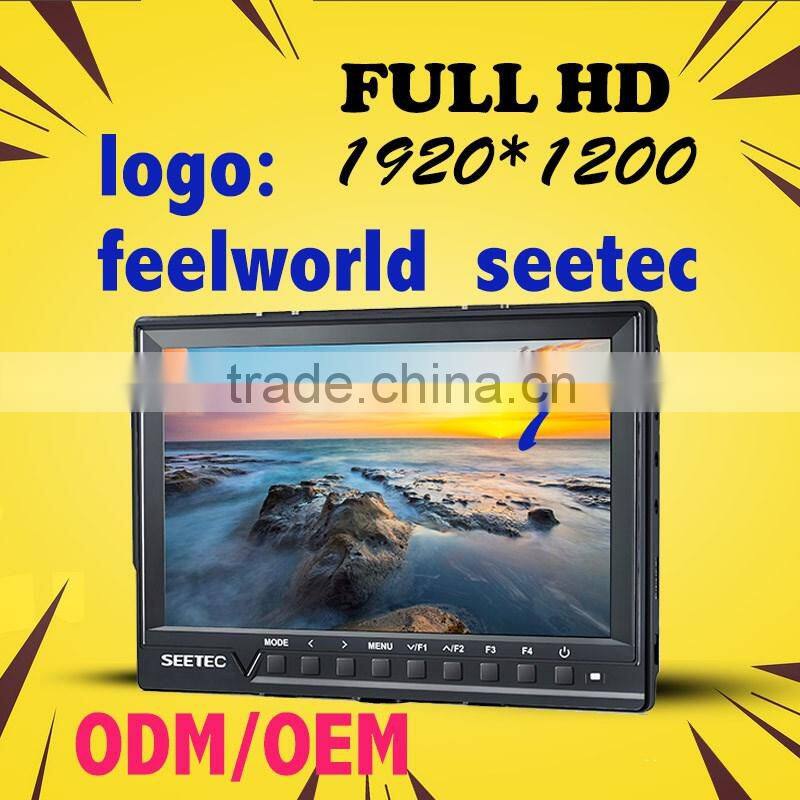

7" Ultra-thin IPS panel resolution 1920x1200 Full HD on-camera HDMI LCD Monitor
Description | 7" Ultra-thin IPS 1920x1200 Full HD on-camera Monitor HDMI with Histogram, Focus Assist |
Model | ST-K7 |
Screen size | 7" |
Resolution | 1920x1200 pixels |
Dot pitch | 0.07875 (H) x 0.07875 (W) (mm) |
Aspect Ratio | 16:10 |
Brightness | 450cd/m2 |
Contrast | 1200:1 |
Backlight | LED |
Viewing Angle | 80°/80°(L/R) 80°/80°(U/D) |
Inputs | HDMI,AV |
Outputs | OSD Controller |
Audio | Stereo Headphone,Speaker(built-in) |
HDMI Support Format | 480i/576i/480p/576p |
| 1080i (60/59.94/50) |
| 720p (60/59.94/50/30/29/25/24/23.98) |
| 1080p(60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF) |
Power Consumption | ≤ 8W |
Input Voltage | DC7 ~24V |
Power Connector | DC |
Operating Temperature | -20℃~55℃ |
Storage Temperature | -30℃~65℃ |
Install Way | 1/4"-20 Thread Socket (bottom) |
Unit Size | 176L x 130H x 17D (mm) |
Unit Weight | 270g / 370g (W/ Sunshade) |
*Histogram | *Pixel to Pixel |
*Focus Assist ( has High-Low level to adjust; Red, Yellow, Blue, White four color optional highlight over parts of the image in focus) | *Center Marker |
| *Safe Area(80%,85%,90%,93%,96%) |
*False Color | *Marker Type(16:9,4:3,2.35:1,1.85:1) |
*Zebra Exposure(0-100IRE adjustable) | *Marker Color(Red,Green,Blue,White,Black, Cyan,Purple,Yellow) |
*Nine Grid (Zoom one of the images to realize the full screen) | *Check Field(Gray/Red/Green/Blue) |
*Embedded audio meter | *Image Flip (H, V, H/V) |
*Camera Mode | *Image Freeze |
*Scan Mode(Auto,Over Scan, Full Screen) | *Color Tepm. Adjustment |
*Zoom(Auto,4x,9x,16x) |
|
*Anamorphic mode(1.3x,2.0x,2.0x mag) |
