Automatic Hot Melt Glue Labeling Machine
One. Generally Description:
This in-line hot melt glue labeler provides stable labeling performance. Speed up to 6000 - 7000 bottles per hour, and easy change parts for variety of specifications. Suitable for OPP labels, on PET, HDPE round bottles. No glue jam as other spray system, the machine use easier glue-trans system and label cutting device, which makes the machine working stable and with good price.
Two. Key Features:
l Cost saving and environment protection
l Servo system with high precision
l Vacuum system without friction and static
l Bottle feed-in smoothly by conveyor
l Easy to operate with HMI friendly
l Labeling system adopt wheeling design
l Automatic pushing bottle system is convenient for bottle feed in-out
l Labeling speed up to 100 BPM
l Sensor checking system for bottle without labeling(Optional)
Three. Specifications:
Labeling Speed ( 550ML) |
50-120 bottle/minute |
Bottle diameter |
55-100mm |
Bottle height |
150-350mm |
Label length |
200-500mm |
Label material |
PP, PE,OPP,BOPP |
Precision |
± 2 mm |
Power source & consumption |
6KW, 380v, three phase, 50-60HZ(Optional) |
Dimensions |
2200mm×1600mm×1800 mm ( L × W × H ) |
Weight |
800kg |
Working direction |
Left → Right or Right→Left (Optional) |
Industry Type(s)
l Nutraceuticals
l Pharmaceuticals
l Food & beverage

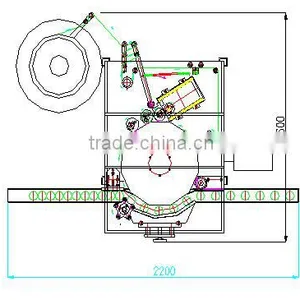

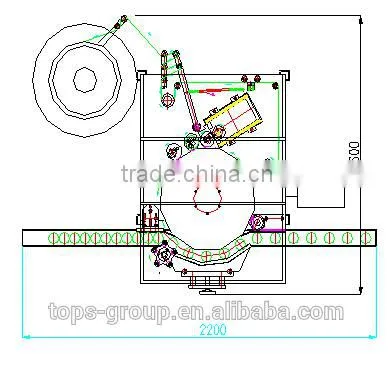

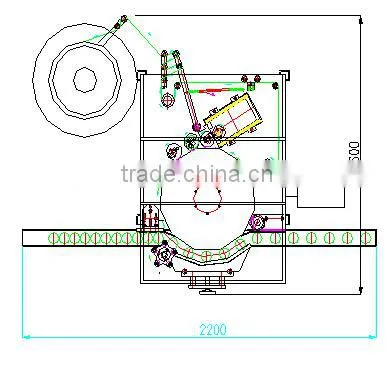

Front view Top view
Samples:
