Full Automatic Ruler Silk Screen Printing Machine With UV Dryer Machine GW-RUL-A

Full Automatic Ruler Silk Screen Printing Machine With UV Dryer Machine GW-RUL-A photo-1

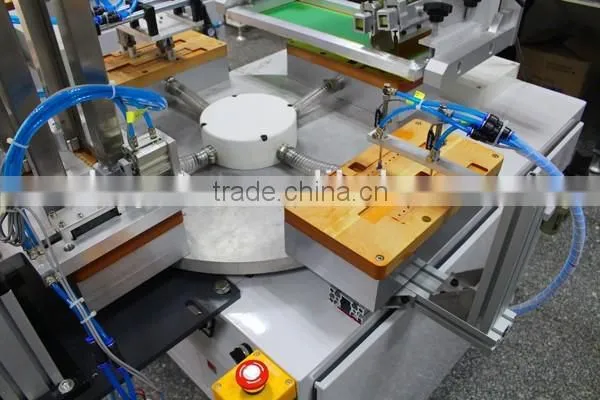

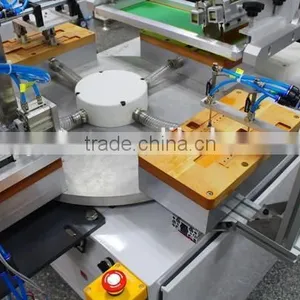

Full Automatic Ruler Silk Screen Printing Machine With UV Dryer Machine GW-RUL-A photo-2

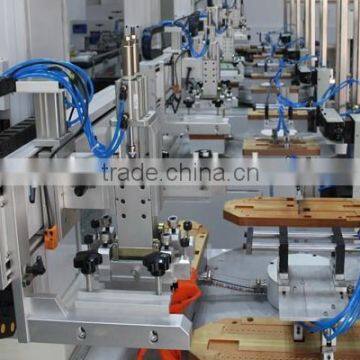

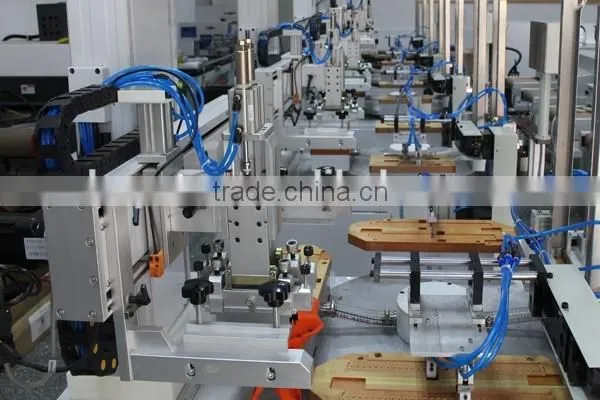

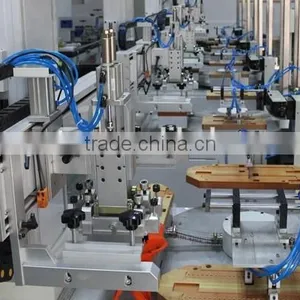

Full Automatic Ruler Silk Screen Printing Machine With UV Dryer Machine GW-RUL-A photo-3

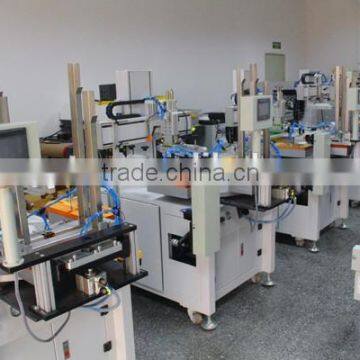

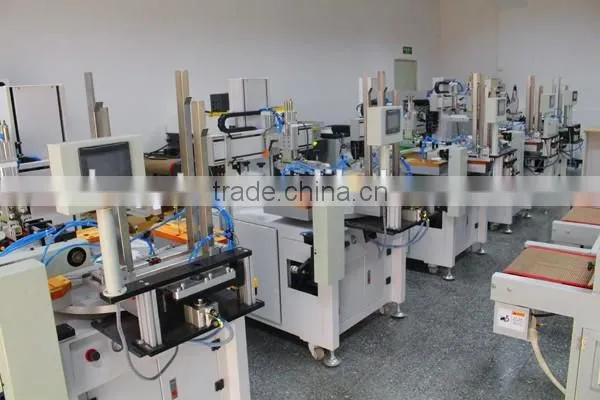

Full Automatic Ruler Silk Screen Printing Machine With UV Dryer Machine GW-RUL-A photo-4

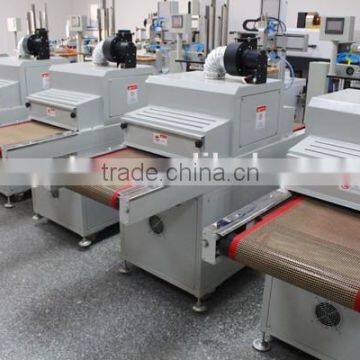

Full Automatic Ruler Silk Screen Printing Machine With UV Dryer Machine GW-RUL-A photo-5
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Guangdong, China
Brand Name:
Hoystar
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangdong China(Mainland)
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Guangdong, China
Brand Name Hoystar
Model Number GW-RUL-A
Usage Label Printer, Other, Label Printer, Plastic Ruler Printer
Automatic Grade Automatic
Voltage 220V/380V
Dimensions(L*W*H) 2400*1200*1470mm
Weight 560KG
Certification CE
Warranty one year
After-sales Service Provided Engineers available to service machinery overseas

Full automatic ruler silk screen printing machine with UV dryer machine GW-RUL-A

Application

plastic ruler screen printing machine is special designed for printing stationery ruler with high speed and automatic. Building up printing and conveying system by high precision servo motor and cam divider to finish printing automatically, reduce labor, improving efficiency. The printing speed can be up to 2000pcs/hr, suitable for printing rulers within 30cm.



Features

 1. Fully automatic, no need person to operate

2. Locating automatically to keep printing precision

3. No product without printing system, keep printing stable

4. High and strong vacuum system, keep printing precision

5. UV dryer or high temperatu

6. Mitsubishi PLC (Japan) with WEINVIEW (Taiwan) touching screen control system. Digital control system, can set parameter randomly, operate easily with big function

7. The four angle of screen frame holder can be adjusted, keep the balance between screen frame and worktable, also make sure the layer of printing ink is even

8. Printing angle, printing pressure and screen distance are easy to set. The change of squeegee and flood bar is controlled by precision guide, keeping the vertical precision, working smoothly

 9. With emergency switch to keep safe and stable

10. Locating several workstations by Taiwan precision rotary locating with stable, fast, improving efficiency



Technical Parameter

Max.printing area:200*300mm

Max.printing speed:2500PCS/Hr

Worktable size:250*450mm

Max.frame size:300*500mm

Left and right stroke:350mm

Up and down stroke:100mm

Disc size: 600mm

Workpiece max.height: 50mm

Power:220V 50-60Hz

Machine size:  2400*1200*1470mm

Weight:560KG

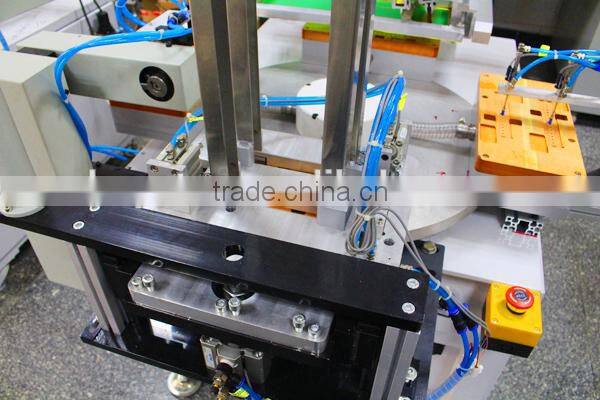

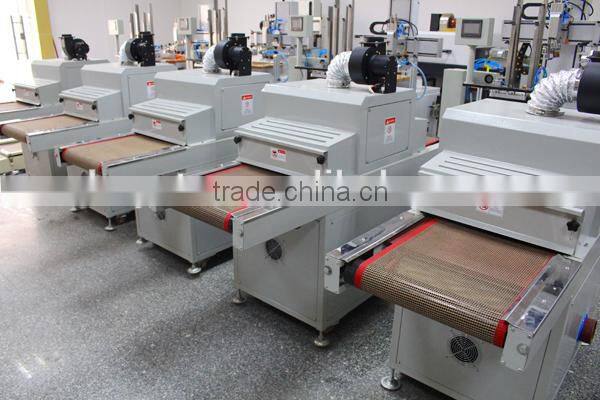

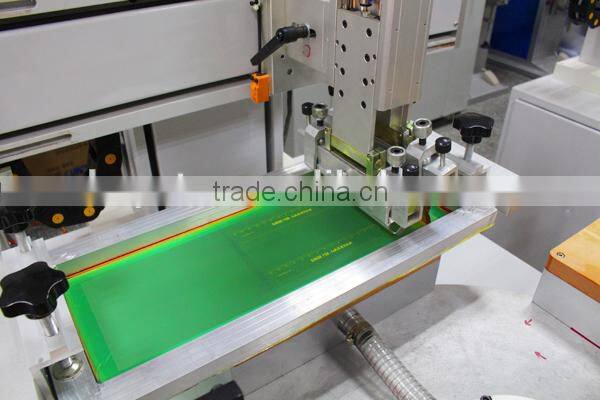

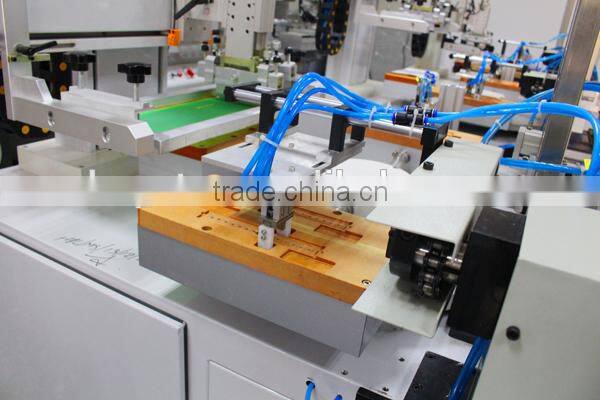

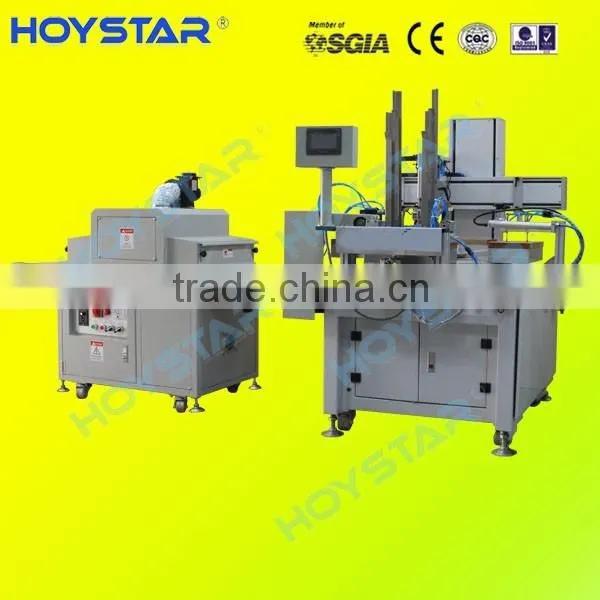

Machine pictures

Full automatic ruler silk screen printing machine with UV dryer machine GW-RUL-A



Full automatic ruler silk screen printing machine with UV dryer machine GW-RUL-A



Full automatic ruler silk screen printing machine with UV dryer machine GW-RUL-A



Full automatic ruler silk screen printing machine with UV dryer machine GW-RUL-A



Full automatic ruler silk screen printing machine with UV dryer machine GW-RUL-A



Printing samples

Full automatic ruler silk screen printing machine with UV dryer machine GW-RUL-A



Full automatic ruler silk screen printing machine with UV dryer machine GW-RUL-A
