Product Name: AC driving piezo buzzer
Key Words
Piezo buzzer with circuit built in
Piezoelectric Buzzer
Active buzzer
Piezoelectronic transducer
Piezo Sounder (External / Self Drive )
Piezo Buzzer ( With Circuit Built in)
Piezo Alarm Siren
Piezo Diaphragm
Piezo Buzzer
Magnetic Buzzer
Piezo Atomizer
Surface Mount Buzzer
Ultrasonic Sensor
Mirco speaker
Piezo Ultrasonic Transducer
Description
Tone Nature: Continuous
Min sound output at 10cm 100dB
Rated Voltage : 12VDC
Operating Voltage: 3-20 VDC
Max. Consumption: 15mA
Case material: ABS
Main feature of smd piezo buzzer
- small size,have piezo and magnetic type
- side opening for sound emission
- high sound output
Application
Application for smd piezo buzzer
- Portable device, Test equipment
- Digital camera, Data collection
-Security system
External-driven Piezo Telephone Ringer
|
Type
|
Size
|
Resonant Frequency (KHz)
|
Min sound pressure lovel (dB)
|
Voltage(V)
|
SLPR-1340 |
12.5×6.8 |
4.0±0.5 |
80dB/10cm |
12 |
SLPR-1410 |
14.1×7 |
4.0±0.5 |
80dB/10cm |
12 |
SLPR-1710 |
16.3×3.9 |
4.0±0.5 |
80dB/10cm |
12 |
SLPR-2310A |
23×4.0 |
4.0±0.5 |
80dB/30cm |
12 |
SLPR-2310B |
23×4.6 |
4.0±0.5 |
80dB/30cm |
12 |
SLPR-2310C |
23×5 |
4.8±0.5 |
80dB/30cm |
6 |
SLPR-3010A |
30×5 |
1.3±0.5 |
75dB/30cm |
12 |
SLPR-3010B |
30×5.7 |
1.3±0.5 |
75dB/30cm |
12 |
SLPR-3010C |
30×5.7 |
3.2±0.5 |
80dB/30cm |
6 |
SLPR-3510A |
34.5×9 |
1.A0±0.5 |
78dB/30cm |
12 |
SLPR-3510B |
34.5×9 |
1.0±0.5 |
78dB/30cm |
12 |
SLPR-3510C |
34.5×5 |
4.0±0.5 |
85dB/10cm |
12 |
SLPR-3510D |
34.5×9 |
2.2±0.5 |
75dB/10cm |
12 |
SLPR-3510E |
35×2 |
1.3±0.5 |
75dB/10cm |
12 |
SLPR-4410A |
44×14 |
1.0±0.5 |
78dB/30cm |
12 |
SLPR-4410B |
44-0.2×14 |
0.8±0.5 |
78dB/30cm |
12 |
SLPR-4210A |
42-0.2×16 |
2.8±0.5 |
85dB/30cm |
12 |
SLPR-4210B |
42-0.2×16 |
2.8±0.5 |
85dB/30cm |
12 |
SLPR-4610 |
45.3×4 |
1.2±0.5 |
85dB/30cm |
12 |
SLPR-5010 |
50×2 |
1.0±0.5 |
75dB/10cm |
12 |
SLPR-5020 |
50×9.5 |
0.9±0.5 |
80dB/30cm |
12 |
External-driven Piezo Transducer
|
Type
|
Size
|
Resonant Frequency (KHz)
|
Min sound pressure lovel (dB)
|
Voltage(V)
|
SLPT-1340 |
12.7×6.8 |
4.0±0.5 |
80dB/10cm |
12 |
SLPT-1410A |
14.1×7 |
4.0±0.5 |
80dB/10cm |
12 |
SLPT-1410B |
14×7 |
4.0±0.5 |
80dB/10cm |
12 |
SLPT-1710A |
16.8×8.2 |
4.0±0.5 |
85dB/10cm |
12 |
SLPT-1710B |
16.8×7 |
4.0±0.5 |
80dB/10cm |
12 |
SLPT-2210 |
22-0.2×7 |
4.0±0.5 |
88dB/10cm |
12 |
SLPT-2310A |
(22±0.4)×(7.5±0.2) |
2.0±0.5 |
75dB/10cm |
3 |
SLPT-2310B |
24×11 |
3.8±0.5 |
80dB/30cm |
9 |
SLPT-2510 |
24.7×7 |
6.8±0.5 |
90dB/10cm |
12 |
SLPT-3010A |
30×9 |
3.6±0.5 |
85dB/10cm |
12 |
SLPT-3010B |
29.5×10 |
2.7±0.5 |
82dB/10cm |
12 |
SLPT-3510A |
34.5×8.5 |
1.0±0.5 |
75dB/30cm |
12 |
SLPT-3510B |
34.5×8.5 |
1.0±0.5 |
75dB/30cm |
12 |
SLPT-4010 |
40×19.5 |
3.2±0.5 |
90dB/30cm |
9 |
SLPT-4410 |
44×14 |
1.0±0.5 |
80dB/30cm |
12 |
Magnetic transducer (without driving circuit)
|
Type
|
Size
|
Resonant Frequency (KHz)
|
Min sound pressure lovel (dB)
|
Voltage(V)
|
SLPM-09A |
9×5.5 |
2731Hz |
85dB/10cm |
1.5 |
SLPM-09B |
9.6×5 |
2731Hz |
85dB/10cm |
1.5 |
SLPM-09C |
9×4.5 |
2731Hz |
85dB/10cm |
1.5 |
SLPM-12(01,06,12)A |
12-0.2×9 |
2400Hz |
80dB/10cm 85dB/10cm 85dB/10cm |
1.5 5 12 |
SLPM-12(01,06,12)B |
(12-0.2)×(9.0±0.2) |
2400Hz |
80dB/10cm 85dB/10cm 85dB/10cm |
1.5 5 12 |
SLPM-16(01,06,12) |
(16-0.2)×(14-0.5) |
2048Hz |
80dB/10cm 85dB/10cm 85dB/10cm |
1.5 5 12 |
SLPM-1212(01,06,12) |
(12.8±0.2)×(7.1±0.2) |
2400Hz |
80dB/10cm 85dB/10cm 85dB/10cm |
1.5 5 12 |
SLPM-88(01,03) |
(8.8±0.2)×(3.2±0.2) |
2350Hz 2730Hz 2730Hz |
80dB/10cm 80dB/10cm 80dB/10cm |
1.5 1.5 3 |
SLPM-18(06,12) |
(18±0.2)×(10.4±0.2) |
2400Hz |
85dB/10cm |
6 12 |
SLPM-25(06,12) |
(24.8±0.3)×(12.2±0.2) |
1000Hz |
90dB/10cm |
6 12 |
SLPM-04B |
(12-0.2)×(7.5-0.3) |
2731Hz |
90dB/10cm |
1.5 |
SLPM-04F |
(12-0.2)×(6.0-0.3) |
2731Hz |
90dB/10cm |
1.5 |
SLP12-P(1,2) |
(12-0.2)×(8.5±0.2) |
2048Hz |
85dB/10cm 80dB/10cm |
1.5 1.5 |
SLP12-W(1,2) |
(12-0.2)×(8.5±0.2) |
2048Hz |
85dB/10cm 80dB/10cm |
1.5 1.5 |
SLP12-105A |
(12-0.2)×(5.4±0.2) |
2048Hz |
75dB/10cm |
1.5 |
SLP12-105B |
(12-0.2)×(5.4±0.2) |
2048Hz |
75dB/10cm |
1.5 |
SLP12-105C |
(12-0.2)×(6.0±0.2) |
2048Hz |
75dB/10cm |
1.5 |
SLPX-09(06) |
9×5.5 |
2.5±0.5KHz |
85dB/10cm |
6 |
SLPX-12(01,06,12)A |
(12-0.2)×9.5 |
2300±300Hz 2300±300Hz 2300±300Hz |
75dB/10cm 85dB/10cm 85dB/10cm |
1.5 6 12 |
SLPX-12(01,06,12)B |
12×7.5 |
3100±500Hz 3100±500Hz 3100±500Hz |
85dB/10cm 85dB/10cm 85dB/10cm |
1.5 6 12 |
SLPX-12(01,06,12)C |
(12-0.2)×(9.5-0.5) |
|
85dB/10cm 85dB/10cm 85dB/10cm |
1.5 6 12 |
SLPX-12(01,06,12)D |
(12-0.2)×(9.5-0.5) |
2300±300Hz 2300±300Hz 2300±300Hz |
85dB/10cm 85dB/10cm 85dB/10cm |
1.5 6 12 |
SLPX-12(01,06,12)E |
12×7.5 |
2300±500Hz 2300±500Hz 2300±500Hz |
85dB/10cm 85dB/10cm 85dB/10cm |
1.5 6 12 |
SLPX-16(01,06,12) |
16×14 |
2300±300Hz 2300±300Hz 2300±300Hz |
80dB/10cm 85dB/10cm 85dB/10cm |
1.5 5 12 |
Piezo Audio Indicator (with driving circuit)
|
Type
|
Size
|
Resonant Frequency (KHz)
|
Min sound pressure lovel (dB)
|
Voltage(V)
|
SLPI-1410 |
14.1×7.8 |
4.0±0.5KHz |
85dB/10cm |
12 |
SLPI-1610 |
15.4×13.9 |
4.0±0.5KHz |
85dB/10cm |
12 |
SLPI-2310TA |
23×19 |
3.3±0.5KHz |
88dB/30cm |
12 |
SLPI-2310LA |
23×19 |
3.3±0.5KHz |
88dB/30cm |
12 |
SLPI-2310TB |
23×16 |
3.3±0.5KHz |
88dB/30cm |
12 |
SLPI-2310LB |
23×16 |
3.3±0.5KHz |
88dB/30cm |
12 |
SLPI-2310LC |
(22.7±0.3)×(12.1±0.2) |
3.3±0.5KHz |
88dB/30cm |
12 |
SLPI-2610T |
23×9.8 |
3.5±0.5KHz |
85dB/30cm |
12 |
SLPI-2610L |
23×10 |
3.5±0.5KHz |
85dB/30cm |
12 |
SLPI-2910 |
29.5×24.5 |
3.7±0.5KHz |
90dB/30cm |
12 |
SLPI-3010 |
30×20 |
3.9±0.5KHz |
90dB/30cm |
12 |
SLPI-3210 |
32×14 |
3.7±0.5KHz |
90dB/30cm |
12 |
SLPI-4210A |
(50±0.1)×(16-0.2) |
2.8±0.5KHz |
90dB/30cm |
12 |
SLPI-4210B |
(50±0.1)×(16-0.2) |
2.8±0.5KHz |
90dB/30cm |
12 |
SLPI-4210C |
(50±0.1)×(16-0.2) |
2.8±0.5KHz |
90dB/30cm |
12 |
SLPI-4010T |
(40±0.1)×20 |
3.2±0.5KHz |
100dB/30cm |
12 |
SLPI-4010L |
(40±0.1)×20 |
3.2±0.5KHz |
100dB/30cm |
12 |
SLPI-4310 |
43×33 |
2.9±0.5KHz |
80dB/60cm |
12 |
SLPMB-2310 |
33.5×15 |
400±100Hz |
75dB/20cm |
12 |
SLPMB-2610 |
26×17.6 |
400±100Hz |
75dB/20cm |
12 |
SLPS-4210 |
41.8×18 |
2.8±0.5KHz |
98dB/30cm |
12 |
SLPS-4510 |
|
|
100dB/30cm |
12 |
SLPS-5210 |
(52-0.2)×49 |
|
105dB/100cm |
12 |
SLPI-4510 |
45×26 |
3.2±0.5KHz |
100dB/60cm |
12 |

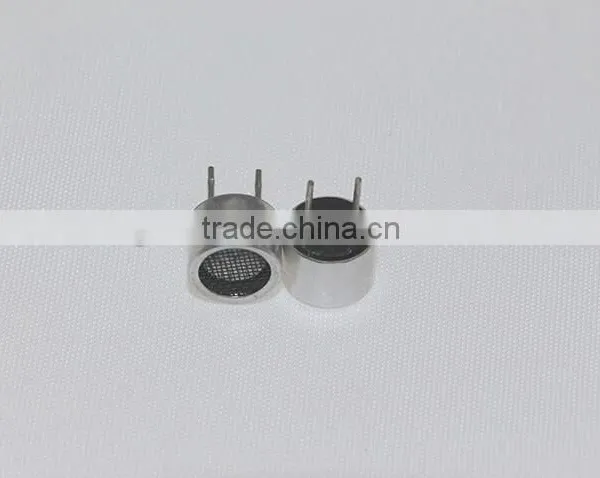

Uitrasonic sensor
|
Type
|
Size
|
Resonant Frequency (KHz)
|
Min sound pressure lovel (dB)
|
SLPC-10A |
10×7 |
25±2KHz |
≥110dB/50cm |
SLPC-10B |
10×7 |
40±2KHz |
≥110dB/50cm |
SLPC-12A |
12×9.5 |
25±2KHz |
≥110dB/50cm |
SLPC-12B |
12×9.5 |
40±2KHz |
≥110dB/50cm |
SLPC-16A |
16×10 |
25±2KHz |
≥110dB/50cm |
SLPC-16B |
16×10 |
40±2KHz |
≥110dB/50cm |
SLPC-18A |
18×12 |
40±2KHz |
≥100dB/50cm |
SLPC-18B |
18×14 |
40±2KHz |
≥100dB/50cm |
SLPC-15A |
15×10 |
40±2KHz |
≥100dB/50cm |
SLPC-3825 |
38×12.4 |
2.5-50KHz |
≥100dB |
SLPC-3840 |
38×12.4 |
2.5-60KHz |
≥90dB |
SLPC-5120 |
61.5×18 |
2.5-60KHz |
≥100dB |
Speaker And Receiver
|
Type
|
Size
|
Resonant Frequency (KHz)
|
Min sound pressure lovel (dB)
|
SLPC-10A |
10×7 |
25±2KHz |
≥110dB/50cm |
SLPC-10B |
10×7 |
40±2KHz |
≥110dB/50cm |
SLPC-12A |
12×9.5 |
25±2KHz |
≥110dB/50cm |
SLPC-12B |
12×9.5 |
40±2KHz |
≥110dB/50cm |
SLPC-16A |
16×10 |
25±2KHz |
≥110dB/50cm |
SLPC-16B |
16×10 |
40±2KHz |
≥110dB/50cm |
SLPC-18A |
18×12 |
40±2KHz |
≥100dB/50cm |
SLPC-18B |
18×14 |
40±2KHz |
≥100dB/50cm |
SLPC-15A |
15×10 |
40±2KHz |
≥100dB/50cm |
SLPC-3825 |
38×12.4 |
2.5-50KHz |
≥100dB |
SLPC-3840 |
38×12.4 |
2.5-60KHz |
≥90dB |
SLPC-5120 |
61.5×18 |
2.5-60KHz |
≥100dB |
