3/4 Automatic Screen Printing Machine for Stickers

3/4 Automatic Screen Printing Machine for Stickers thumbnail-1
3/4 Automatic Screen Printing Machine for Stickers thumbnail-2
3/4 Automatic Screen Printing Machine for Stickers thumbnail-3
3/4 Automatic Screen Printing Machine for Stickers thumbnail-4
3/4 Automatic Screen Printing Machine for Stickers thumbnail-5
3/4 Automatic Screen Printing Machine for Stickers thumbnail-6
3/4 Automatic Screen Printing Machine for Stickers photo-1
3/4 Automatic Screen Printing Machine for Stickers photo-2
3/4 Automatic Screen Printing Machine for Stickers photo-3
3/4 Automatic Screen Printing Machine for Stickers photo-4
3/4 Automatic Screen Printing Machine for Stickers photo-5
3/4 Automatic Screen Printing Machine for Stickers photo-6
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Guangdong, China
Brand Name:
Hoystar
Contact Supplier Request Quote Chat Now
Dongguan Hoystar Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
can be choosed
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Guangdong, China
Brand Name Hoystar
Model Number GW-6090A-UV
Usage Other, 3/4 Automatic screen printing machine for stickers
Automatic Grade Automatic
Voltage 220V or 380V
Gross Power 3.7KW
Dimensions(L*W*H) 1520*1100*1430mm
Weight 800KG
Certification CE
Warranty One year
After-sales Service Provided Engineers available to service machinery overseas

3/4 Automatic screen printing machine for stickers

Application:

It's suitable for printing kinds of flat material with thin/light feature,such as glass,aluminum sheet,metal plate,steel plate,pvc card,pet sheet,pvc sheet,paper,acrylic.....etc

Features:

1. Controlling machine by PLC programming controller
2. Auto 4-digit counter built-in,all of machine conver both produce by metal material,high quality.
3. Vertical adopting distyle constructure,screen frame up/down and printing head left and right both control by high precision electrical motor drived independently.
4. Controlling printing blade up and down by transducer system,controlling stroke by photocell eye.
6. You can be free to choose printing cycle according to your printing craftwork by printing action.
7. Manula/semi auto/full auto 3 settings up.When printing is indirect,it will be controlled by digital.
8. Machine with vacuum worktable,it can fix the product better and printing quality precision when printing
9. Unique designed machine head up and down equipment,convenient to clean scraper,blade,screen frame.
10.Double guide pole controlling screen arm for adjusting screen distance,regulated conveniently
11.Installing scramming device on work-table, it accord with safty standard.
12.Machine installed shock absorber to make working steady.

Technical Parameter:

1.Maximum printing area: 600*900mm
2.Maximum worktable area: 700*1100mm
3.Maximum screen frame size: 900*1300mm
4.Maximum printing thickness: 0-20mm
5.Maximum printing speed: 900pcs/hour
6.Air consumption: 0.5-0.7 Mpa
7.Power: 380V/3.7KW
8.Position accuracy: 0.05mm
9.Machine size: 1520*1100*1430mm
10.Package size: 1700*1200*1900mm Weight: 800KG

Machine pictures



3/4 Automatic screen printing machine for stickers

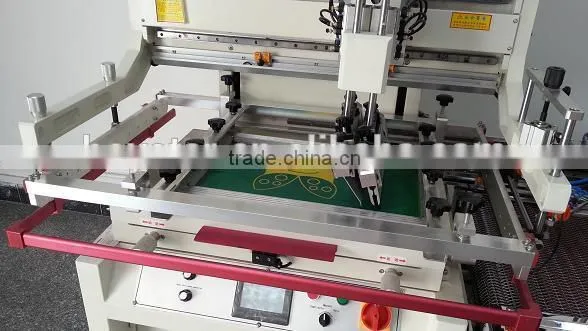

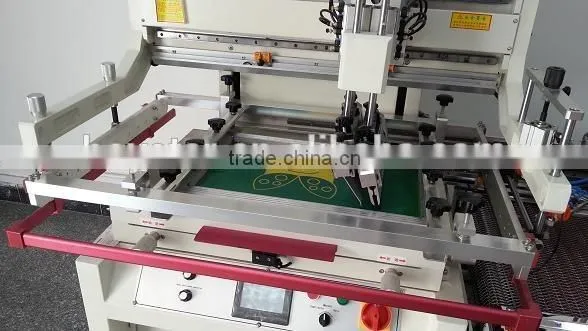

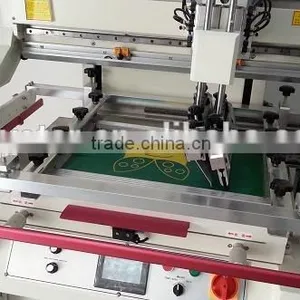

Silk screen printing machine



3/4 Automatic screen printing machine for stickers

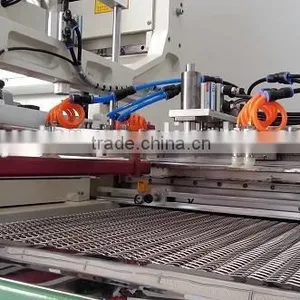

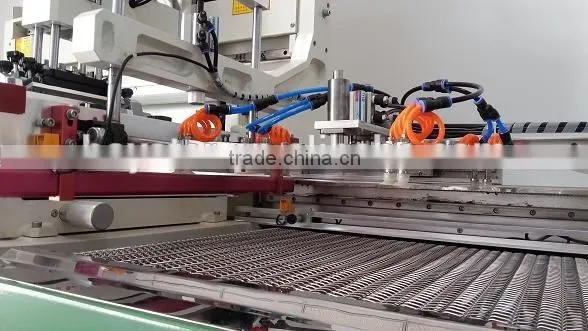

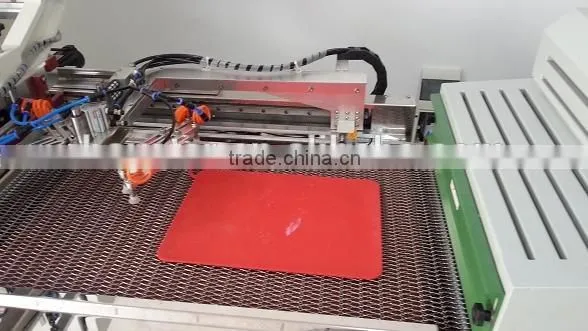

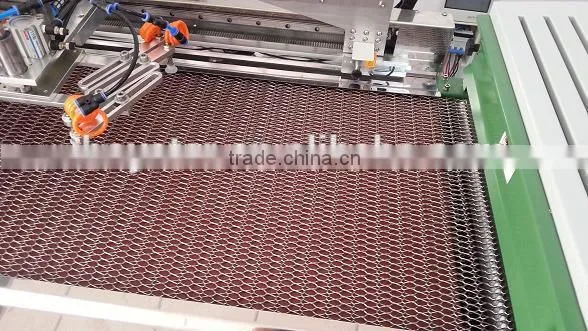

Automatic unloading robot system



3/4 Automatic screen printing machine for stickers

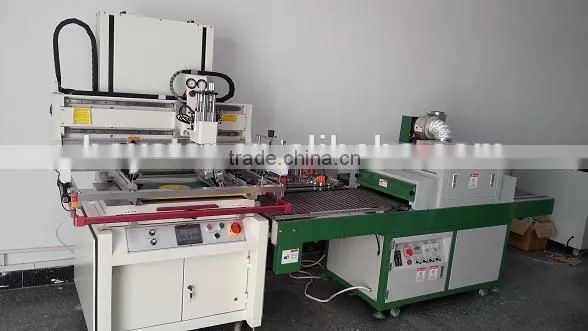

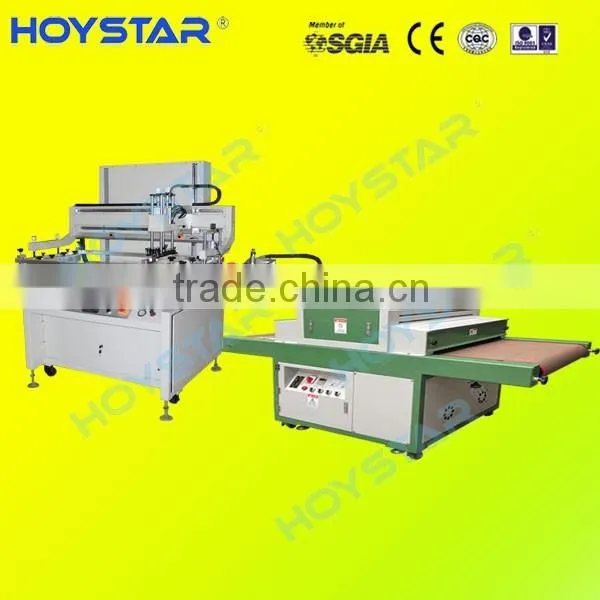

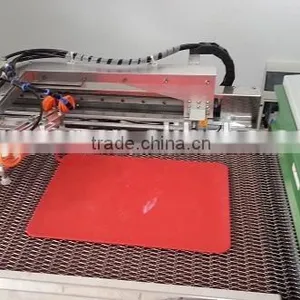

Automatic unloading & connecting with UV curing machine



3/4 Automatic screen printing machine for stickers







3/4 Automatic screen printing machine for stickers

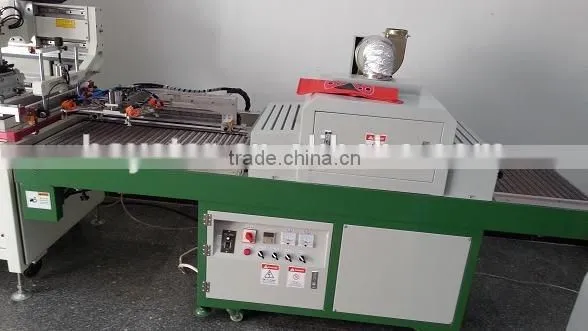

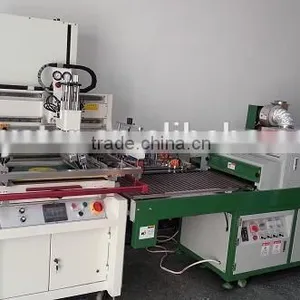

UV dryer after screen printer



3/4 Automatic screen printing machine for stickers

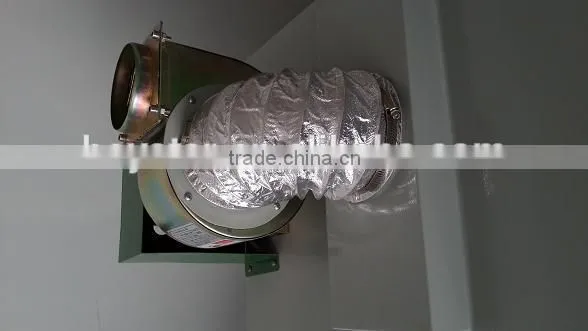

UV dryer's cool air systrem



3/4 Automatic screen printing machine for stickers

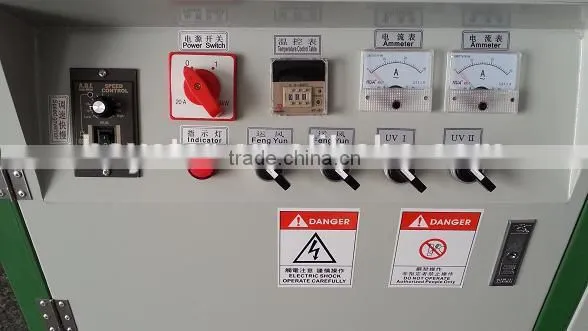

Control panel of UV curing machine



3/4 Automatic screen printing machine for stickers





Contact namecard



3/4 Automatic screen printing machine for stickers
