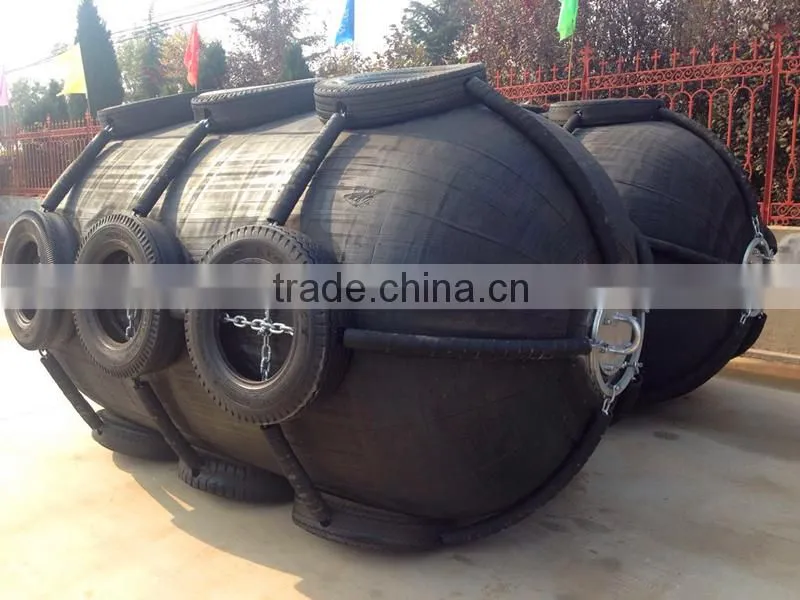

Marine Offshore Oil Tankers Yokohama Fender, Pneumatic Fender
Product Description >>>>>>>>>>>>>>>>>>>>>>>>>>>>>
You can choose the required diameter and effective length to meet your projects
(1) Diameter:from 500mm to 3300mm.
(2) Effective length:from100mm to 6500mm.
The above specifications only are our standard specifications arrange.Can be supplied customized size upon customers' request.
Nominal size
Diameter x Length | Initial Internal Pressure | Guaranteed Energy Absorption GEA | Reaction Force at GEA | Hull Pressure At GEA | Satety Valve Setting pressure | Testing Pressure | Weight of Net Type (Type I) | Weight of Sling Type (Type II) | |||
Approx Fender Body weight | Approx.Weight of Net | ||||||||||
E | R | P | Chain Net | Wire Net | Synthetic Fiber Net
| ||||||
(mm x mm) | (kNm) | (kNm) | (kN) | (kPa) | (kPa) | (kPa) | (kg) | (kg) | (kg) | (kg) | (kg) |
500 x 1000 | 50 | 6 | 64 | 132 | _ | 200 | 22 | 110 | 30 | 20 | 32 |
600 x 1000 | 50 | 8 | 74 | 126 | _ | 200 | 25 | 120 | 30 | 22 | 36 |
700 x 1500 | 50 | 17 | 137 | 135 | _ | 200 | 45 | 150 | 40 | 37 | 55 |
1000 x 1500 | 50 | 32 | 182 | 122 | _ | 200 | 73 | 200 | 80 | 51 | 98 |
1000 x 2000 | 50 | 45 | 257 | 132 | _ | 200 | 88 | 220 | 140 | 57 | 113 |
1200 x 1200 | 50 | 63 | 297 | 126 | _ | 200 | 131 | 320 | 190 | 68 | 156 |
1350 x 2500 | 50 | 102 | 427 | 130 | _ | 200 | 200 | 350 | 200 | _ | 240 |
1500 x 3000 | 50 | 153 | 579 | 132 | _ | 200 | 250 | 530 | 350 | _ | 290 |
1700 x 3000 | 50 | 191 | 639 | 128 | _ | 200 | 290 | 580 | 440 | _ | 330 |
2000 x 3500 | 50 | 308 | 875 | 128 | _ | 200 | 405 | 960 | 640 | _ | 465 |
2500 x 4000 | 50 | 663 | 1381 | 137 | 175 | 250 | 902 | 1240 | 910 | _ | 1080 |
2500 x 5500 | 50 | 943 | 2019 | 148 | 175 | 250 | 1090 | 1850 | 1160 | _ | 1320 |
3300 x 4500 | 50 | 1175 | 1884 | 130 | 175 | 250 | 1460 | 1710 | 1270 | _ | 1840 |
3300 x 6500 | 50 | 1814 | 3015 | 146 | 175 | 250 | 1870 | 2570 | 1910 | _ | 2250 |

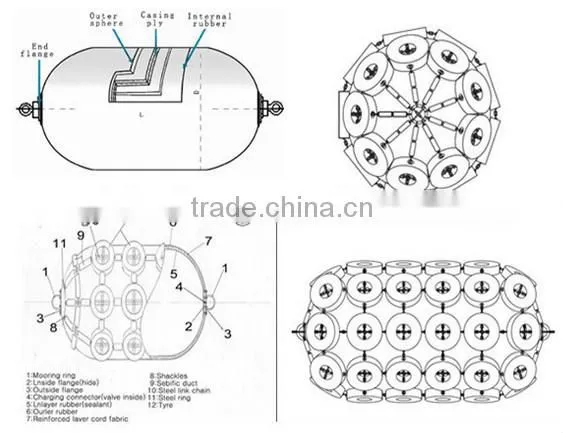

>------ Structure of yokohama fender:
>------ The advantages of yokohama fender:
1. Good elasticity, absorb the impact energy ,it won’t compression deformation under the pressure
2. Installation is very simple
3. Reasonable price and good quality
4. Environmental protection, it won't bring the pollution problems to our environment.

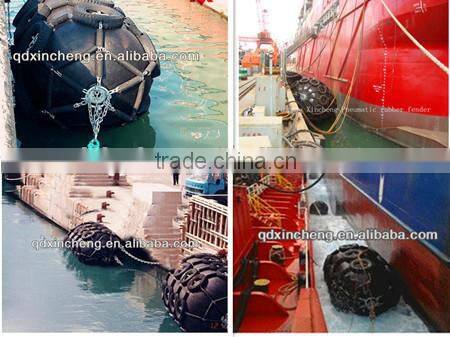

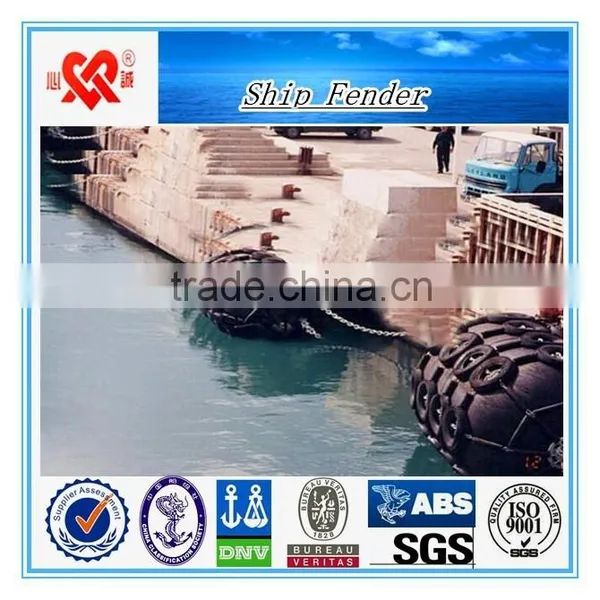

It is widely used by large tankers, LPG vessels, ocean platforms, large docks, harbor and wharfs:
>------ Detail Picture:

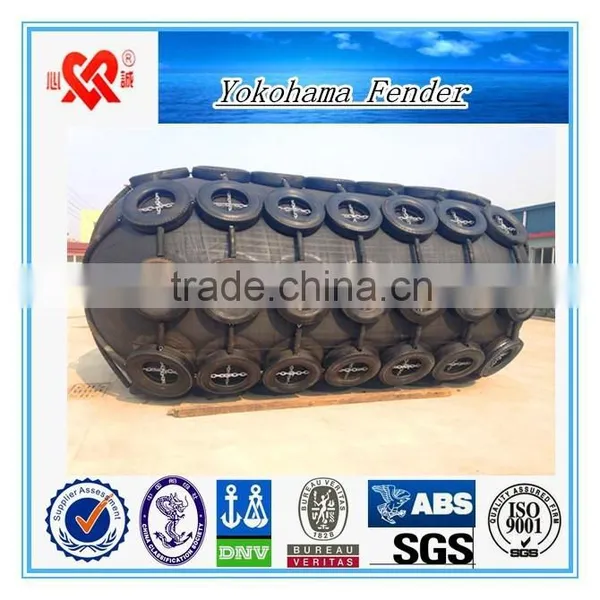

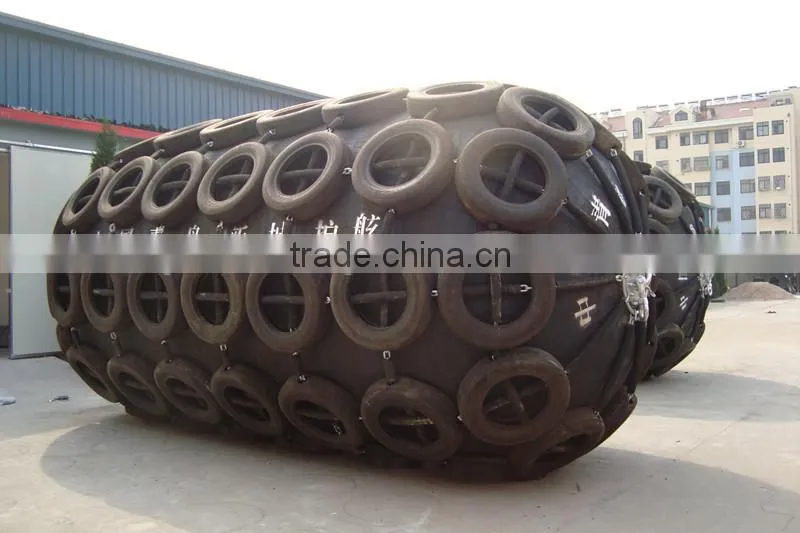

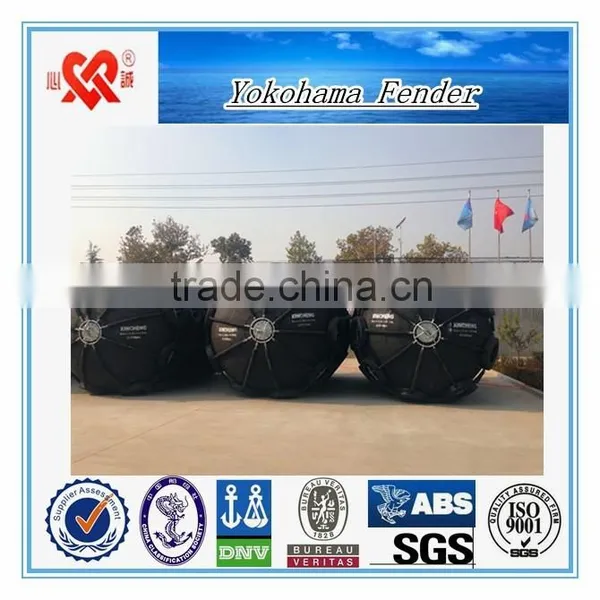

>------ The display of yokohama rubber fenders:

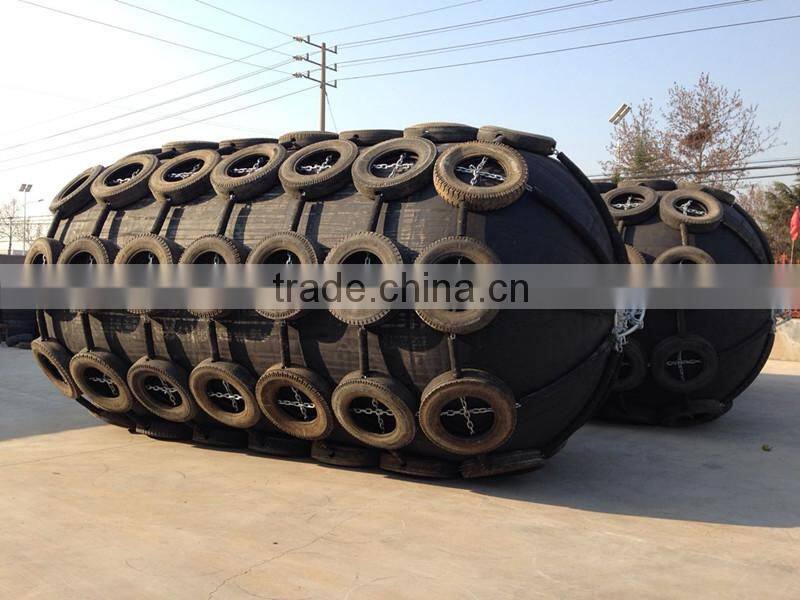

Big size:
Medium size:

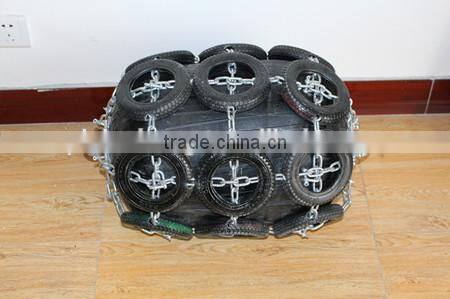

Small size:

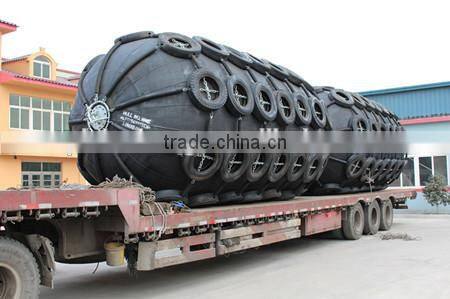

Packaging & Shipping >>>>>>>>>>>>>>>>>>>>>>>>>>>>
PACKING : 1 .Packed in Woven bags or containter . 2 .It also depends on our clients' need .
DELIVERY : Usually 7 days, it depends on order's quantity.

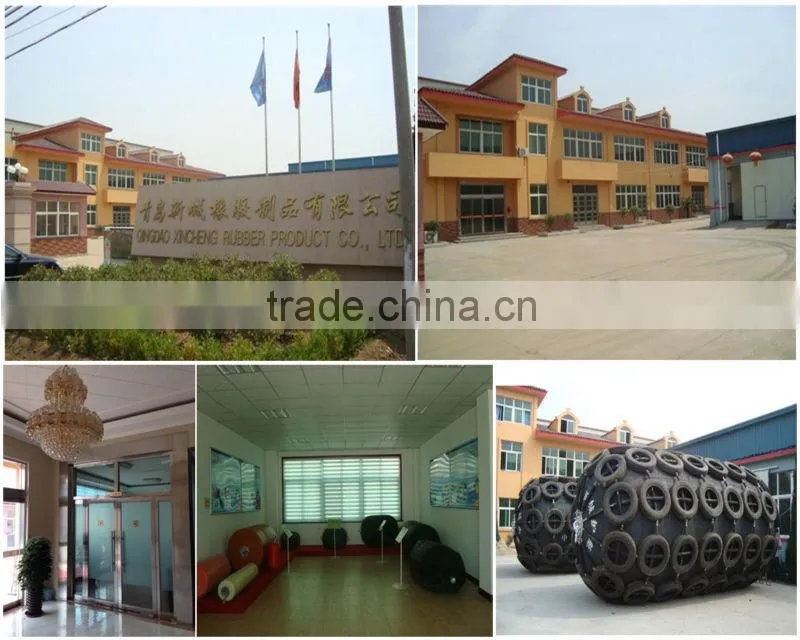

Company Information >>>>>>>>>>>>>>>>>>>>>>>>>>>>

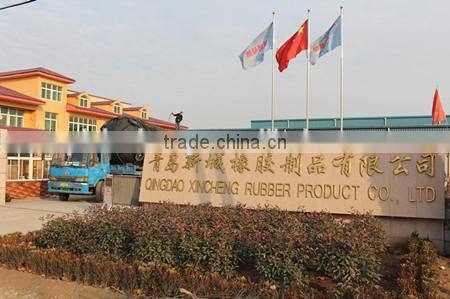

Qingdao Xincheng Rubber Products co.,ltd as a manufacturing plant, which was estabished in 1986. The Company is a production, scientific research and design,product development, technical services for the integrated enterprise.The Company is mainly produce marine rubber airbags and marine rubber fenders , which as the leading enterprise has passed the certification of CCS , ISO9001:2008, SGS, BV etc.
Since the 1986 , the Company has accumulated a lot of production experience in the field of marine rubber airbags and pneumatic rubber fenders, which has bring together a large number of professional design and production technical personnel. The Company always adhere to improve product quality and customer service.
Our Services >>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
Our produce strictly comply with ISO 17357-2002 and GB/T21482-2008
- Over 28 years fender manufacturing experience.
- Many sizes of fender stock, quick delivery.
- Tailor make different size and pattern of fenders.
- Free techical support, design, calculation and training for installation.
- We accept small order.

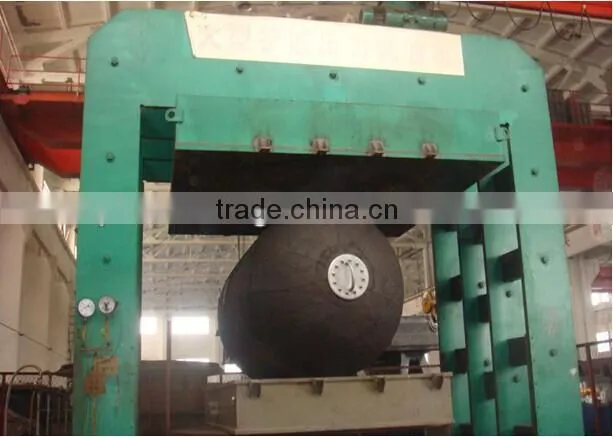

>------ Ship fenders pressure test:

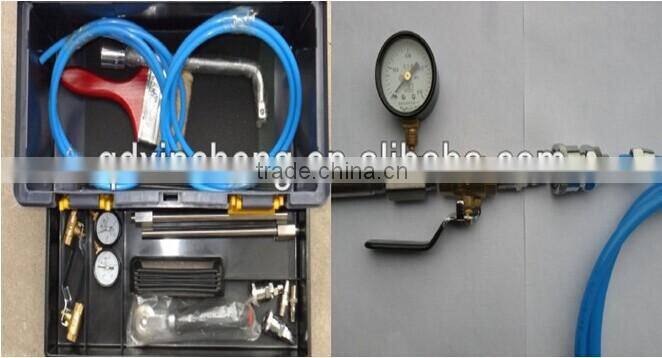

>------ The accessories of yokohama fenders:
1. Valve core.
2. A set of valve pipe.
3. Gas tube,pressure gage, repair tools and material.

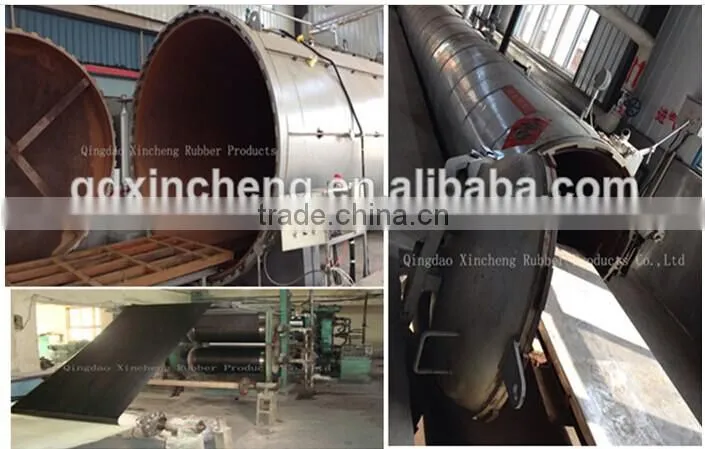

>------ Our equipments and facilities:
Our company own many professional machineries (internal mixer, rubber mixing machine, four roll rubber calender, vulcanizer and vulcanizing boiler with various specifications)
FAQ >>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>

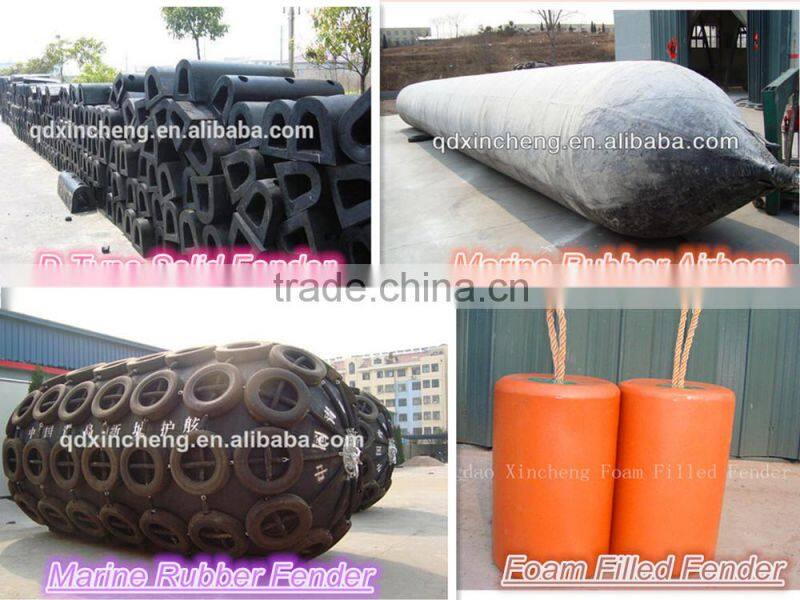

We are manufacturing with these prducts:
We are looking forward to build business with you. If you have any questions, please feel free to contact me.
