2 color automatic uv bottle silk screen printing machine

2 color automatic uv bottle silk screen printing machine

Application

Image-------high-precision pictures & words printing
Field---------container of cosmetic,medicine,food,liquid,plastic tube,shampoo...etc
Surface-----Arc,cylindrical,round/oval & other heterotype containers
Material-----compatible for plastic,glass,metal/aluminum materials..etc

Machine main part brand

⊕ Machine main motor:MOTOVARIO
⊕ PLC:OMRON
⊕ Photoeletric switch:OMRON
⊕ Touch screen:KINCO
⊕ Button switch:APT
⊕ Contactor:SCHNEIDER
⊕ Relay: OMRON
⊕ Frequency converter: PANASONIC
⊕ UV drying system:HONOVIA
⊕Pneumatic components:SMC/AIRTAC

Function & Features

⊕ Auto feeder
 ⊕ Automatic loading direction-selectionsystem
 ⊕ Auto flame treatment for container surface
 ⊕ Electrodeless variable-speed motor syst
 ⊕ Adjustable mechanical synchronous transfer system
 ⊕ Auto pre-allocation system
 ⊕ No printing while no bottle system
 ⊕ Auto UV-drying system
 ⊕ Electric countrol system:  PLC and touch screen to intelligent operation
 ⊕ New Transmission system: advanced imported motor
 ⊕ Speed converter devide & pneumatic component:  electrodeless variable-speed,synchronous transmission ,auto allocation and no-workpiece-no –printing

Technical parameter

⊕ Round printing diameter:  20mm~108mm
⊕ Round printing height:  20mm~280mm
⊕ Oval printing diameter: R20mm~R180mm
⊕ Oval printing height: 20mm~280mm
⊕ Max printing speed:  3200Pcs/Hour
⊕ Power:  220V 1Phase or 380V 3Phase 50Hz/60Hz
⊕ Rated power:  15KW 7.5KW(single station)
⊕ Air pressure:  5~8bar
⊕ Out dimension:  (2000mm*1200mm*1750mm)*2pcs
⊕ Machine weight:  2000kgs

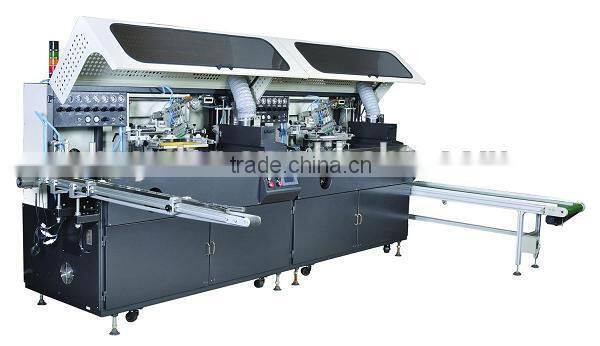

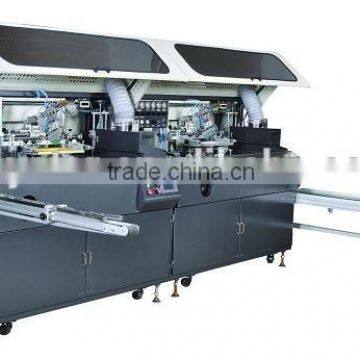

Machine pictures
