2 color rapidtag lighter pad printing equipment ink cup

Product Application

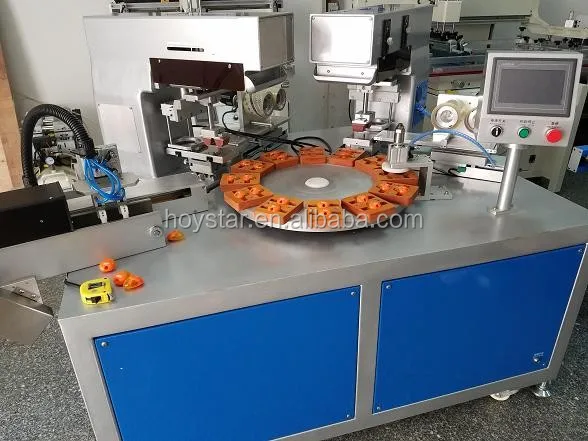

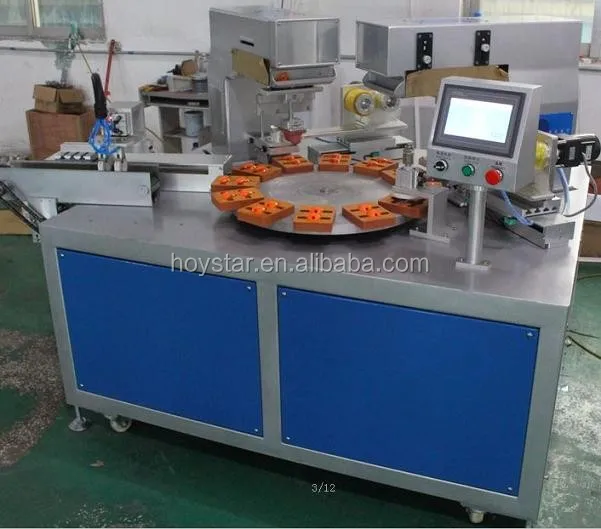

It is a rotary pad printer, conveying products by rotary type turntable. The products can be overprinted with 2 colors. Running a circle can finish one time overprint. Comparing with shuttle pad printer, it come to a high steps. It can print products with 2 color with fastly and steady.

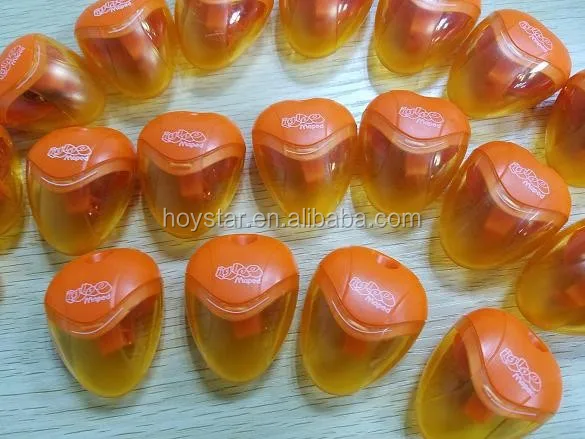

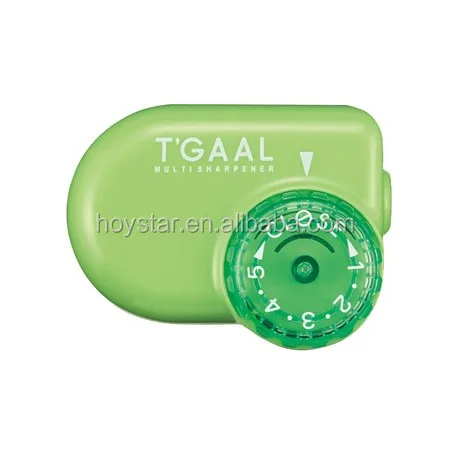

It is suitable for printing electronic products, plastic shell,stationery,pen,sharpener,USB,lighter, syringes,promotional gift, hardware products, stationary, small arts and crafts, logo on the surface of gift and toys.

technical parameter:

1.Steel plate size(Cliche size):100*250 mm

 2.Printing speed:3000 PCS/Hr ,it can print 2 pieces at one pad
3.sealed ink cup diameter(Pot diameter):90 mm

 4.Power: 220V/110V　50-60MHZ　|　1000W

 5.Air pressure:5-7BAR

 6.Action model option: fully automatic/semi-automatic/ manual/Self-Programming
7.Start-up method:panel/foot switches
8.Printing workstation:10 pieces
9.accessory:drying system,auto unloading device.

Main Features

1. servo motor control,SCM IC complile action program,kinds of printing model option
2. Auto 4-digit counter built-in,and stat. Printing quantity
3. Airframe adopts coin alloy,and metal coating surface
4. Worktable, printing head and ink tray can be adjusted X.Y.Z direction
5. Sucking ink and the pressure of printing pad can be adjusted independently .
6. scrapper stroke can be adjusted
7. It has function of leveling ink by sliding automatically on front /back,this can avoid printing ink partial solidification
8. The speed of all the cylinders have an independent regulator intortum
9. Adopts original Japan SMC and Taiwan MINDMAN pneumatic component
10. Each adjustable location has scale logo
11. it has the function of forbiding the pad fallen when no air pressure enter into
12. The machine is running fastly,it is steady and low voice
13. installing auto hot-air system, adjust temperature.
14.it have function of clean pad automatically.2 parts for 2 pieces printing pad.,drying system.

Machine Parts

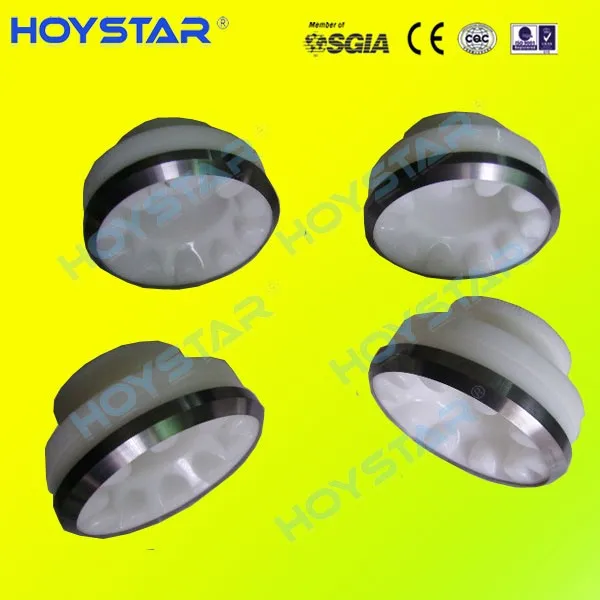

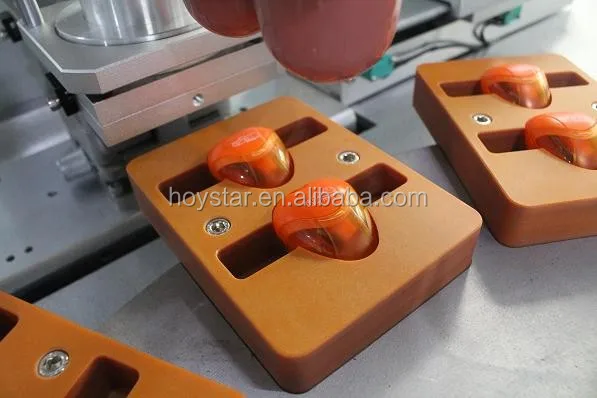

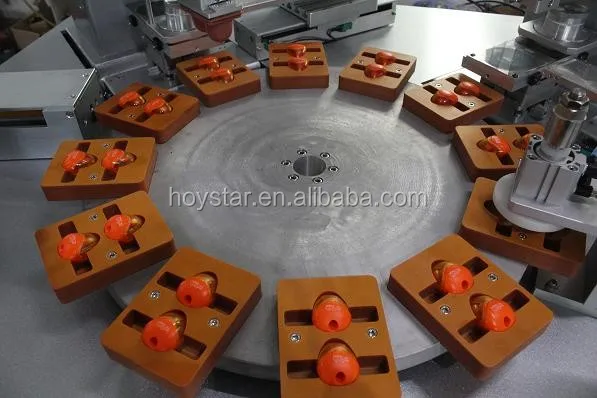

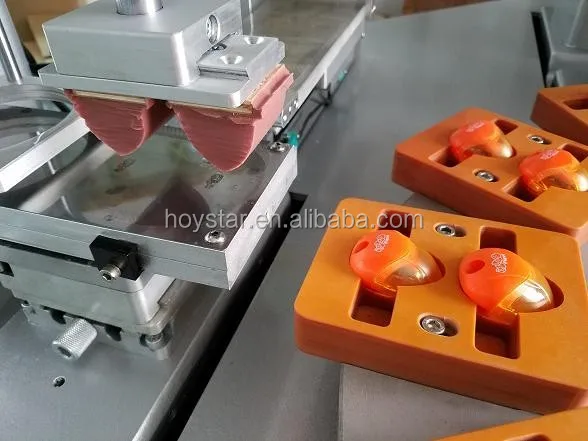

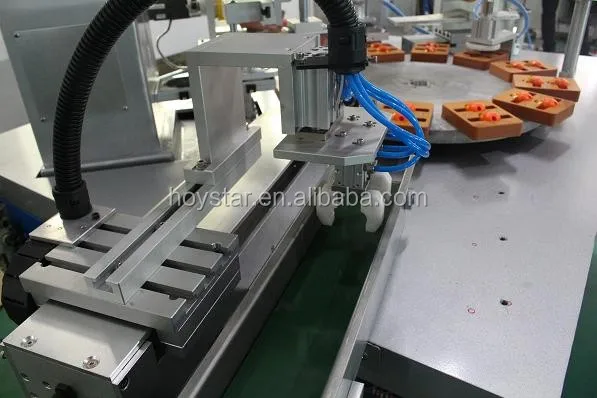

Name: closed ink cup,rotary worktable

Main Features

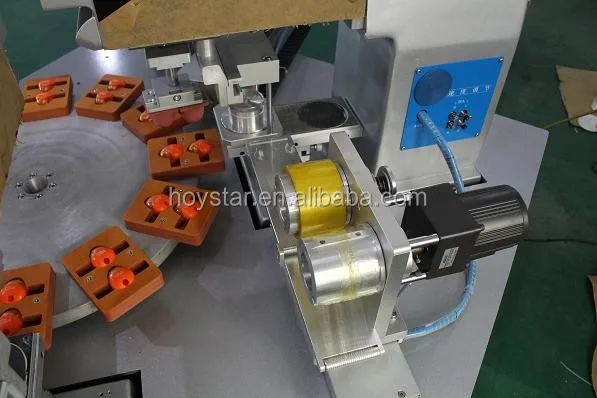

Name: auto pad cleaner

Machine Parts

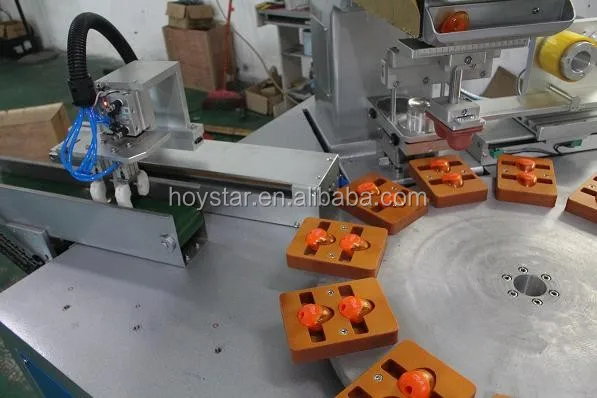

Name: auto unloading device

Main Features

Name: drying system
