ISO9001 Quality Standard Certification dock rubber marine YOKOHAMA fender
- 200 Piece / Pieces per Month
- Qingdao
- T/T
Product Details
Place of Origin: | Shandong, China | Brand Name: | XinCheng | Model Number: | XC.NO.F1391 |
Part: | Other, YOKOHAMA fender |
Product Description
ISO9001 Quality Standard Certification dock rubber marine YOKOHAMA fender
Qingdao XinCheng rubber product Co.,Ltd which founded in 1986. It's a science and technology-oriented manufacturer that engaged in marine supplies. Selling all kind of marine fenders and airbag. Our company's branch — XinCheng Airbag Factory is a professional airbag factory which make load bearing, floating, store up and anti-collision airbags with many usage. Also XinCheng is a professional airbag and marine fender leading enterprise in QingDao.
Our company own many professional machineries (internal mixer, rubber mixing machine, four roll rubber calender, vulcanizer and vulcanizing boiler with various specifications) . Qingdao XinCheng rubber company is the only one enterprise who own CCC, CCS, ISO90001:2008, SGS,BV and Lloyd's Register of Shipping.
WELCOME TO VISIT OUR FACTORY!
1. Value for Money, you will get the best price.
2. Unrivalled Expertise, we promise trustworthy product quality and service.
3. Good product lifespan and quality warranty.
4. Environment friendly and anti-collision.
♦—— Fiber layers:
♦—— Our equipment :
Comparing with traditional bumper style rubber fender, it has the following advantages:
1. More energy absorption.
2.Less reverse impact on ships.
3.Less weight.
4.Easy installation.
5.Softer and economical. etc.

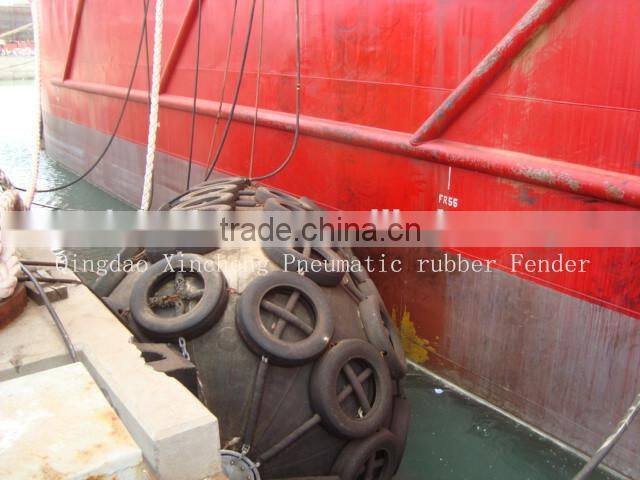

So, it is widely used by large tankers, LPG vessels, ocean platforms, large docks, harbor and wharfs.
...............................................................................................................
♦—— The structure of YOKOHAMA fender :
1. The outer rubber
Outside on the ball of rubber layer, which is used to protect by skeleton material and lining rubber ball
fromexternal force damage or wear.
2. The inner plastic
On the ball inside the rubber layer, which is used to prevent gas leakage and stay on the ball pressure.
3. Cord fabric layer
Composed of hanging plastic cord fabric, the lacquer that bake frame materials
4. Volume line ring
Placed in by ball end (or both) of steel ring, for fixed end cord fabric layer
5. The end of the flange
On the ball at the ends of the metal parts, can be installed charging valve and relief valve.
♦—— The specification of YOKOHAMA fender:
size D×L(m) | Initial pressure(Po) is 0.05MPa | Initial pressure (Po) is 0.08MPa | ||||
Weight kg | R(kN) | GEA(KJ) | Weight kg | R(kN) | GEA(KJ) | |
0.5×1.0 | 25 | 64 | 6 | 25 | 83 | 8 |
0.6×1.0 | 32 | 74 | 8 | 32 | 96 | 11 |
0.7×1.5 | 50 | 137 | 17 | 50 | 178 | 24 |
1.0×1.5 | 80 | 182 | 32 | 80 | 235 | 44 |
1.0×2.0 | 100 | 257 | 45 | 125 | 335 | 63 |
1.2×2.0 | 120 | 297 | 63 | 165 | 386 | 86 |
1.35×2.5 | 165 | 427 | 102 | 226 | 554 | 140 |
1.5×3.0 | 315 | 597 | 153 | 370 | 751 | 211 |
1.7×3.0 | 405 | 639 | 191 | 436 | 830 | 263 |
2.0×3.5 | 590 | 875 | 308 | 632 | 1138 | 424 |
2.5×4.0 | 1050 | 1381 | 663 | 1110 | 1815 | 925 |
2.5×5.5 | 1333 | 2019 | 943 | 1410 | 2653 | 1317 |
3.0×5.0 | 1880 | 2104 | 1210 | 2155 | 2709 | 1571 |
3.0×6.0 | 2160 | 2583 | 1485 | 2470 | 3292 | 1888 |
3.3×4.5 | 2020 | 1884 | 1175 | 2300 | 2476 | 1640 |
3.3×6.0 | 2300 | 2783 | 1675 | 2600 | 3652 | 2338 |
3.3×6.5 | 2700 | 3015 | 1814 | 3080 | 3961 | 2532 |
Height: the height of rubber fendernon- coxcombing, Inaccuracy of weight: ±10% Inaccuracy of reaction force: ±10% |
NOTE:
A, Other sizes besides the above also can be customized.
B, All fenders conform to the latest ISO 17357 directives.
C, All kinds of foam filled marine fenders can be available.
D, Can be delivered in various sizes with chain - vehicle/ aircraft tyre net.

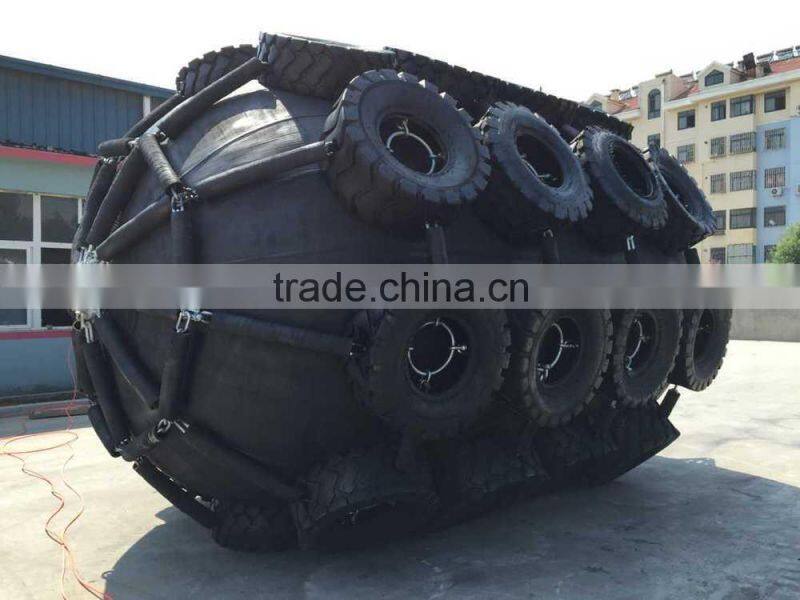

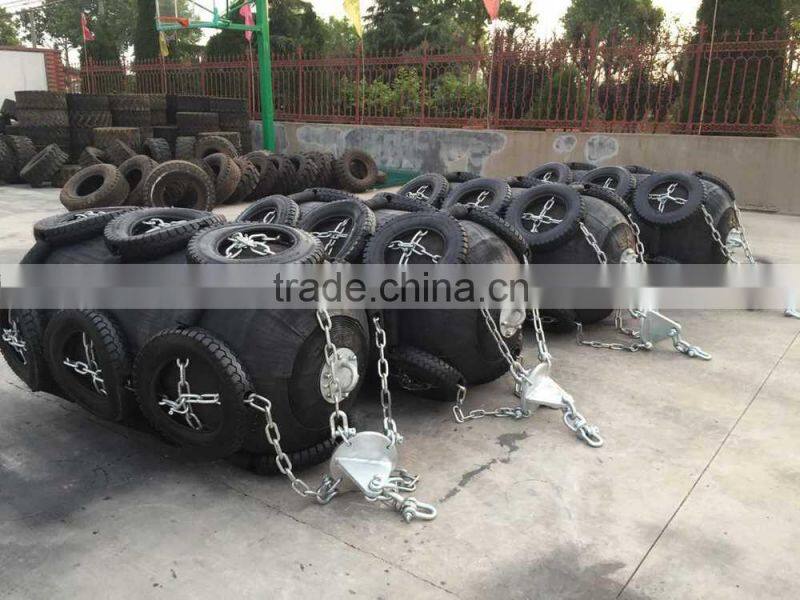

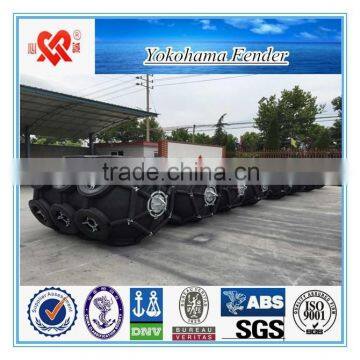

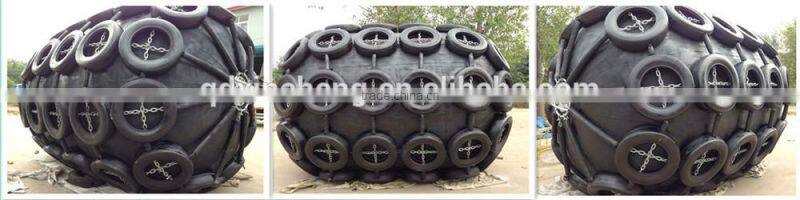

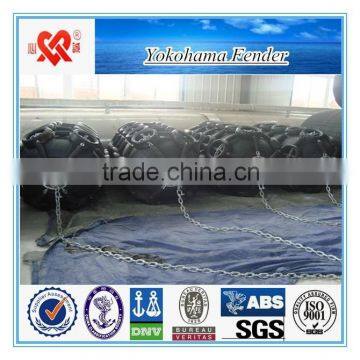

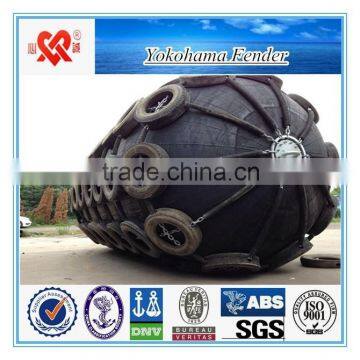

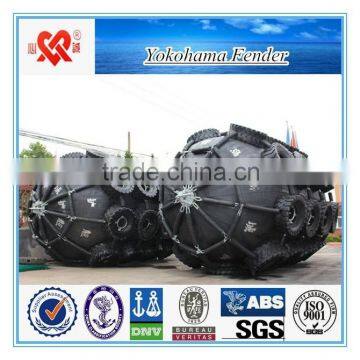

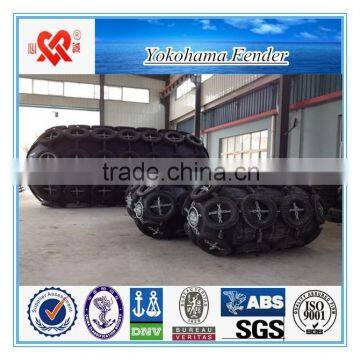

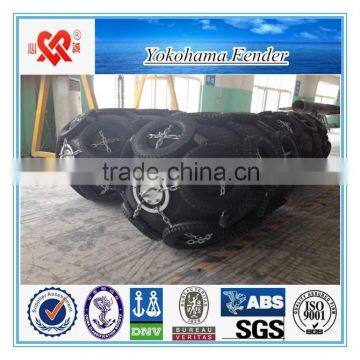

♦—— The photos of YOKOHAMA fender :
♦—— Pressure Test:
Our company always adhere to the principle of "quality first" and provides our customers with good products and services.
We are looking forward to build business with you. If you have any questions, please feel free to contact me.
