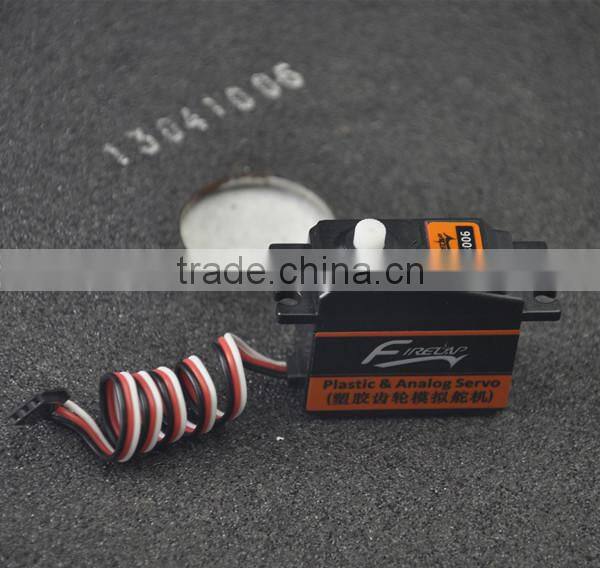

Dual Ball Bearig Pom Gears S3006 6kg Standard Servo

Dual Ball Bearig Pom Gears S3006 6kg Standard Servo photo-1
US$ 3.5 - 5 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Type:
Other, rc servo, Analog
Place of Origin:
Guangdong, China
Brand Name:
Firelap
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Type Other, rc servo, Analog
Place of Origin Guangdong, China
Brand Name Firelap
Model Number LS-S3006

Specifications

Dual ball bearig pom gears S3006 6kg Standard Servo
Excellent for rc car
long life Potentiometer
plastic gear train
2BB

Dual ball bearig pom gears S3006 6kg Standard Servo



Features:

 <>POM gear servo apply for 1/8 1/10 rc car,rc boat,rc airplane

 <>High presicion POM gears ;

 <>Select motor,could compare with import one;

 <>1million life Potentiometer;

 <>expert and experienced in circuit for many years;

 <>TOP choice on case plastic,and best mold manufacture,



Specifications:

 *Item No.LS-S3006

  *Weight:50g

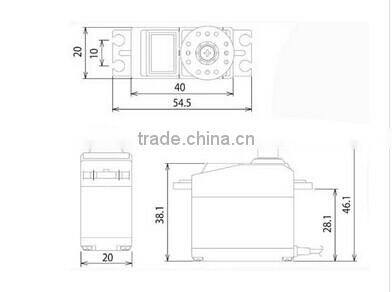

  *Size:40.0*20.0*38.0mm
  *Speed:0.18sec/60degree @4.8V:       0.16sec/60degree @6.0V
  *Stall Torque:6kg/cm @4.8V:                7.1kg/cm @6.0V
  *Operating Voltage:4.8-6Volts
  *Futaba,JR,SANWA,Hitec compatible.



Size (mm)
Weight
Wire
4.8V
6V
Rotation angle
Speed
Torque
Speed
Torque
L
W
H
g
oz
cm
sec/60o
kg-cm
oz-in
sec/60o
kg-cm
oz-in
40.0
20.0
38.0
40.0
1. 41
25.0
0.18
6

 0.16
 7.1

120degree

Dual ball bearig pom gears S3006 6kg Standard ServoDual ball bearig pom gears S3006 6kg Standard Servo



Dual ball bearig pom gears S3006 6kg Standard Servo

Notes:

*Please specify the plug(JR or Futaba connector),or we offer JR plug for you,for it is compatible.Futaba plug.

*Please do read the instruction before you install the servo.Rubber grommet must be used to reduce vibration when you install the servo on GP airplane,GP car or GP boat.

*Please choose suitable servo for you rc model.Torque overload will damage your servo.

*Keep the servo clean and away from dust,corrosive gas and humid air.

*Specification are subject to change without notice



Packing:

  <>Standard Packing:     PE bag bulk packing

  <>Optional Packing:      color box

  <>Packing Include:

    -Servo×1PCS

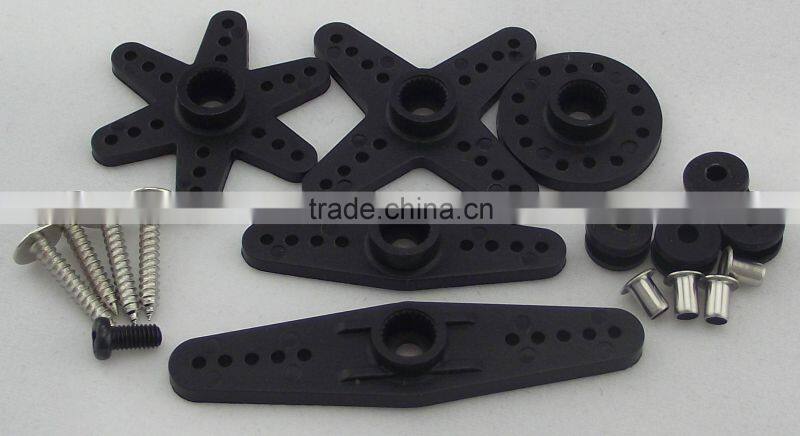

    -Accessories:

          1 x double sided servo horn

          1 x 4-arm servo horn

          1 x 6-arm servo horn

          1 x round servo disc

          4 x rubber grommets with brass inserts

          4 x mounting screws

          1 x mounting bolt 3 x 8 mm for servo horn installation on the ball raced brass output shaft with 25T-spline drive
