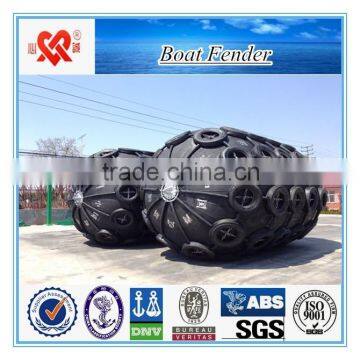

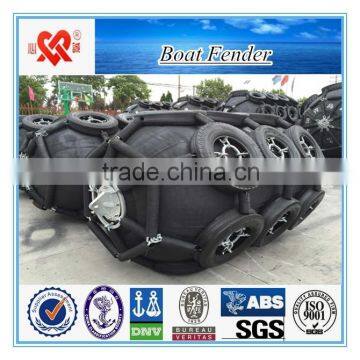

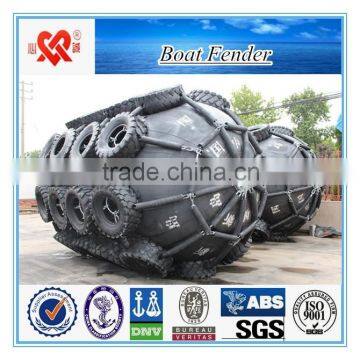

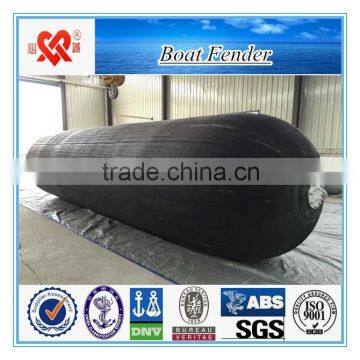

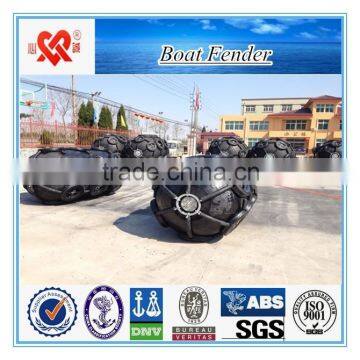

Small Medium Large Custom Made Rubber Inflatable Boat Fender
Fiber layers:
Our equipment :
Pneumatic rubber fender is the advanced anti-collision device for marine application in the world.
Features:
1. Large compression deformation, low reaction force, high energy absorption
2. Good floating performance, can meet the needs of the water level change
3. With compressed air as medium, the collision energy consumption by compressed air power
4. Easy installation and long service life
Structure:
Specification:
Specification D×L m | Initial pneumatic pressure 0.05Mpa | Initial pneumatic pressure 0.08Mpa | ||||
Sphere Weight(KG) | R(KN) | GEA(KJ) | Sphere Weight(KG) | R(KN) | GEA(KJ) | |
0.5×1.0 | 25 | 64 | 6 | 25 | 85 | 8 |
0.6×1.0 | 32 | 74 | 8 | 32 | 98 | 11 |
0.7×1.5 | 50 | 137 | 17 | 50 | 180 | 24 |
1.0×1.5 | 80 | 182 | 32 | 80 | 239 | 45 |
1.0×2.0 | 100 | 257 | 45 | 125 | 338 | 63 |
1.2×2.0 | 120 | 297 | 63 | 165 | 390 | 88 |
1.35×2.5 | 165 | 427 | 102 | 226 | 561 | 142 |
1.5×3.0 | 315 | 579 | 153 | 370 | 761 | 214 |
1.7×3.0 | 405 | 639 | 191 | 436 | 840 | 287 |
2.0×3.5 | 590 | 875 | 308 | 632 | 1150 | 430 |
2.5×4.0 | 1050 | 1381 | 663 | 1110 | 1815 | 925 |
2.5×5.5 | 1333 | 2019 | 943 | 1410 | 2653 | 1317 |
3.0×5.0 | 1880 | 2000 | 1050 | 2155 | 2709 | 1571 |
3.0×6.0 | 2160 | 2488 | 1312 | 2470 | 3292 | 1888 |
3.3×4.5 | 2020 | 1884 | 1175 | 2300 | 2476 | 1640 |
3.3×6.0 | 2300 | 2783 | 1675 | 2600 | 3652 | 2338 |
3.3×6.5 | 2700 | 3015 | 1814 | 3080 | 3961 | 2532 |
3.3×10.6 | 4403 | 5257 | 3067 | 5020 | 6907 | 4281 |
4.5×9.0 | 6554 | 5747 | 4752 | 7470 | 7551 | 6633 |
4.5×12.0 | 8739 | 7984 | 6473 | 9960 | 10490 | 9037 |
Note: The weight and reaction force & Energy absorption tolerance ±10% | ||||||
NOTE:
A, Other sizes besides the above also can be customized.
B, All fenders conform to the latest ISO 17357 directives.
C, All kinds of foam filled marine fenders can be available.
D, Can be delivered in various sizes with chain - vehicle/ aircraft tyre net.
Product Display:
Our company always adhere to the principle of "quality first" and provides our customers with good products and services.
We are looking forward to build business with you. If you have any questions, please feel free to contact me.
