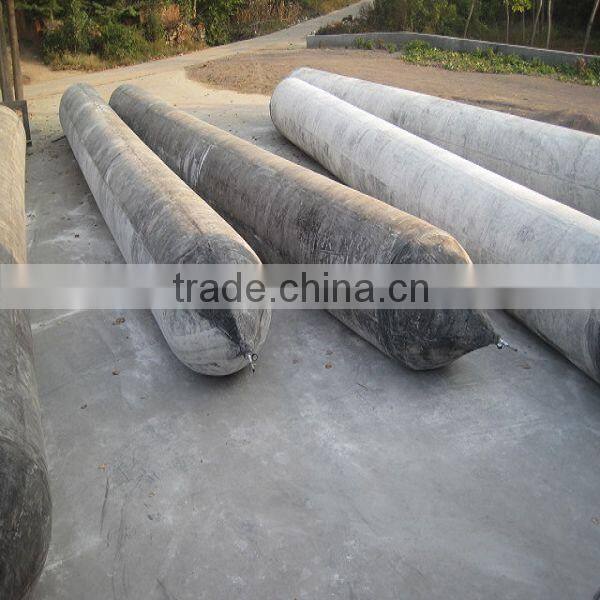

China marine airbag for ship launching lifting pneumatic bag

DIAMETER

WORKING PRESSURE

WORKING HIGHT

GUARANTEED BEARING CAPACITY PER UNIT LENGTH

KN/m

T/M

Lb/ft

D=1.2m

(D=3.94FT)

0.17Mpa

(24.66psi)

0.7m(2.296ft)

133.61

13.62

9154

0.6m(1.968ft)

160.30

16.34

10983

0.5m(1.640ft)

187.08

19.07

12818

0.4m(1.312ft)

213.76

21.79

14646

0.3m(0.984ft)

240.44

24.51

16474

0.2m(0.656ft)

267.22

27.24

18309

D=1.5m

(D=4.92ft)

0.13Mpa

(18.85psi)

0.9m(2.952ft)

122.63

12.50

8402

0.8m(2.624ft)

143.03

14.58

9800

0.7m(2.296ft)

163.43

16.66

11198

0.6m(1.968ft)

183.94

18.75

12602

0.5m(1.640ft)

204.34

20.83

14000

0.4m(1.312ft)

224.75

22.91

15398

0.3m(0.984ft)

245.15

24.99

16797

D=1.8m

(D=5.90ft)

0.11Mpa

(15.95psi)

1.1m(3.608ft)

120.96

12.33

8287

1.0m(3.280ft)

138.22

14.09

9470

0.9m(2.952ft)

155.59

15.86

10660

0.8m(2.624ft)

172.85

17.62

11843

0.7m(2.296ft)

190.22

19.39

13033

0.6m(1.968ft)

207.48

21.15

14216

0.5m(1.640ft)

224.75

22.91

15398

0.4m(1.312ft)

242.01

24.67

16581

0.3m(0.984ft)

259.38

26.44

17771

0.2m(o.656ft)

276.64

28.20

18954

 NOTE : THE ABOVE VALLUE IS FOR REFERENCE ONLY . IT IS SUBJECT TO CHANGE IN ACCORDANCE WITH ACTUAL AIRBAG SYSTEM DESIGN .

YOU CAN CHOOSE THE REQUIRED OF SHIPS AND BOATS OF ALL SIZES. WE WILL MEET YOUR PROJECTS/SUPPLIED UPON CLIENTS REQUEST .
