19inch Tablet pc Digitizer With Digital Pen, Digital Drawing Pad
US$ 350 - 450
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Products Status:
Stock
Screen Size:
Other, 19
Processor Manufacture:
Intel
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
10.1inch Pen Writting Tablet Monitor Used for SignatureUS$ 360 - 500MOQ: 50 Pieces -
19 Inch LCD Electromagnetic Pen Digitizer Tablet Monitor PC for Signature, Drawing and WritingUS$ 340 - 380MOQ: 10 Pieces
-
10.1" Wide TFT LCD Touch Screen Tablet PC All in One pcUS$ 200 - 450MOQ: 20 Pieces
-
15 Inch Electromagnetic Touch Screen Digital Pen Tablet Monitor, Electronic Graphics TabletUS$ 320 - 500MOQ: 20 Pieces
-
19 Inch Digital Stylus Pen Writing Pad, Electromagnetic Interactive Drawing Tablet pc Monitor, Stylus Pen Graphic TabletUS$ 360 - 500MOQ: 50 Pieces
Products Status
Stock
Screen Size
Other, 19
Processor Manufacture
Intel
Touch Screen Type
Capacitive Screen
Display resolution
1440x900
Operating System
Windows 7
Weight
4.6KG
Place of Origin
Hebei, China
Brand Name
Tang Hftouch
Model Number
1905W
Color
Black
Smooth writing model with electromagnetic pen, can keep the true tracking which completely same as the one of people handwriting, provide people with new signature/drawing model, more modern and convenient!
Application:
Widely use to the bank, communication, trainning, education, hospital etc
Tablet PC Digitizer, drawing pad Spec
Screen Size: 18.95” LED backlight
Display Ratio:16:10
Native Resolution: 1440X900
Response time(typical):5ms
Viewing angle(H/V): 85°x 80°
Luminance of white:250cd/m²
Contrast ratio: 1000:1
Number of colors:16.7M
Color management: ICC profile, 6500°K whitepoint default
| Electrical Specs | |
| Horizontal & Vertical Frequency | H:30~ 81 kHz;V:56 ~ 75 Hz |
| Pixel frequency | 140 MHz |
| Video signal input (R/G/B) | 0.7 Vpp / 75 ohms ( analog video signals ) |
| Syns signal (TTL level) | LH: 2.0 ~ 5.0 Vpp, LL: 0 ~ 0.8 Vpp |
| Power supply type | External adapter |
| Power supply (Adapter) | Input 100-240 VAC, 50/60 Hz, Output 12VDC 4A |
| Power consumption | max:24 watts;saving:<1w;off<1w |
| Speakers | N/A |
| Plug & play | DDC1/2B/CI |
| Tablet Module | |
| Technology | Electromagnetic resonance method |
| Resolution | 2000 Lpi (lines per inch) |
| Data communication | USB-B Type interface |
| Operation System support | Windows 7, Windows Vista, Windows XP |
| ExpressKeys | N/A |
| Interactive Pen | |
| Pressure sensitive | 1024 Levels |
| Reading accuracy | ±0.5 mm (center) |
| Detectable tilt range | Down to 45° from vertical |
| Tracking speed | Approximately 133 points per second |
| Battery | AAA alkaline dry cell x 1 Or USB Charging pen |
| Pen Power Consumption | 700uA (Max.) |
| Connections | |
| DC in | 5.5×2.5mm DC 12V, 4A |
| VGA in | 15pin D-sub |
| DVI in | 19pin DVI |
| USB in | USB-B Type |
| VGA out | Can Custom Made |
| Audio in | N/A |
| Audio out | N/A |
| User Controls | |
| Control type | OSD / 5keys+10Key Custom keyboard shortcuts |
| Factory preset modes | 720 x 400 @ 70Hz,640 x 480 @ 60Hz/72Hz/75Hz |
| 800 x 600 @ 60Hz/72Hz/75Hz,1024x 768 @60Hz/70Hz/75Hz | |
| 1280 x 1024@ 60Hz/75Hz | |
| 1440x900@ 60Hz/75Hz | |
| OSD Language | 16 languages (Eng/Deu/Fre/Ita/Spa/Por/Ch-s/Ch-t |
| Pol/Rus/Kor/Dan/Dut/Fin/Swe/Jap) | |
| Physical Specs | |
| Stand adjustability | Tilt: 5°~ 35°, 0° (0° to make it look parallel with tabletop ) |
| Supper 360º revolve | |
| Wall mounting | VESA 75mm |
| Kensington lock | Yes |
| Unit dimension (W x H x D) | 470 mm x 302mm x 49mm |
| Weight | Net 3.5kg, Gross 4.6kg |
| Operation Conditions | |
| Temperature & Humidity | 0-40°C (32-104°F), 20-80% (non-condensing) |
| Compliance | |
| Compliance | CCC, FCC, CE, RoHS |
Application
For children illustration For the electronic signature,paperless office
For the medical industry Used in electronic teaching,paperless Teaching

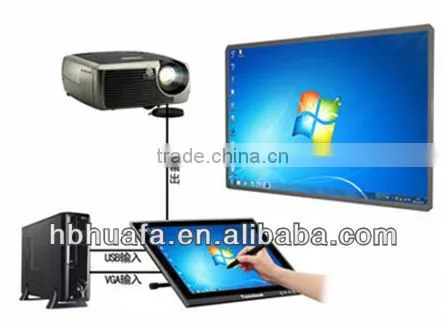

Used for drawing and design Tablet monitor for electronic whiteboard
