vacuum clay brick extruder
- 100 Set / Sets per Month
- Qingdao
- T/T Credit Card
- China pe200x300 smallest jaw crusher
- Popular compound pendulum jaw crusher price
- 2016 china products stone coated steel roofing tile ,shingle steel roof tile
- 2016 china products lightweight roof tile,blue glazed roof tile
- colored metal roofing prices,sand coated metal roofing tiles
- roofing tiles coated with stones,roofing tiles for houses
Product Details
Condition: | New | Type: | Other, Solid Brick Making Machine | Brick Raw Material: | Clay |
Processing: | Brick Production Line | Method: | Vacuum Extruder | Automatic: | Yes |
Capacity: | 7000-9000PCS/H | Place of Origin: | Henan, China | Brand Name: | Anjit |
Model Number: | JZK350 | Voltage: | 380V/50HZ | Power: | 75-90kw |
Certification: | ISO | Warranty: | 1 Year since the shipping date | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

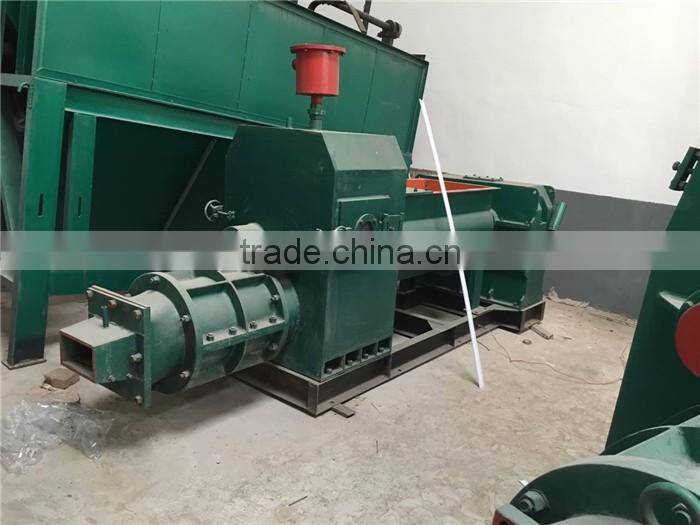

JZK350 Vacuum Extruder for clay bricks
Introduction:
Clay brick making machine, also named double stage vacuum extruder, is suitable for producing all kinds of howllow bricks, cell bricks and solid bricks with clay, shale, coal gangue, as well as slag etc as its raw materials.
Characteristics:
Vacuum extruder is with many advantages, such as reasonable design, compact structure, steady running, easy operation, low consumption and so on. The spiral reamer adopt wear-resistance metal spray painting technology; the upper stage mixing shaft, the reamer shaft, and the body of the machine are all passed the aging, quenching and tempering process; The reducer gearwheel adopts the spiral pressure plate patent technology on the clutch largely prolonged the service time of the machine.
Technology data:
Item | Data. |
Productivity (standard brick) | 7000~9000 Pcs/h |
Reamer Dia. | 350 mm |
Max. extrude pressure | 1.5 Mpa |
Vacuum degree | -0.092° |
Power | 75kw~90 KW |

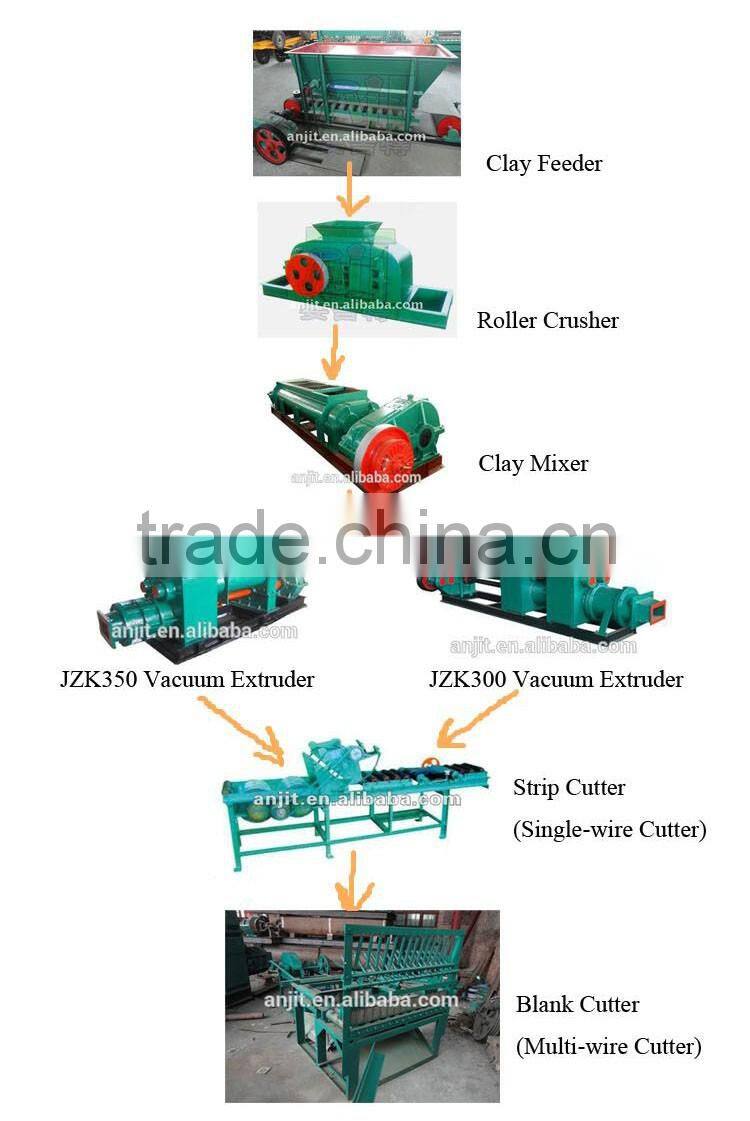

JZK350 Vacuum type Clay Brick Production Line
JZK350 Clay brick production macine list:
No. | Goods Name | Motor | Capacity | Weight | Quantity |
1 | Box Feeder GD65-3.5m | 7.5kw | 10-30m3/h | 2300kg | 1set |
2 | Belt Conveyor 500mm*8m | 3KW | 78-190m3/h | 1800kg | 1set |
3 | Roller Crusher GS600*450 | 11KW+7.5KW | 10-20M3/h | 1900kg | 1set |
4 | Belt Conveyor 500mm*10m | 4KW | 78-190m3/h | 1800kg | 1set |
5 | Double shaft mixer SJ2000 | 22KW | 25-30m3/h | 1700kg | 1set |
6 | Belt Conveyor 500mm*5m | 3KW | 78-190m3/h | 500kg | 1sets |
7 | Clay brick Extruder JZK350 | 90KW | 7000-8000pcs/h 240*115*53mm | 2500kg | 1set |
Vacuum pump | 11KW |
| 86kg | 1set | |
Air compressor | 1.5kw |
| 80kg | 1set | |
8 | Auto Cutter | 5.1KW | 900kg | 1set | |
9 | Auto Falling Plate Machine | 800kg | 1set | ||
10 | Control Panel | 178.1KW | 1set |
In order to offer you professional data, please let's us know your detail requirements:
1- How many pieces of clay bricks per hour or per day you want to make?
2- What's your clay brick size?
3- If you need hollow clay brick, please send us your hollow brick drawing.
