Multi touch - 2point, 4point and 10point finger touch option .
Tang Hftouch interactive whiteboard is leading the meeting and learning models of man-machine, it can establish the multimedia interactive learning environment by connecting the projector and computer, just by touching the whiteboard with your finger or any opaque to control your computer, and capture or edit the image, words on the original meeting, teaching materials, bring the meeting, learning to a vivid presentation, enhance communication, raising the audience or students’ attention and understanding, it make all easy and efficient.
Tang Hftouch whiteboard software is the professional teaching software, which have the strong function, include the hand gesture recognizable, writing, annotating, highlight etc (see the specification), and provide free upgrade.
Interactive whiteboard smart board S Series - Whiteboard Dimension
| Active diagonal size | 50" | 82" | 88" | 89" | 100" | 102" |
| Aspect ratio | 4:3 | 4:3 | 16:10 | 4:3 | 16:9 | 16:9 |
| Active diagonal Dimension(mm) | 998*672 | 1650*1140 | 1900*1140 | 1795*1225 | 2119*1440 | 2122*1225 |
| Product diagonal Dimension(mm) | 1048*772 | 1700*1190 | 1950*1190 | 1853*1283 | 2169*1190 | 2180*1283 |
| Package Dimension | 1180*890*110 | 1820*1320*110 | 2080*1320*110 | 1985*1400*110 | 2300*1320*110 | 2320*1400*120 |
| Loading Qty (20'ft caontainer) (pcs) | 235 | 105 | 95 | 98 | 82 | 72 |
Interactive whiteboard smart board Features,
| Ø Infrared matrix sensing technology. finger writing, or any opaque touch | ||||||
| Ø Electrical whiteboard with accurate positioning, no drift, no light dots, protect eyes. | ||||||
| Ø Supper narrow frame make the performance looking, and efficient available. | ||||||
| Ø Modular design, can realize the model of double screen, vertical and horizontal screen | ||||||
| Ø Drive-free, easy maintenance. Anti-abrasion, anti-scraping, easily clean. | ||||||
| Ø Sleek, slim & 178 º viewing angle, make the classroom efficiently use. | ||||||
| Ø Multi input ports , compatible function with the various multimedia. Long lifetime up to 11 years. | ||||||
| Ø The size can be customized per user requirement. Display rate: 16:9, 16:10, 4:3 | ||||||
| Ø Equipment with smart penholder for writing convenience. | ||||||
| Ø Standard accessories providing, as below. Mobile stand option | ||||||
| Ø Professional whiteboard software to make the classing or meeting vivid. | ||||||
| Ø Free upgrade, provide Tang Hftouch download website. | ||||||
| Ø Build a multimedia interactive learning environment along with projector, computer, and visualize.. | ||||||
| Ø Hand gesture recognizable, rotate, drag, page up/down, zoom in/out, easer. | ||||||
| Ø Open platform, user defined source, no limited. | ||||||
| Ø User can defined the shortcut, Annotation function on Microsoft Office PowerPoint and Word file; Video/ Audio recording, playback function. | ||||||
| Ø Unlimited sources input in various file format, include images, flash, video files. Microsoft Office file. | ||||||
| Ø Accurate synchronous with connecting computer. | ||||||
| Ø Supporting the files of word, excel, ppt, pdf, cad, psd , cdr etc. and export files in jpg, bmp, pdf, ppt etc formats. | ||||||
| Ø Multi-touch, make the life more convenient and human. |
Interactive whiteboard smart board Hardware,
| Technology | Infrared technology; multi touch | |||||||||||
| Writing Stylus | Pen, finger, pointer and any other opaque objects | |||||||||||
| Positioning Accuracy | Typical accuracy< 2mm | |||||||||||
| Response Object Size | >Ø3.0mm, recommended size:Ø5.0mm | |||||||||||
| Cursor Speed | 180 d/s around | |||||||||||
| Resolution | 4096(W) × 4096(D) | |||||||||||
| Respond Speed | First dot (click): 16ms; Continuous dots (write) : 8 ms | |||||||||||
| Lifetime of Touch Screen | Above 60,000,000 single-dot touch | |||||||||||
| Board Material |
| |||||||||||
| Installation Instruction | Wall mounting or portable floor stand (optional) | |||||||||||
| Certification | CE,FCC,RoHs | |||||||||||
| PC Port | USB 1.1, USB 2.0; USB power supply | |||||||||||
| Voltage | DC 4.6V- 5.0V | |||||||||||
| Power Consumption | <1W ( 200mA at 5V) | |||||||||||
| Temperature | Working temperature: -10 °C to 45 °C; Storage temperature: -30 °C to 60 °C | |||||||||||
| Humidity | Working humidity: 10% to 90%; Storage humidity: 0~95% | |||||||||||
| Lifetime | Over 11 years | |||||||||||
| Working Condition | Under the sun, also indoor or outdoor | |||||||||||

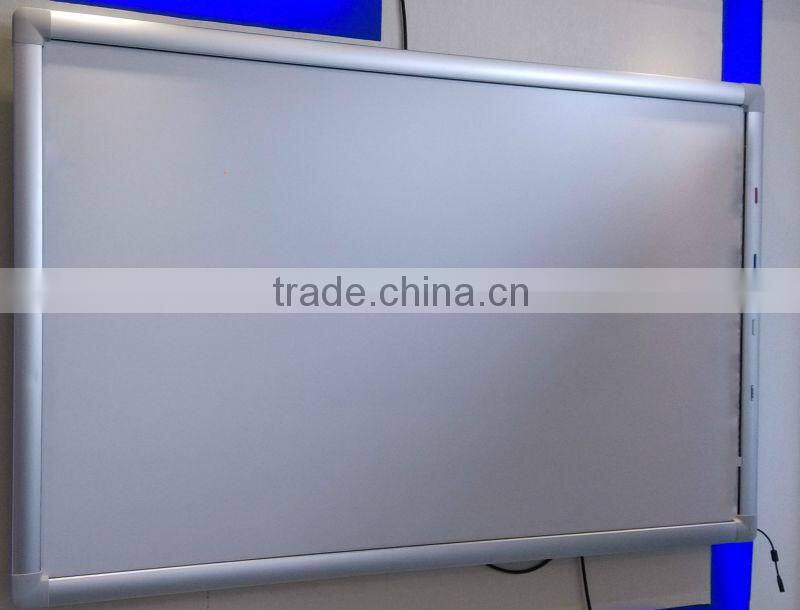

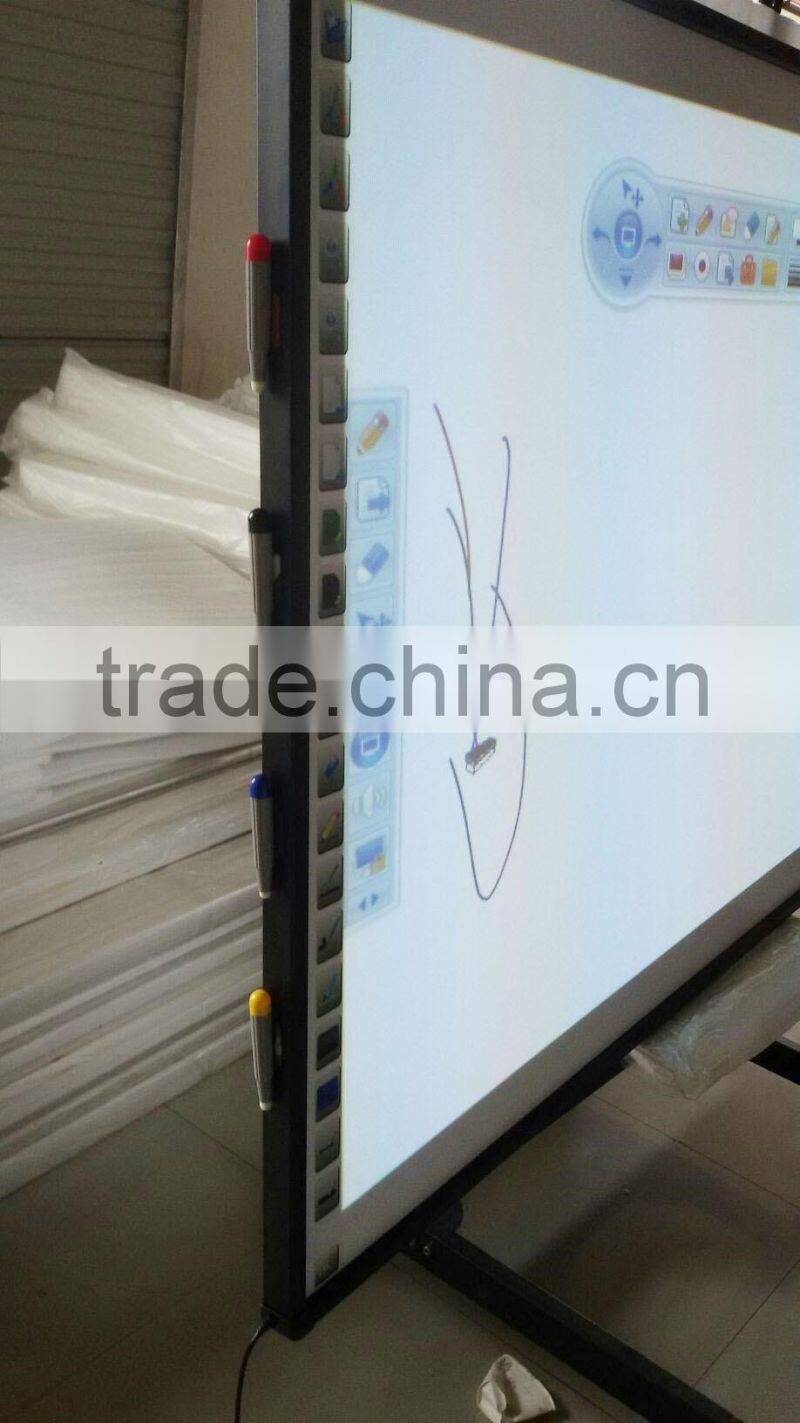

Detailed pictures of infrared interactive whiteboard:

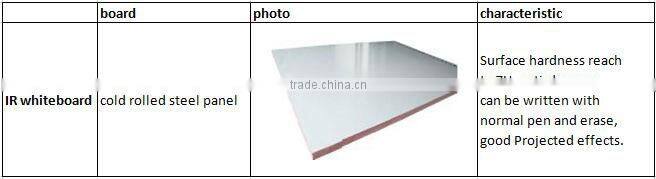

whiteboard accessories
Optional accessories
Power supply
Power Supply | USB power supply |
Voltage | DC 4.6V- 5.0V |
Power Consumption | <1W ( 200mA at 5V for IR ) ; (100mA at 5V for Electromagnet) |
Working environment
Temperature | Working temperature: -10 °C to 45 °C |
Storage temperature: -30 °C to 60 °C | |
Humidity | Working humidity: 10% to 90% |
Storage humidity: 0~95% | |
Lifetime | Over 11 years |
Working Condition | Under the sun, also indoor or outdoor |
We also offer other equipment that can be used to built interactive whiteboard system:
HF people always insist on the rule that supply high-quality products, try to do all the best to satisfy customer’s needs as much as possible. Welcome to visit us and sincerely expect your attention to make the business discussion with us. Kindly feel free to contact with us if there is any inquiry.
Pictures of workshop
The model is widely used in education and business conference for presentation. Whiteboard software is also available.
We will try our best to satisfy our customer.
OEM is acceptable!!!
Sample acceptable! OEM welcome!
Mature and Professional Technical Team, to provide active technology & professional software
Professional Sales Team, to provide the professional consultation & competitive price
Mature Quality Control team, to ensure high-quality products
Transportation Management Team, to provide economic shipping advice & fast delivery.
Conscientious Service Team, to ensure service guarantees after-sales.
1. Do you accept OME, sample order?
Reply: Yes, OEM welcome; Sample supporting.
2. How many quantity is the MOQ? Lead -time? Warranty?
Reply: MOQ: 10pcs. Lead-time: within 15days. Warranty: three years.
3. Do you offer any service within warranty?
- Any faulted component will be fixed or replacement from Hebei Huafa, while the ship cost will be response from buyer;
- Offer all lifetime technical supporting and free upgrade software
- After Warranty, we offer the replacement with original cost, free labour cost
