Mini Ball Mill For Sale
- QINGDAO/SHANGHAI
- T/T Credit Card
You May Like
-
Mini Ball Mill For Sale
-
Favorites Compare Energy Saving Ball Mill-- Hot Sale
-
high Energy Saving gold Ball Mill with AC motor SKF bearing
-
CE and ISO Quality Approve wet type ball mill
-
China Ball mill is suitable for mineral processing, cement, lime, crushing,
-
Heavy duty stable performance homemade ball mill
Product Details
| Condition | New | Type | Ball Mill | |
| Motor Type | AC Motor | Power(W) | 18.9kw | |
| Capacity(t/h) | 0.65-2 | Place of Origin | Shanghai, China | |
| Brand Name | Donxe | Model Number | MQG900*1800 | |
| Dimension(L*W*H) | mm | Weight | 3.6T | |
| Certification | CE,ISO9001:2000 | Warranty | ONE YEAR | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications

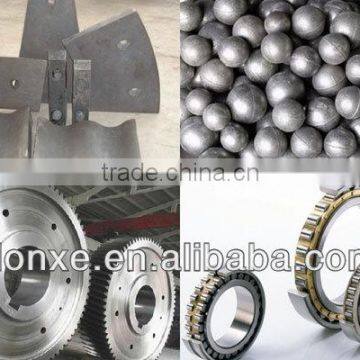

Ball Mill1.Mn linning,durable
2.whole base support, easy to installation
3.special design, saving energy about 30%
Ball mill organization character :
By feeding department, the exiting material department, the rotor, the transmission department (speed reducer, small transmission gear, electrical machinery, electric control) and so on main part composes .The midlevel axis uses the steel casting, the inside lining is detachable, rotates the big wheel to use the casting to roll the tooth processing, tube in vivo besets with by the wear-resisting backing, has the good resistance to wear. It revolves steadily, operation reliable.
Note: According to material and emissions mine type , may choose the dry ball mill and the wet check ball mill.
Working principle of ball mill:
The ball mill is a key equipment to grind the crushed materials, and the ball mill is widely used in powder-making production line including cement, silicate, new-type building material, refractory material, fertilizer, ore dressing of ferrous metal and non-ferrous metal, glass ceramics, etc, and the ball mill can grind various ores and other materials with dry type and wet type. There are two kinds of ball mill, grate type and overfall type due to different ways of discharging material.
Main Technical Parameters:
| Model | Rotary Speed (r/min) | The feeding size (mm) | The finalsize (mm) | Capacity (t/h) | Main Motor (kw) | Weight (t) |
| MQG900×1800 | 38 | ≤ 20 | 0.075-0.89 | 0.65-2 | 18.9 | 3.6 |
| MQG900×3000 | 38 | ≤ 20 | 0.075-0.89 | 1.1-4.8 | 22 | 4.6 |
| MQG1200×2400 | 32 | ≤ 25 | 0.075-0.6 | 1.5-4.8 | 45 | 12.5 |
| MQG1200×2800 | 35 | ≤ 25 | 0.074-0.4 | 1.2-3.7 | 30 | 11.5 |
| MQG1200×3000 | 32 | ≤ 25 | 0.074-0.4 | 1.6-5 | 45 | 12.8 |
| MQG1200×4500 | 32 | ≤ 25 | 0.074-0.4 | 1.6-5.8 | 55 | 13.8 |
| MQG1500×3000 | 27 | ≤ 25 | 0.074-0.4 | 2-5 | 75 | 17 |
| MQG1500×4500 | 27 | ≤ 25 | 0.074-0.4 | 3-6 | 90 | 21 |
| MQG1500×5700 | 27 | ≤ 25 | 0.074-0.4 | 3.5-6 | 110 | 24.7 |
| MQG1830×3000 | 24 | ≤ 25 | 0.074-0.4 | 4-10 | 180 | 28 |
| MQG1830×6400 | 24 | ≤ 25 | 0.074-0.4 | 6.5-15 | 210 | 34 |
| MQG1830×7000 | 24 | ≤ 25 | 0.074-0.4 | 7.5-17 | 245 | 36 |
| MQG2200×5500 | 21 | ≤ 25 | 0.074-0.4 | 10-22 | 370 | 48.5 |
| MQG2200×6500 | 21 | ≤ 25 | 0.074-0.4 | 14-26 | 380 | 52.8 |
| MQG2200×7000 | 21 | ≤ 25 | 0.074-0.4 | 8-36 | 380 | 50 |
| MQG2200×7500 | 21 | ≤ 25 | 0.074-0.4 | 16-29 | 475 | 56 |
| MQG2100×2700 | 24 | ≤ 20 | 0.074-0.4 | 3.5-25 | 150 | 33 |
| MQG2100×3500 | 24 | ≤ 25 | 0.074-0.4 | 4.5-33 | 180 | 37
|
• one year guarantee for whole machine except man-made damage.
• technical support by e-mail on workday
•during the installation and commissioning, the seller shall send technician to the site for instruction of installation and commissioning, and for training of workers.
• the buyer shall afford the travelling expense (including the expense of airline ticket, train ticket, board and lodging); the buyer shall also pay the service fee of USD 80/day/person.
• If there is any equipment failure caused by the buyer, the seller shall assist the maintenance of machines and replacement of fittings, and charges appropriate fees.
Packaging Details:
1.Outside package:Standard wooden case or bare packaging
2.Inner package: stretch film
Delivery Detail:
about 25 workdays after payments
Our company is a high-tech enterprise in Shanghai with ISO9001:2000 certificate. We are a professional manufacturer of mining crushers, industrial grinding mills and screening machines. We manufacture a wide range of stone and rock crushing machines, such as jaw crushers, shaft impact crushers, cone crushers, hummer crushers, sand makers and stone crushing line parts such as stone crushing feeders, rock crushing feeders and belt conveyors. We have formed a complete production chain.In recent years our company focus on all kinds of mineral processing engineering, and achieved a series of achievements, help many foreign buyers to establish a mineral processing production line.We have become a major manufacturer and exporter in China. We are looking forward to your inquiry and prepare to offer you best services and products at any time.
If you are interested in any product and need more detailed information,just contact me.
