Home > Industrial Equipment & Components > Boiler & Furnace > Furnace > Ladle Baker for Gas Fired Aluminum Scrap Melting Furnace

Ladle Baker for Gas Fired Aluminum Scrap Melting Furnace

Wuxi Wondery Trading Co., Ltd.
Ladle Baker for Gas Fired Aluminum Scrap Melting Furnace thumbnail-1

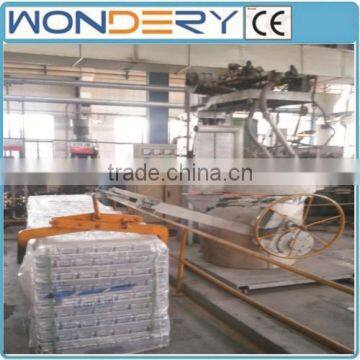

Ladle Baker for Gas Fired Aluminum Scrap Melting Furnace photo-1
US$ 3,000 - 20,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, ladle baker for melting furnace
Usage:
Melting Furnace
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanhai Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Other, ladle baker for melting furnace
Usage Melting Furnace
Place of Origin Jiangsu, China
Brand Name WONDERY
Model Number DB
Voltage based on the special size
Power(W) based on the special size
Dimension(L*W*H) based on the special size
Weight based on the special size
Certification ISO CERTIFICATE
Warranty 1 YEAR
After-sales Service Provided Engineers available to service machinery overseas

Specifications

ladle baker for electric, gas fried or oil fired aluminum scrap melting furnace; non-ferrous metal such as zinc, lead, copper





Product Description





                  Ladle Baker For Electric, Gas fried or Oil Fired Aluminum Scrap Melting Furnace



The cover of the ladle baker lifts up when the aluminum ladle is placed inside the baker or taken out of the baker, and moves down when the baker heats the aluminum ladle. The baker works with a variety of fuels, such as city coal gas, natural gas, LPG, diesel oil, or heavy oil.

The specially designed burner for the baker has the advantages of high baking efficiency, environment friendliness, strong flame, long service life, and high stability.





The aluminum ladle is mainly used for transportation of molten aluminum. It can also be used for transportation of other non-ferrous metals. The aluminum ladle hearth is either built with a high strength once-forming casting material or embedded with a crucible.

Model

Capacity (kg)

Ladle diamter

(kw)

Ladle height (mm)

Overall dimension(mm)

CX-LB-100

100

512

540

1220*720*1385

CX- LB -150

150

590

620

1260*815*1400

CX- LB -200

200

675

705

1362*864*1465

CX- LB -300

300

750

770

1425*1020*1700

CX- LB -500

500

840

850

1532*1145*1836

We would also supply custom-made aluminum ladles.

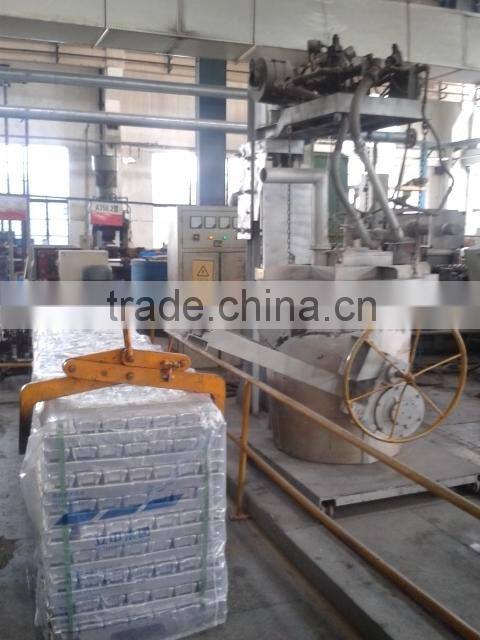

ladle baker for gas fired aluminum scrap melting furnace



Packaging & Shipping



The furnace is packed in plywood cases which can be moved through forklift by its feet.

The nearest sea port is Shanghai port which is the largest and most convenient port over China.

The delivery time is 60 days after receipt of down payment.

The furnace can usually be loaded into normal container (20GP or 40GP).

The delivery term can be FOB, CIF, or CNF.



Our Services



Our company provides test-running service to the customers. We would send our engineers to the buyer's site for installation, test-running and training service. The customer should bear the following costs: round-way air ticket fare, and board and lodging, and daily allowance.

The warrantee period is 1 year after completion of test-running.

We provide technical support life-time.



Company Information



Wuxi Wondery Trading Co., Ltd is a comprehensive furnace supplier. We can supply the following products: box type furnace, bogie hearth furnace, hot air circulation oven, well type furnace, hood type furnace, tube type furnace, mesh belt furnace, continuous type roller type, continuous roller hearth furnace, tiltable roller furnace, push rod furnace, steel strip furnace, aluminum alloy quenching furnace, aging furnace, brazing furnace, laboratory furnace, crucible furnace, and aluminum melting and holding furnace. The heat treatment furnace treats the workpieces under protective atmosphere, control atmosphere, or vacuum status and with energy mediums such as electricity, natural gas, coal gas, industrial fuel oil and others.



FAQ



1)  Q: What is the power supply of the furnace?

      A:  The power supply of the furnace is to be decided by the customer's side. We are able to adjust the power supply (volt, and phase) through a transformer so that the furnace is ready for use at the end user's site.

2) Q: What information should the customer provide to get an accurate quotation from us?

     A: The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output, etc.

3) Q: What is the payment term?

     A: The payment term is 30% down payment, and 70% before delivery (T/T mode).

4) Q: What is the delivery time?

     A: The delivery time of the furnace is 60 days after receipt of down payment.

5) Q: What is the warrantee period of the furnace?

     A: The warrantee period is 1 year after completion of test-running.

6) Q: How to contact us?

     A: Contact person: Ms Ruth from Sales Department

         Website:  /

         Mobile: +86 1530 5299 442

         Skype Id: wonderymc

         QQ account: 1292627586
