New ZLP 630 Powered Platfom
- Tianjin port china
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Beijing, China | Brand Name | FTH | |
| Model Number | ZLP |
Product Description
Specifications
ZLP630 powered suspended platformlift weight: 630kg
height: 100m
length: 6meters
height&voltage&length could design

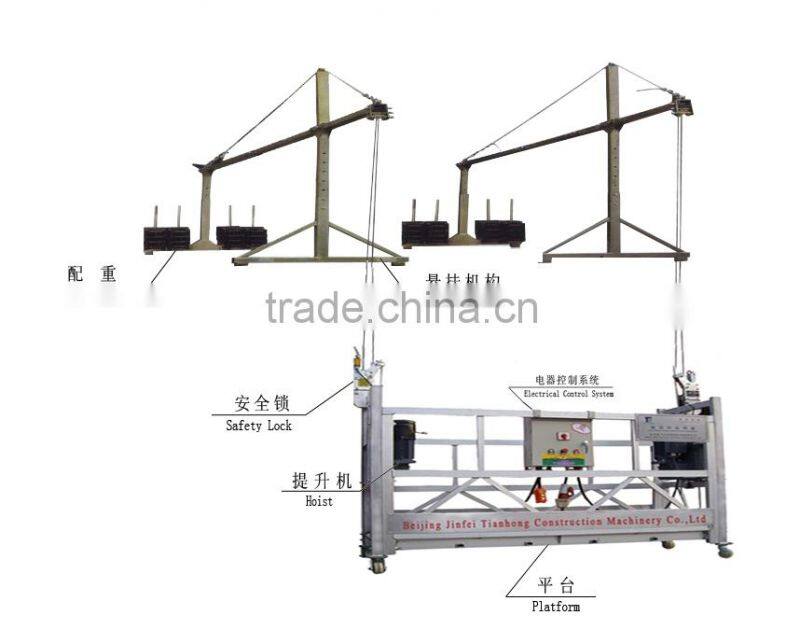

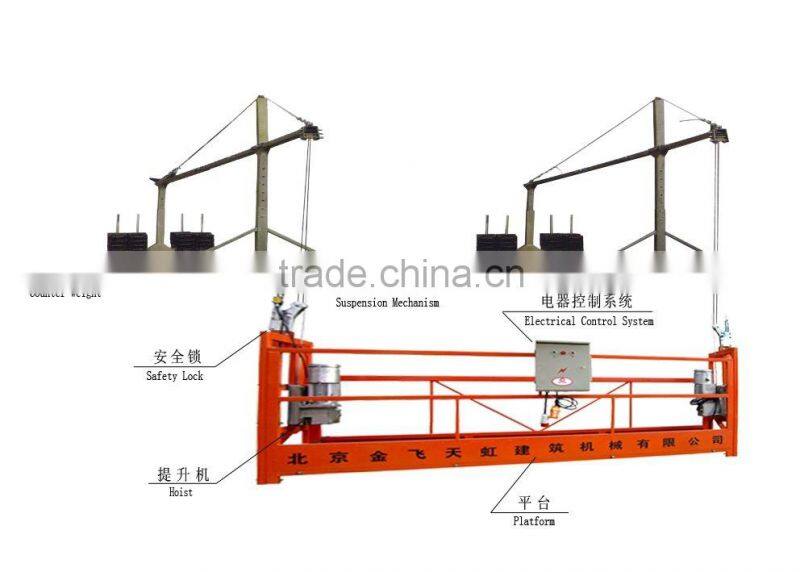

New ZLP630 powered suspended platform
suspended platform: loading weight:200-1000kg,design the heigh,size, voltage,shap of platform for your all kinds of projects
Name | Technical parameter | ||||||
Model | ZLP500(5m) | ZLP630(6m) | 4m | 3m | 2m | ||
Rated load | 500Kg | 630Kg | 500Kg | 500Kg | 500Kg | ||
Lifting speed | 8-10m/min | 8-10m/min | 8-10m/min | 8-10m/min | 8-10m/min | ||
Platform Dimension L×W×H(mm) | 5000(2m+3m)×720×1100 | 6000(1m+2m+3m)×720×1300 | 4000(2m+2m)×720×1300 | 3000(1m+2m)×720×1300 | 2000×720×1300 | ||
Lifting Height | 100 m | 100 m | 100 m | 100 m | 100 m | ||
Cable | 100 m | 100 m | 100 m | 100 m | 100 m | ||
Steel rope | 8.3mm | 8.3mm | 8.3mm | 8.3mm | 8.3mm | ||
Hoist | Pulling power | 6.17KN | 6.17KN | 6.17KN | 6.17KN | 6.17KN | |
Electric motor | model | YEJ90L-4 | YEJ90L-4 | YEJ90L-4 | YEJ90L-4 | YEJ90L-4 | |
Power | 1.5KW*2 | 1.5KW*2 | 1.5KW*2 | 1.5KW*2 | 1.5KW*2 | ||
Voltage | 380V,3phase | 380V,3phase | 380V,3phase | 380V,3phase | 380V,3phase | ||
Rotational speed | 1420rpm | 1420rpm | 1420rpm | 1420rpm | 1420rpm | ||
Braking moment | 15Nm | 15Nm | 15Nm | 15Nm | 15Nm | ||
Safety lock | Permission force of impact | 30KN | 30KN | 30KN | 30KN | 30KN | |
Locking Cable Angle | 3°~8° | 3°~8° | 3°~8° | 3°~8° | 3°~8° | ||
Suspension mechanism | Front beam overhang | 1.3~1.5m | 1.3~1.5m | 1.3~1.5m | 1.3~1.5m | 1.3~1.5m | |
Support adjustable height | 1.44~2.14m | 1.44~2.14m | 1.44~2.14m | 1.44~2.14m | 1.44~2.14m | ||
Counterweight | 1000kg | 1000kg | 1000kg | 1000kg | 1000kg | ||
20’ft container | 10sets | 9sets | 10 sets | 11sets | 11 sets | ||
40’ft container | 15sets | 14sets | 16 sets | 17 sets | 18 sets | ||
