Jinan Haoyang Casting & Forging Co., Ltd.: Shandong, China; Main products: Forged Grinding Ball, grinding steel ball, forged steel grinding ball

Home > Products > HY-GRINDING BALL > Forging Grinding Steel Balls With ISO,CE Certificate

Forging Grinding Steel Balls With ISO,CE Certificate

FOB Price

US$ 700 - 900 / Ton

1 Ton(Min. Order)

Port Qingdao or Tianjing
Payment TermsT/T Money Gram

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China	Brand Name	HY
Model Number	65MN,75MNCr,40MNCr	Application	a) Mines b) Cement plants c) Power stations d) Chemical industry
Material	Steel	Dimensions	balls, 20~150mm

Product Description

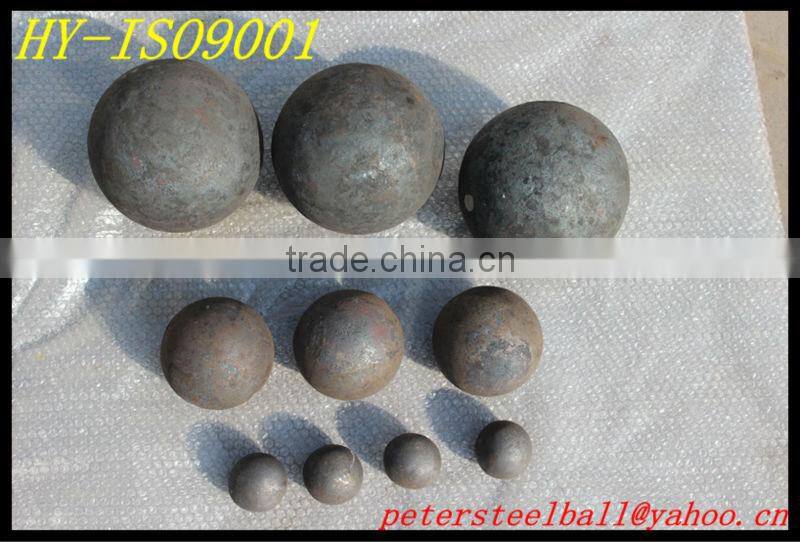

Specifications

1)High hardness; No breakage; Good wear resistance
2)HRC:50-65
3)Dia:20mm-150mm
4)Applied fields: a) Mines b) Cement plant

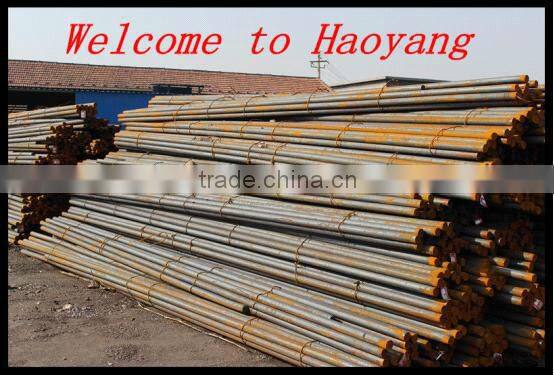

1.company profile:

Haoyang-a young company,we have enterprising heart, brave innovation. The annual output is 12,000 tons now .Our products have been exported to 6 countries and regions. The quality and price is our advantage.we are from HY:Give us a chance, we will make you satisfied.

2.Products features:

3.Chemcial Elements:

Material	C	Si	Mn	Cr	S	P
B2	0. 70%-0.85%	0.17%-0.37%	0.70%-0.80%	0.20%-0.70%	≤0.035%	≤0.035%
65Mn	0.62%-0.70%	0.17%-0.37%	0.90%-1.20%	<0.25%	≤0.035%	≤0.035%
60Mn	0.57%-0.65%	0.17%-0.37%	0.50%-0.80%	<0.25%	≤0.035%	≤0.035%
40Cr	0.37%-0.44%	0.17%-0.37%	0.50%-0.80%	0.80%-1.10%	≤0.035%	≤0.035%
45#	0.42%-0.50%	0.17%-0.37%	0.50%-0.80%	<0.25%	P:≤0.035%	P:≤0.035%

4.Specification and Hardness of Grinding Ball:

Nominal

diameter

(mm)

Diameteical

tolerance

(mm)

Weight of Single

of forging ball

in average

Number of piece of

One ton forging ball

in average

Surface

hardness

Impact

toughness

DIA 20

DIA 25

DIA 30

DIA 40

DIA 50

-1

110

263

513

31250

15625

9090

3802

1949

55-65

≥12

DIA 60

DIA 70

DIA 80

DIA 90

DIA 100

-2

888

1410

2104

2996

4110

1126

709

475

333

243

DIA 110

DIA 120

DIA 130

-2

5457

7102

9030

182

140

110

DIA 140

DIA 150

-3

11278

13871

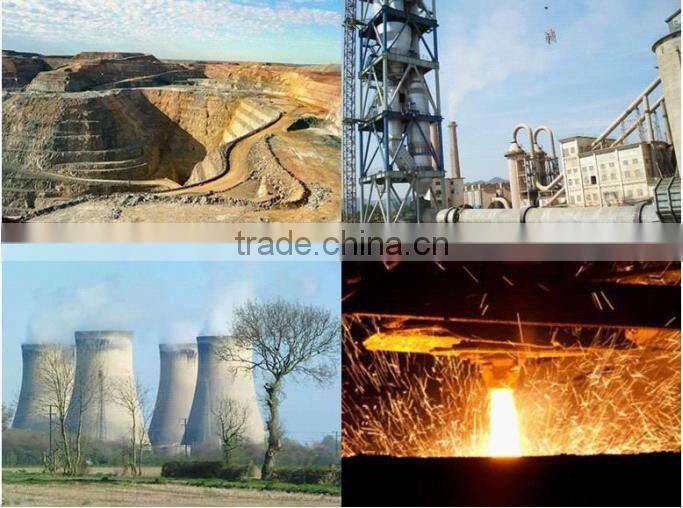

5.The application of industry:

a)mine b)cement c)power station d)refractory industries

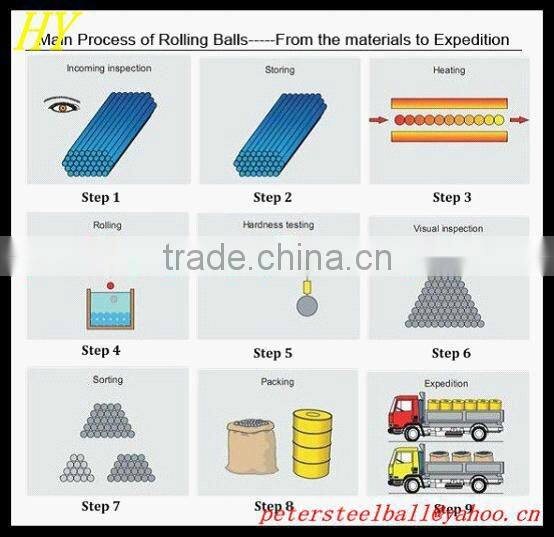

6.The process line of production:

raw materials-cutting-stove-forging-transfer maching-quenching-heat teratment-dimension test-hardness test-packag-transporttation/sea freight

7.Certificate:
