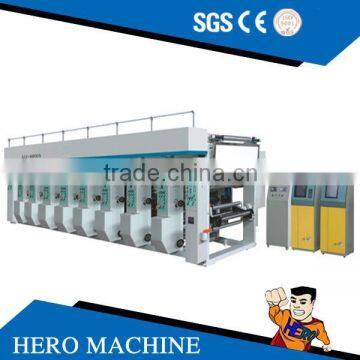

HERO BRAND High Speed 1-8 color Rotogravure Printing Machine Quality Choice Most Popular
- 20 Set / Sets per Month
- NINGBO
- T/T L/C Credit Card
You May Like
-
High Speed Foil PVC UV Stack BOPP PE Label Paper CUP Plastic Film Bag 2 6 8 4 Colour Flexographic Flexo Printing Machine Price
Most Popular
-
HERO BRAND knitting bag printing machine
-
CE Standard Cost Of Plastic Recycling Machine
Quality Choice
-
HERO BRAND recycled plastic bag making machine
-
HERO BRAND shopping bags recycle machine
-
CE Standard Paper PVC PET OPP PE BOPP Tape Slitting Machine
Product Details
| Condition | New | Place of Origin | Zhejiang, China | |
| Brand Name | HERO BRAND | Model Number | YAD | |
| Usage | Paper Printer | Automatic Grade | Automatic | |
| Voltage | 380V | Gross Power | 60KW | |
| Dimensions(L*W*H) | 10*1.8*2.3M | Weight | 4000KGS | |
| Certification | CE | Warranty | One and half years | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
rotogravure printing machine1.for plastic film,paper,pe,ldpe,pp,pet etc.
2.has 1-14colors
3.200-400M/mins
4.Germany Design
1). Description:
This machine is suitable for printing various plastic film (BOPP, PET, CPP, PE NYLON, PVC), thin paper, foil, and other reel type material. The printing speed is 100m/min, mechanical speed 120m/min.
1. Main driving structure: Controlled by INOVANCE frequency controlled motor, axle coupling driving.
Feature: Stable running.
2. Shaftless printing roller fixing System: adopt pneumatic cylinder fixing style to drive the printing roller core, and transverse adjustment through screw.
Feature: Swift printing roller replacement, so as to insure the concentric of printing rollers to improve printing precision.
3. Ink scraper structure: use air diaphragm pump to cycling and feeding ink; doctor blade slowing drive by low speed synchro-motor which can be up & down and angle adjusted; the pressure controlled by double pneumatic cylinder.
Feature: increase service life of printing roller and easy use.
4. Imprinting ascending and descending structure: controlled by twin pneumatic cylinder synchronous ascend and descend; oscillating arm type cylinder seat to insure the stability of material tension.
Feature: insure the pressure equalization, decrease chromatic aberration.
5. Overprint Mechanical hand: longitudinal automatic overprinting adjusted by micro-computer (through photocell detecting) and synchronous motor (through screw rod slow driving).
Feature: flexible, stable, and high overprint precision.
6. Rewinding and unwinding system: double stations, auto-cutting and connecting for rewinding, and controlled by moment motor; Rewinding traction adopt vector frequency controlled motor. Unwinding adopt magnetic powder brake constant tension controlling. Feature: low tension variety, to reduce waste and cost-cutting.
7. Drying & cooling system: drying tunnel wind cycling by centrifugal blower; temperature controlled by intelligent temperature controller; material cooling by singe unit wind cooling device.
Feature: insured drying and cooling effect, increase product quality.
2). Main Technical Specification:
Model | YAD-A8600 | YAD-A8800 | YAD-A81100 |
Printing width | 600mm | 800mm | 1100mm |
Precision of overprint | ±0.15mm | ±0.15mm | ±0.15mm |
Diameter of printing roller | 100-300mm | 100-300mm | 100-300mm |
Printing speed | 50-100m/min | 50-100m/min | 50-150m/min |
Diameter of material | 600mm | 600mm | 600mm |
Diameter of core | 76mm | 76mm | 76mm |
Voltage | 380V | 380V | 380V |
Fan power | Heat wind:1.5kw Cold wind:0.75kw Air draft: 2.2kw(each) | Heat wind:1.5kw Cold wind:0.75kw Air draft: 2.2kw(each) | Heat wind:2.2kw Cold wind:1.5kw Air draft: 3kw(each) |
Main motor power | 5.5kw | 5.5kw | 7.5kw |
Drying tunnel power | 9kw/color | 10kw/color | 12kw/color |
Total power | 115kw | 135kw | 145kw |
Overall dimensions | 12500x1950x2550mm | 12500x2150x2550mm | 12500x2450x2550mm |
Weight | 10000kg | 12000kg | 15000kg |
HERO BRAND High Speed rotogravure printing machine,rotogravure printing machine,gravure printing machine,gravure printing machine price
