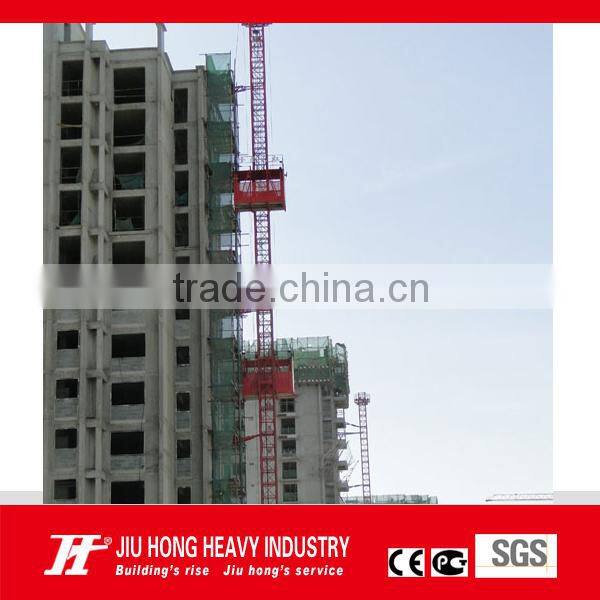

Construction material residential building elevations/Construction lifter

Specifications

Construction material residential building elevations/Construction lifter

1. external hoist equipment

2. internationally approved, hold certificates

3. years' expertise

4. cutting-edge technologies

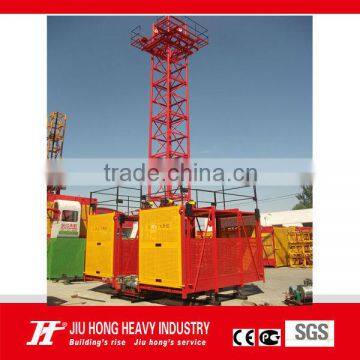

SS100/100 Material Hoist is a vertical handling machine dedicated for materials widely applied in building construction,

industrial and mining, multi-storey workshop, warehouse, station, wharf, etc. It is convenient, efficient, and secure.

SS100/100 is set up with safety multiple protection measures like Floor-selecting and Leveling Device,

Elevating Limiter, Rope Protection Device, Parking Safety Device, Bumper, Upper and Lower Height Restrictor,

Anti Rope-breaking Equipment, among which, the brake performance and brake slide distance

of the Rope Protector are above  national  standards. It is safe, reliable, and harmless to rail-track.

 1. Manual Control, which is direct control by the operator.

 2. Computer Automatic Positioning System (Optional for order), which can easily realize floor-selecting

and leveling without manual stop or point car leveling, reducing the difficulty of manipulation, convenient and precise.

SS100/100 adopts Wall-attaching Device instead of Wind Rope, along with self-erection

and dismantling unit (Derrick), easy for handling and transportation.

 SS100/100 has 2 types: Single-caged and Double-caged, optional for users.

The standard sections of Double-caged are 4 pieces of ø76 * 4 seamless steel pipes,

which can also be taken as guide rail, while those the Single-caged are 2 ø51 * 4 pipes.

 There are two accesses for Floor Selecting and Leveling:

1. Manual Control, which is direct control by the operator.

 2. Computer Automatic Positioning System (Optional for order), which can easily realize floor-selecting

and leveling without manual stop or point car leveling, reducing the difficulty of manipulation, convenient and precise.

 SS100/100 adopts Wall-attaching Device instead of Wind Rope, along with self-erection

and dismantling unit (Derrick), easy for handling and transportation.

 SS100/100 has 2 types: Single-caged and Double-caged, optional for users.

The standard sections of Double-caged are 4 pieces of ø76 * 4 seamless steel pipes,

which can also be taken as guide rail, while those the Single-caged are 2 ø51 * 4 pipes.

Parameter of  material elevator

SS100/100 Material Hoist
Technical Parameter of SS100/100 Material Hoist
Item		Unit	Parameter
Basic Installation Height		m	30
Attachment Installation Height		m	70
Rated Lifting Capacity		Kg	1000/1000
Lifting Speed		m/min	23.5
Cage Dimension (L*W*H)		m	2.8*1.5*1.9
Sectional Dimension Of Bracket		m	0.85*0.85
Motor Power		kw	Single-cage 7.5       Double-cage 15
Steel Rope Model			6*37+1-12-170-Right
Steel Rope Length(Typical)		m	150
Total Weight	Single-cage (at 30m)	kg	4060
	Double-cage (at 30m)	kg	485

SS100/100 Material Hoist
Technical Parameter of SS100/100 Material Hoist
Item		Unit	Parameter
Basic Installation Height		m	30
Attachment Installation Height		m	70
Rated Lifting Capacity		Kg	1000
Lifting Speed		m/min	23.5
Cage Dimension (L*W*H)		m	2.8*1.5*1.9
Sectional Dimension Of Bracket		m	0.85*0.85
Motor Power		Kw	Single-cage 7.5
Steel Rope Model			6*37+1-12-170-Right
Steel Rope Length(Typical)		m	150
Total Weight	Single-cage (at 30m)	Kg	4060



We can make 30m,50m,60m,70m,72m to 90m.



Main parts as below:

A:  Cage with wheelhouse

Electric system of high quality

Wonderful power motor



mast section with good material

Certification of CE,GOST,CCC and so on
