FTH12-15-18m Concrete Spreader China Manufacturer

FOB Price

US$ 2,200 - 98,000 / Set

1 Set(Min. Order)

Port any port in China
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Beijing, China		Brand Name	JH-jiuhong
Model Number	12-15-18M		After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Product Application

Concrete Spreader is a new product to expend concrete pouring range and raise the level of mechanization of pumping construction.Which is ancillary equipment of concrete pump,connection with the concrete pump,expanding the range of concrete pumping.Solved the problem of pouring cloth wall effectively,also improved construction efficiency,reduced labor intensity.There are Manual Concrete Distributor and Hydraulic Concrete Distributor in the market.

Our company mainly produce manual concrete distributor.It designed rational with full swing arm frame fabric structures,operated manually.structure is stable and reliable,turned flexible,360-degree forward and reverse rotation.Can changed fabrics orientation only pulling the rope.

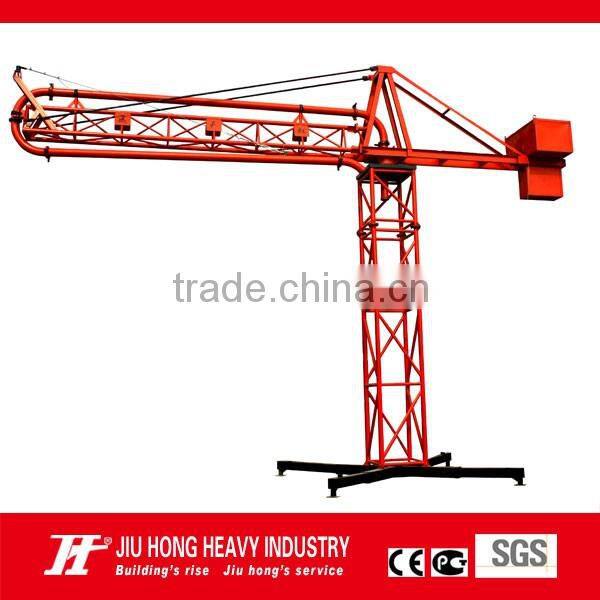

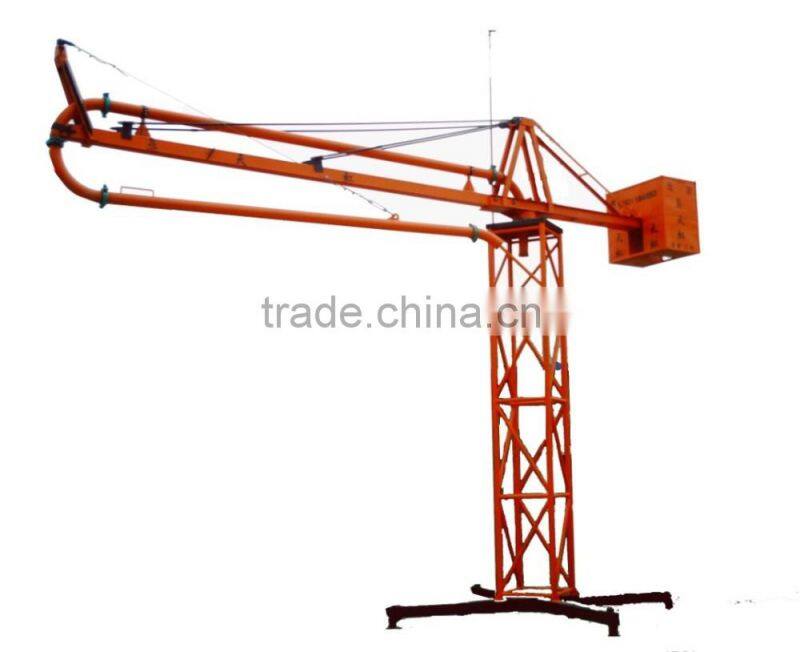

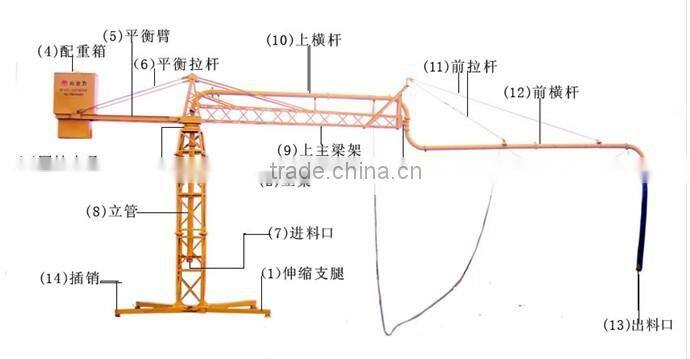

12m concrete placing boom
1.expand the scope of concrete pouring
uce labor intensity
3.simple operation

Product parameters

Model	FTH-12	FTH-15	FTH-18
Rotation mode	Manual	Manual	Manual
Max Turning radius	12m	15m	18m
Jib turning radius	6m	7.5m	9m
Bearing block height	5m	5m	6m
Effective height	5.4m	5.4m	6.4 m
Landingleg max span	3.4m×3.4m	3.4m×3.4m	5.8m×5.8m
Self weight	1300kg	1400kg	1700kg
Counterweight(self-provide)	1200kg	1500kg	1800kg

Detailed Images

Precautions
1.To keep the appearance and internal cleaning,after use,must be carefully cleaned,does not allow concrete residue.
2.Cantilever pump tube and vertical pump tube connect with both side of the main beam pipe bends .tube is not too tight.
3.Slewing should be regularly oiling,shot butter every 100 hours of working.
4.The machine must be installed on a solid level area.
5.stop work more than 5 wind force.And required the user to take precautions to avoid losses.

Why us ?
Some of the factors that have brought us credibility in this competitive business are:
Quality of the products that we supply
Large production capacity
Large production line
Wide distribution network
Competitive pricing
Good after sales support.

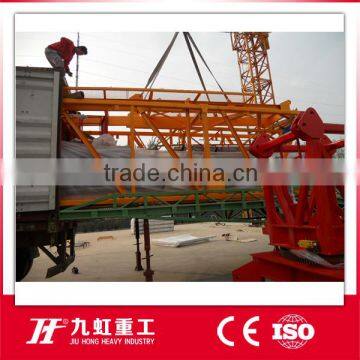

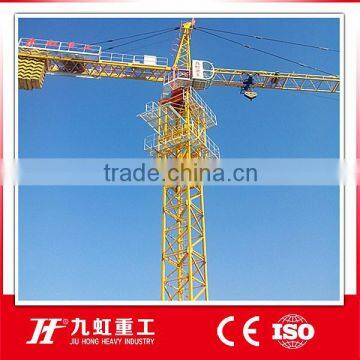

Engineering Case

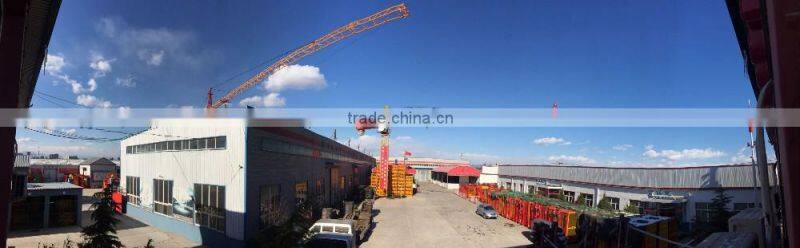

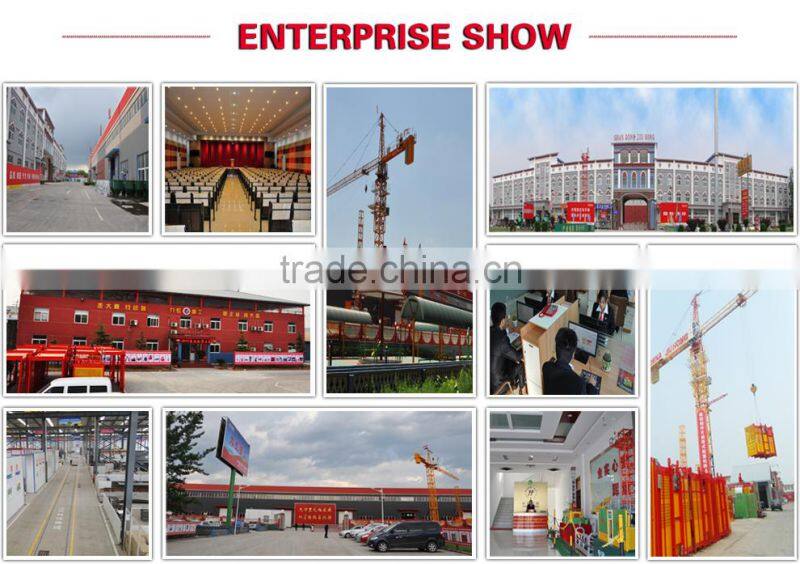

Factory Profile

Exhibition

Customer Visit

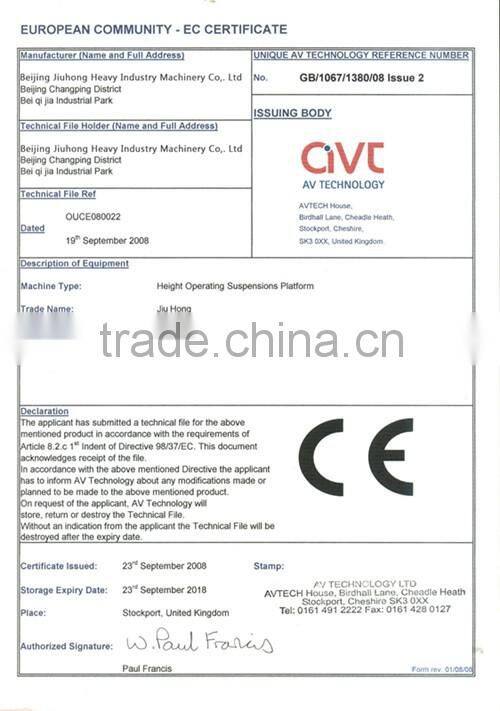

Certifications

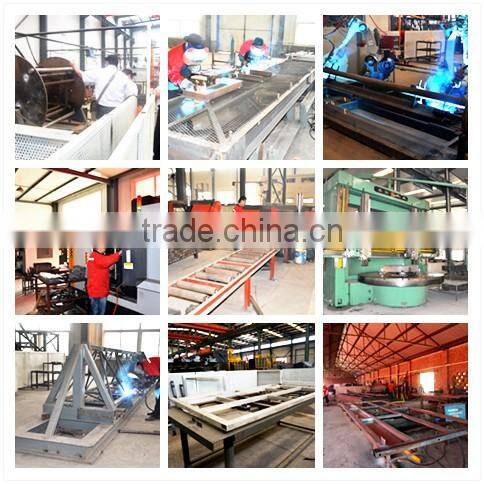

Production flow
