Product Details
| Condition | New | Place of Origin | Zhejiang, China | |
| Brand Name | WeiGang | Model Number | WQ-320 Screen Printing Machine | |
| Usage | Card Printer, Label Printer, Paper Printer, Other, Card Printer, Label Printer, Paper Printer, opp,pvc security label | Automatic Grade | Automatic | |
| Voltage | 220Vd10% | Gross Power | 1200W | |
| Dimensions(L*W*H) | 2.4(L) X0.95 (W) X1.5 (H) M | Weight | 1100KG | |
| Certification | CE | Warranty | 1year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

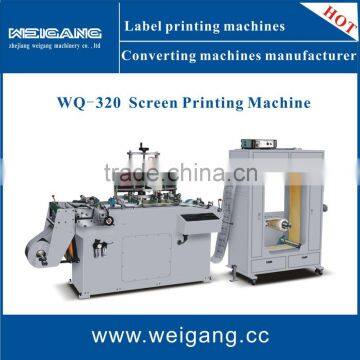

WQ-320 Silk screen printing machine
WQ-320 series CNC silk screen printing machine is applicable for printing on variety of material, like PVC, OPP, ant counterfeit trademarks and adhesive labels, and more. It can finish printing, drying and rewinding at one stroke.
Weigang Machinery Company is a professional silk screen printing machine manufacturer and supplier based in China .We have been ISO 9001:2008 certified ,In addition to silk screen presses , we can also provide flexo printing machines, offset printing equipment and die-cutting machinery, and more. All our products are CE certified and are sought after by customers from the United Stated, Spain, Portugal, Russia, South Korea, among over 50 countries.
Characteristics:
Yaskawa CNC controlled servo motor purchased from Japan is employed for roll material feeding .The main transmission part of our silk screen printing press is pneumatically controlled. Meanwhile, a SILK brand photoelectric tracking device imported from German is also equipped to guarantee high precision printing.
Hence, our screen printers are characterized by high precision color registration, steady material feeding, and simple adjustment .Functions like auto metering and counting are also available.
Main Equipment:
Description | Quantity and Brand |
Servo motor | 1piece Yaskawa( Japan) |
Driver | 1piece Yaskawa (Japan) |
Inverter | 1piece Schneider (France) |
Web-guiding photocell switch: | 2pcs KONTEC KS-C2G( Taiwan) |
Tracking photocell switch: | 1 piece SICK NT6(Germany) |
Air cylinder | 1piece SMC( Japan) |
Main motor: | 1 piece Wannan Motor(China) |
All Button: | 1piece Schneider (France) |
Main Technical Parameters:
Printing speed: | 10-50 times/min |
Max unwinding diameter: | 450mm |
max web width: | 320mm |
Max printing width: | 300mm |
Max printing length: | 320mm |
Localization accuracy: | ±0.15mm |
Main motor power: | 1200w |
Oven power: | 4100w |
Main machine dimension: | 2.4(L)x0.95(W)x1.5(H)(m) |
Over dimension: | 1.75(L)x0.6(W)x1.8(H)(m) |
Machine weight: | about1100kg |
