Home > Products > Open Frame Monitor > 15" Screen Size Open Frame HDMI Monitor with Touchscreen VGA DVI Input
15" Screen Size Open Frame HDMI Monitor with Touchscreen VGA DVI Input
- 10000 Unit / Units per Month
- SHENZHEN
- Credit Card
Product Details
Products Status: | Stock | Type: | Industrial Monitor | Brand Name: | LILLIPUT |
Model Number: | TK1500-NP/C/T | Place of Origin: | China |
Product Description

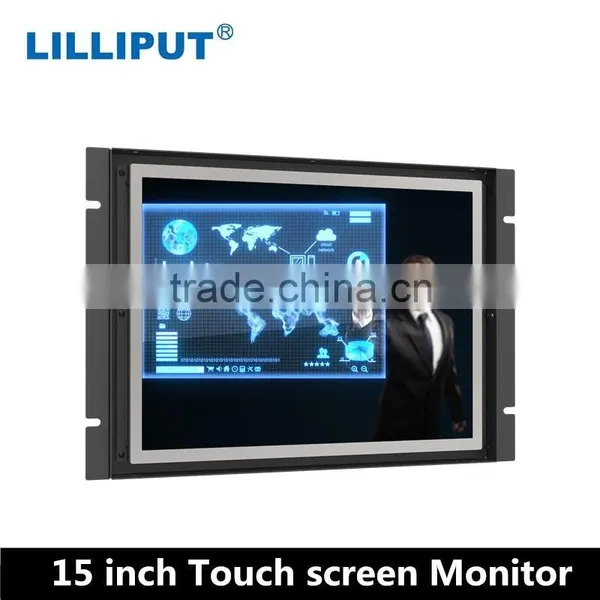

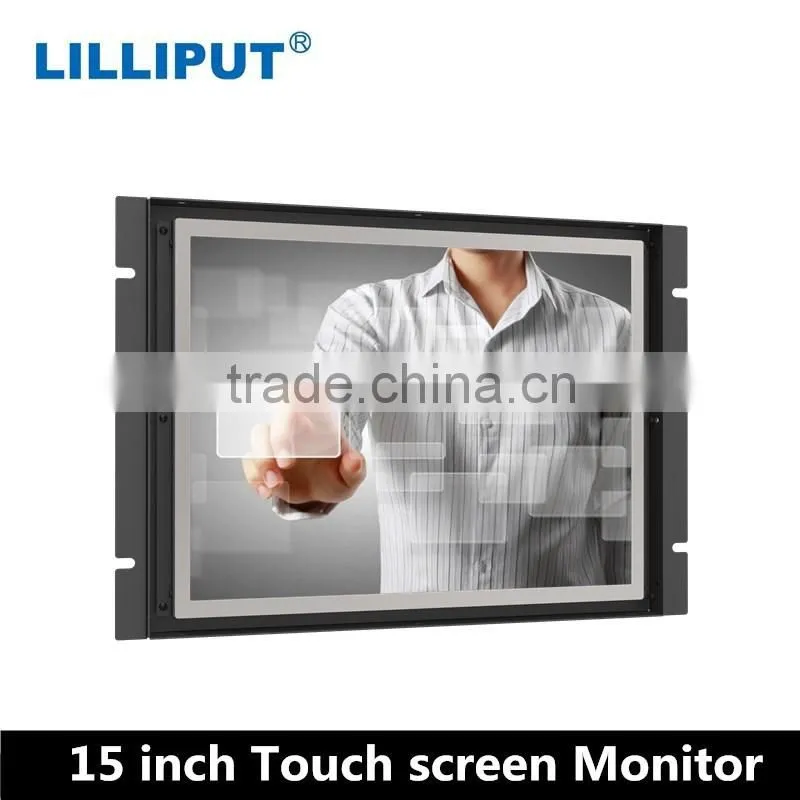

15" Screen Size Open Frame HDMI Monitor with Touchscreen VGA DVI Input
Lilliput 15“ Industrial Touch Monitor Open frame design for optional.
Industrial touch monitor series for embedded display solutions.
Note: TK1500-NP/C without touch function.
TK1500-NP/C/T with touch function.
Display:
15" LED display panel with 1024×768 native resolution, viewing area much bigger than 10.1" display.
Appearance:

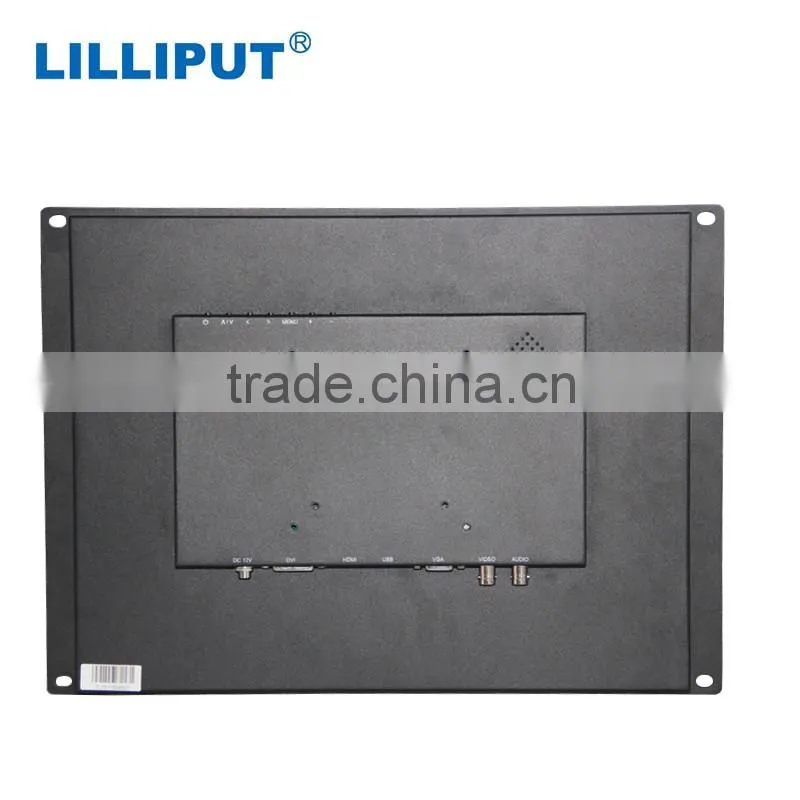

Lilliput LED industrial touch monitor series that supports rear mount (open frame) and VESA 75mm/100mm standard mounting with integrated bracket. A metal housing & bezel-less design with slim and firm features making efficient integration into any embedded display applications.

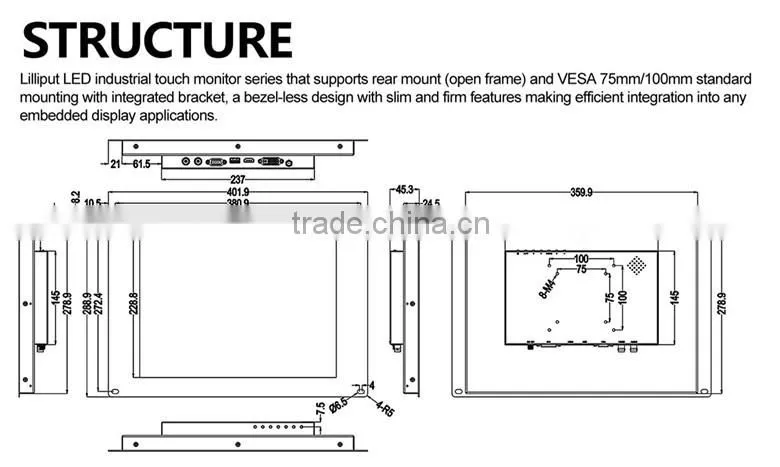

Structure:
Lilliput LED industrial touch monitor series that supports rear mount (open frame) and VESA 75mm/100mm standard mounting with integrated bracket, a bezel-less design with slim and firm features making efficient integration into any embedded display applications.
Application:
KIOSK / POS machine
Transportation machine
Ticketing machine
Financial ATM Entertainment
Gaming machine
HMI equipment controller monitor
Public communication machine Public advertisement machine
DISPLAY | Panel | 15" LED backlit |
Physical Resolution | 1024×768 | |
Touch Panel | 5-wire resistive | |
Aspect Ratio | 4:3 | |
Brightness | 300cd | |
Contrast | 1500:1 | |
Viewing Angle | 170°/170°(H/V) | |

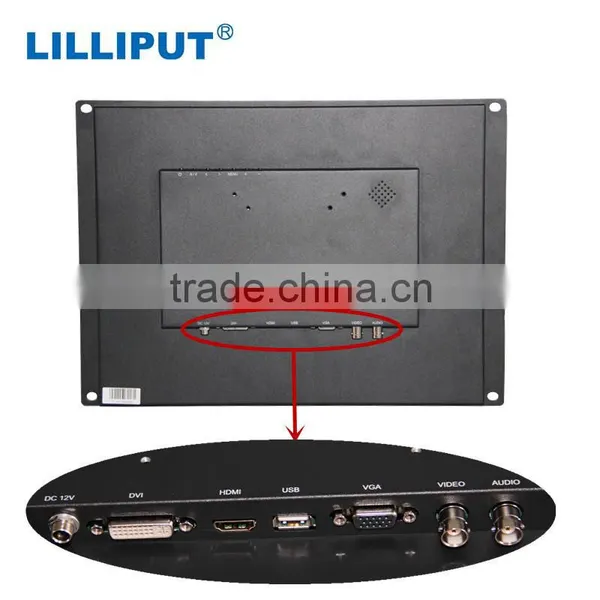

INPUT | HDMI | 1 |
DVI | 1 | |
VGA | 1 | |
USB | 1 (for touch function) | |
Audio (BNC) | 1 | |
Video (BNC) | 1 | |
POWER | Current | 1200mA |
Input Voltage | DC 12V | |
Power Consumption | ≤15W | |
ENVIRONMENT | Operating Temperature | -20℃~60℃ |
Storage Temperature | -30℃~70℃ | |
DIMENSION | Dimension(LWD) | 402×289×45.5mm |
Mounting Method | VESA 75mm / 100mm, rear mount | |
Weight | 3.2kg / 2.8kg (without touch panel) |
