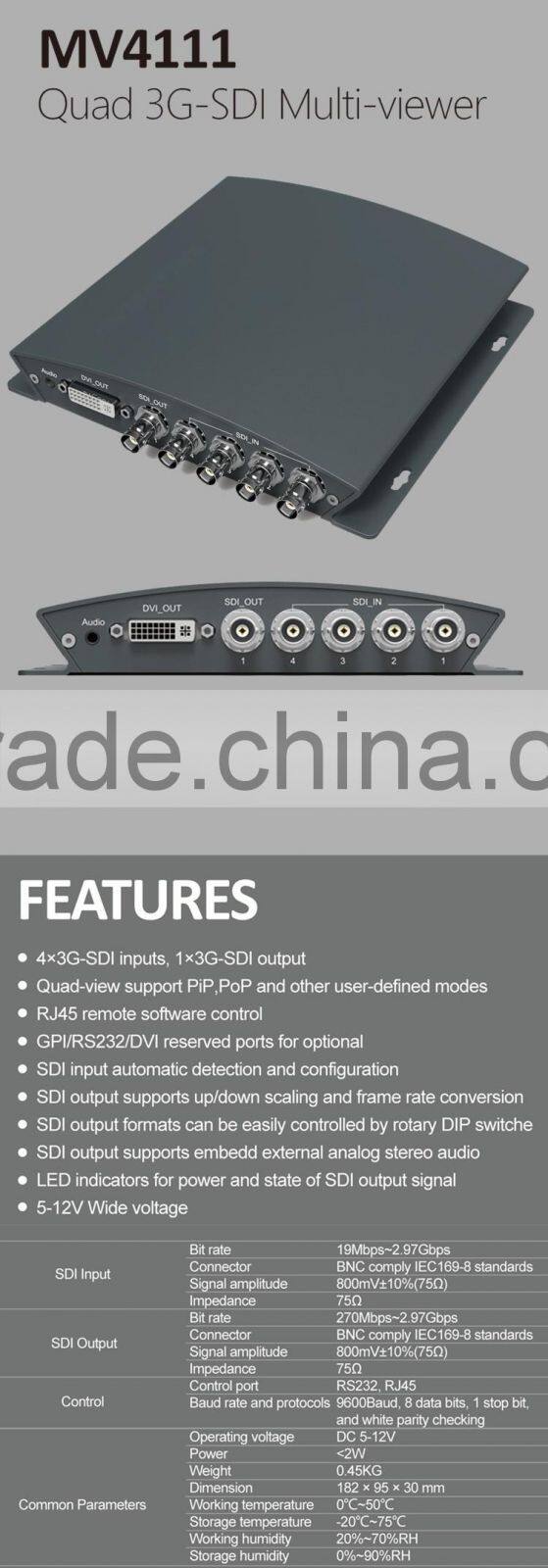

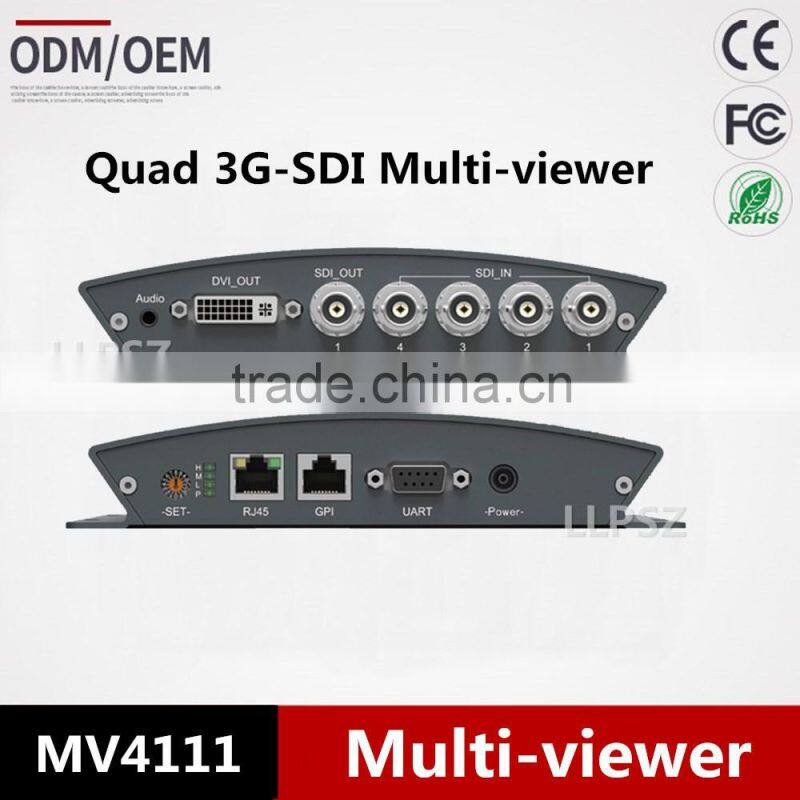

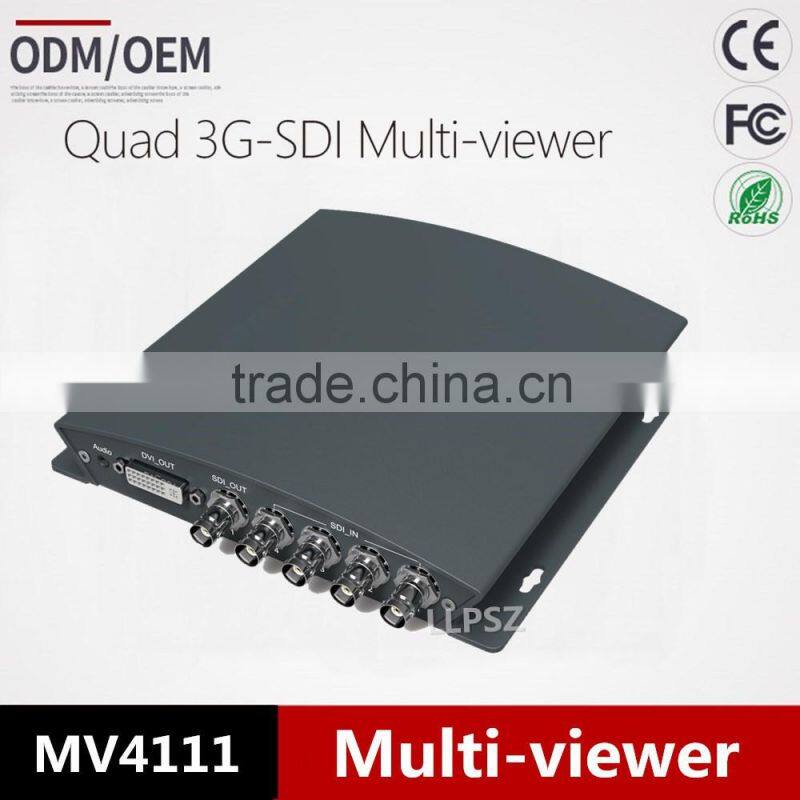

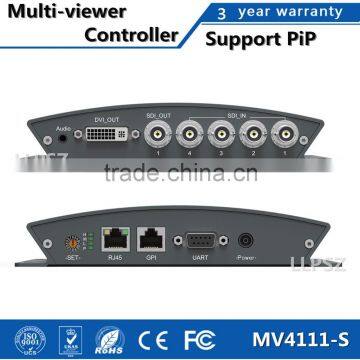

3G-SDI Multi-viewer Controller support PiP 4x3G-SDI inputs, 1x3G-SDI output
Features:
4x3G-SDI inputs, 1x3G-SDI output
Quad-view support PiP, PoP and other user-defined modes
RJ45 remote software control
GPI / RS232 / DVI reserved ports for optional
SDI input automatic detection and configuration
SDI output supports up / down scaling and frame rate conversion
SDI output formats can be easily controlled by rotary DIP switche
SDI output supports embedd external analog stero audio
LED indicators for power and state of SDI output siganl
5-12V Wide voltage
MV4111 is a quad-view 3G-SDI multi viewer, which supports PIP, POP or other user-definde modes.
Multiple formats can be easily controllde by rotary DIP switch as well as RJ45 remote software control.
What we can do:
1. All of our products have proceeded aging test before shipment and we guarantee to use our products safety.
2. Support imprint your logo on the products.
3. OEM/ODM orders are warmly welcome.
4. Any special need concerning the accessories or the design of the cabinet please let us to know without any hesitation, your contact with be highly appreciated.
