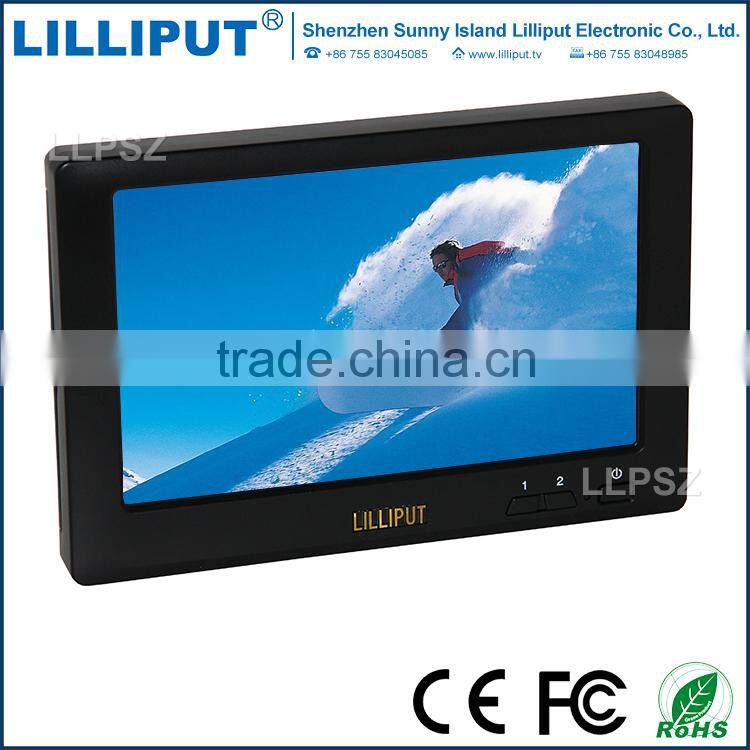

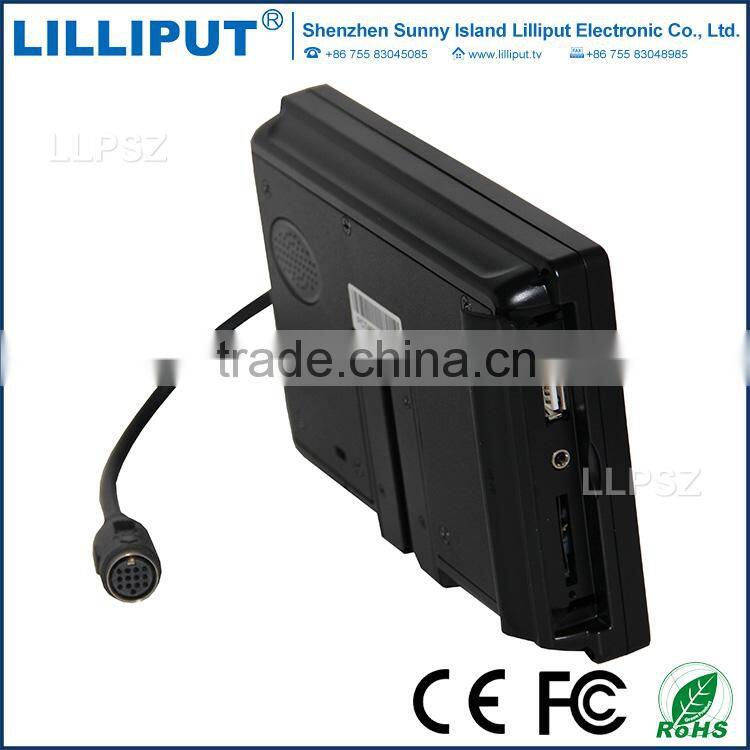

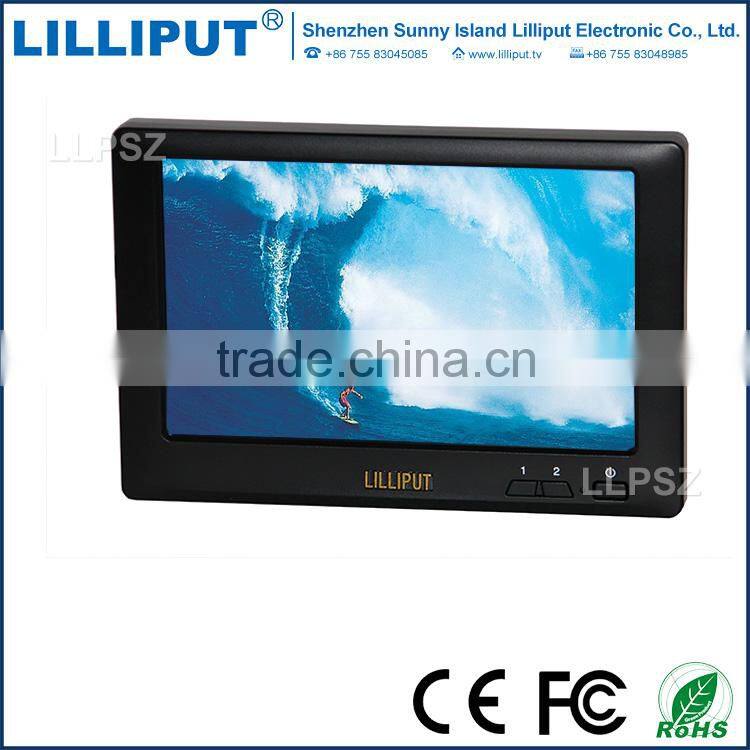

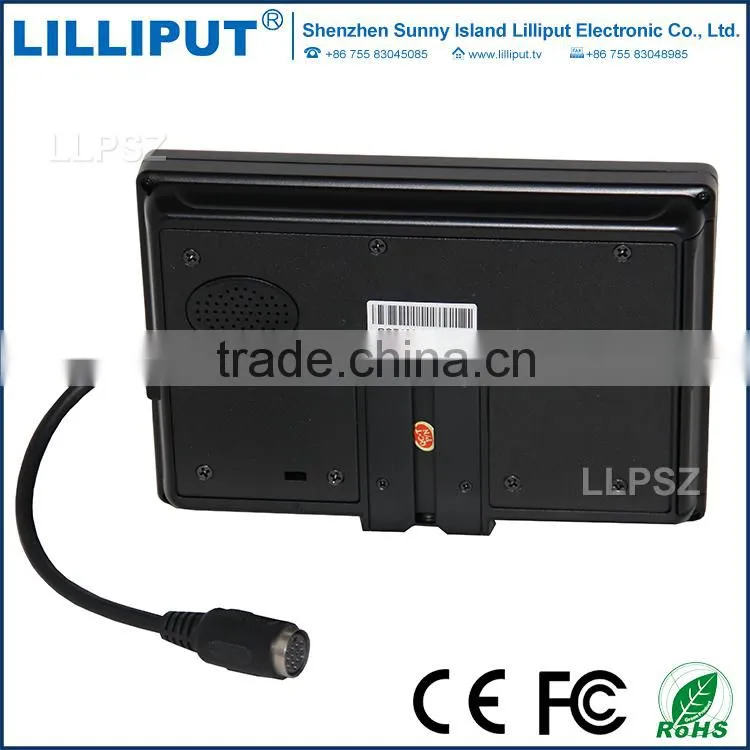

| China Goods Wholesale Embedded Systems |
| Model Number: PC-746 |
| Features: |
| Using industrial-grade embedded platform, the system is stable and reliable, it has rich interfaces. |
|
Wireless communication, GPS navigation, fault detection, video acquisition and other functions, extensible to provide users with a powerful vehicle-mounted mobile multimedia information systems. |
|
It can be widely used in personal entertainment, emergency command, transportation scheduling, mobile office, multimedia advertising, industrial control and other fields. |
| Optional: |
| Optional: 3G, Wi-Fi (802.11 b/g/n), Bluetooth. |
| Applications: |
| Information Display |
| · Digital Signage |
| · Advertising Terminal |
| · Service Kiosk |
| · Industrial Control |
| · Equipment Matching |
| · In-Home Control Device |
| · Smart Energy Application |
| · Security & Surveillance |
| · General Communication |
| · Distance Data Acquisition |
| Basic A/V Playe |
Display Screen |
7" LED backlit |
Resolution |
800×480 (1,152,000 pixels) |
Touch Panel |
4-wire resistive |
Brightness |
300cd/m2 (optional:450cd/m2) |
Aspect Ratio |
16:9 |
OS |
Windows CE 5.0 / 6.0, Linux 2.6.32 |
CPU |
Samsung S3C2416, 400MHz processor |
Memory |
512MB Flash ROM + 128 MB DDR2 RAM |
Expansion Storage |
SD card, up to 8GB |
Transfer Interface |
USB × 2, RS232 × 4 |
Speaker |
1W |
Power Consumption |
8W |
Working Temperature |
-10 - 65ºC |
Storage Temperature |
-25 - 80ºC |
Power Supply |
DC 12V |
Dimension(LWD) |
184.6 × 125 × 33 mm |
Weight |
615g |
| Accessories: |
| 13-pin to 4× RS232 and Power cable: 1 Piece |
| USB Cable: 1 Piece |
| DC 12V Home Power: 1 Piece |
| Touch pen: 1 Piece |
| Driver Disk: 1 Piece |
| Operation Manual: 1 Copy |
