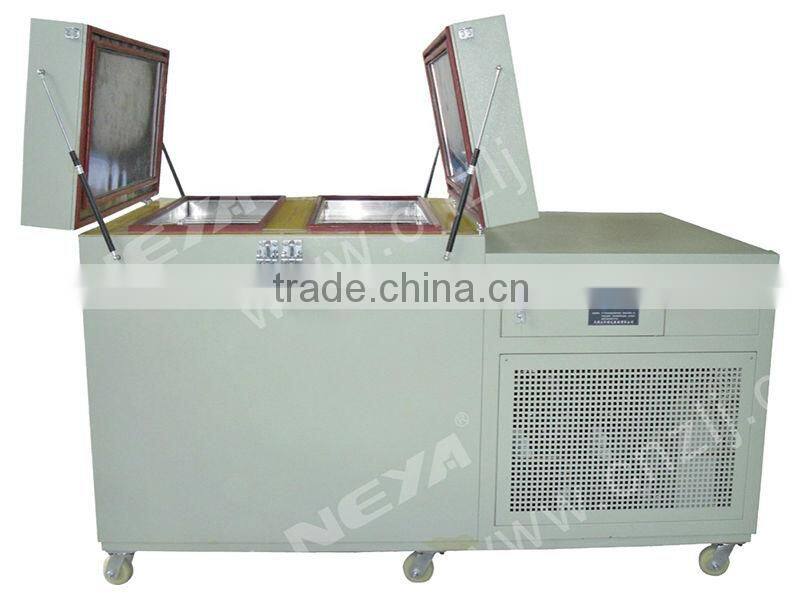

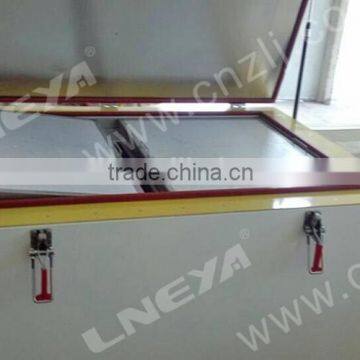

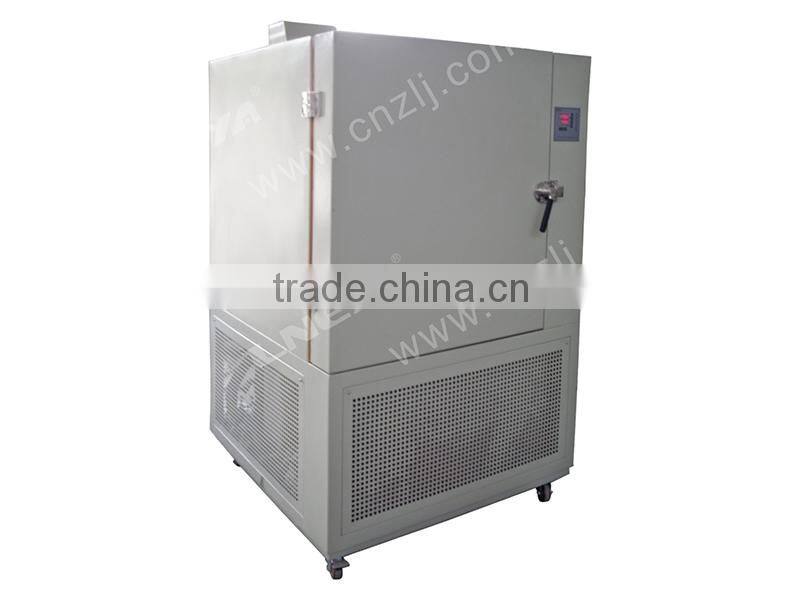

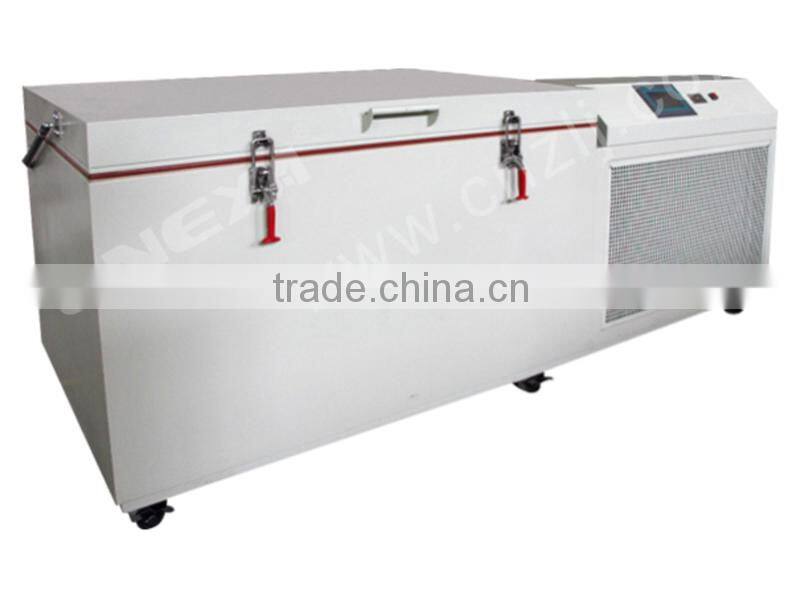

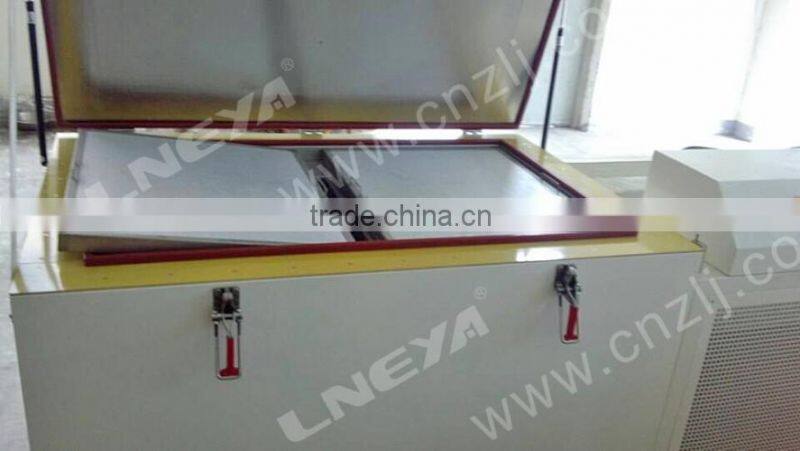

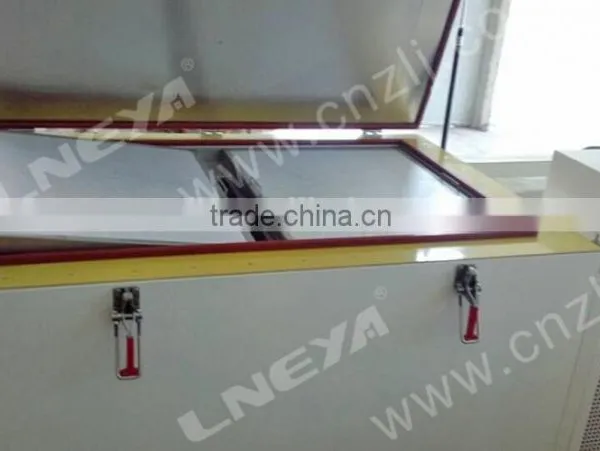

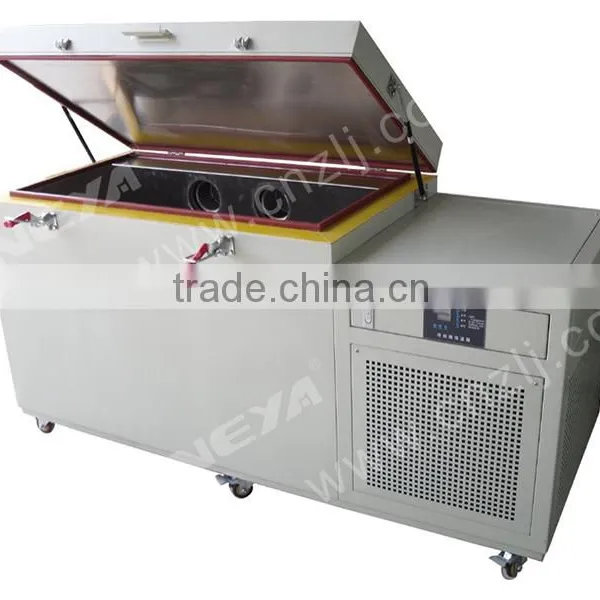

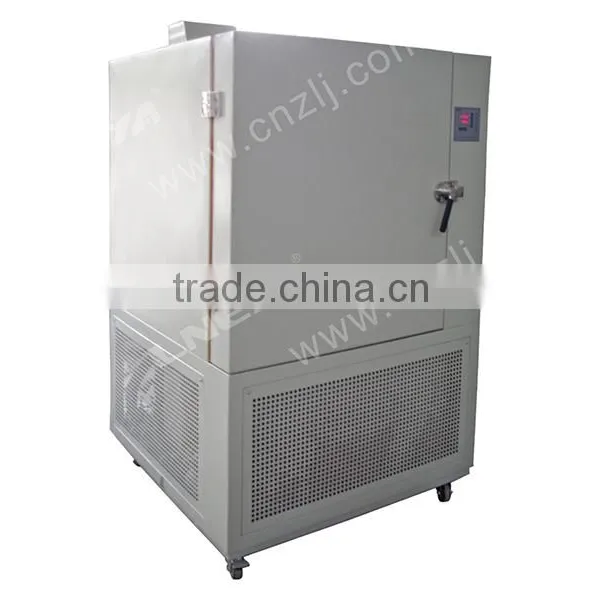

Help CenterIndustrial Cryogenic Box Treatment Industial Low Temperature Refrigerator Deep Freezer Upright Chest Type
Related Products
-
CE Industrial Cryogenic Box Treatment Industial Low Temperature Refrigerator Deep Freezer Upright Chest Type -150 DegreeNegotiableMOQ: 1 Set -
Effcient Temperature Control System Standard One Operating Two System SUNDI -40~200 Degree.US$ 10,000 - 100,000MOQ: 1 Set
-
China Produved High Efficient Industry Cryogenic Refrigerator GX/GY SeriesNegotiableMOQ: 1 Set
-
-120~200degree Two-level Compressor Single Liquid Temperature Control System SR-10NegotiableMOQ: 1 Set
-
-120~200 Degree CE Certification Two-level Compressor Single Liquid Temperature Control System SR-10NegotiableMOQ: 1 Set
Specifications
temperature range -20 ~ -125degreeSuitable for mechanical producing plant use.
Can be produced within -100degree100cubi
Overview:
- Microcomputer control, cascade temperature controller, digital temperature display, the regulation of unit 0.1°C, inside the temperature range -20 °C ~ -125 °C adjustable.
- Multi-safety protection, more reliable operation.
- France TECUMSEH compressor, Germany DANFOSS compressor, EMERSON compressor, automatic cascade refrigeration technology.
- With self-diagnosis function, freezer overload protection, high pressure switches, overload relays, thermal protection device and other security functions, and fully guarantee the use of safety.
- Three sealed mold layer of insulation, Extra-thick high-density polyurethane foam insulation layer, the effect of good insulation; Inline vacuum insulation panels.
- Human design, more convenient and flexible.
- Suitable for mechanical producing plant use.
- Large condenser design, fully guaranteed plant environment cooling effect.
- Wide volume ratio design, large load capacity design.
- Can be set to open compressors and compressor off temperature.
- Fault alarm (over-temperature alarm, sensor alarm, high alarm, overheat alarm compressor.
- Delay boot protection.
- So grounding components safely.
- LED display, clear display inside temperature and the desire temperature; can set the over temperature alarm and the inside temperature, fault prompt functions.
- Non-standard sizes can be customized, Ultra-low temperature freezer (can be produced within -100°C 100 cubic).
- Optional equipments: PLC controller, color touch-screen, temperature recorder etc.
Application:
It is mainly used in industrial refrigerating treatment, so that the matrix of the metal structure to generate a uniform, fine and dispersed precipitation. The precipitation of carbide will improve the abrasion resistance, friction performance and increase hardness of metal. The carbide is the ideal alternative to liquid nitrogen.
For the copper sleeve and bearings contracting, it is widely used in precise mechanical assembly. Applied to large scale equipment(cars, large engineering machineries, aircraft component, Aerospace equipment parts, Military equipment parts etc.) lower temperature test.
Model |
Volume L |
Working Temp. Range |
capacibility Carrying |
Refrigeration machine |
Refrigerant |
Interface W*D*H(mm) |
Dimensions W*D*H(mm) |
Transducer |
Power |
GX-6528 |
280L vertical |
-65~-20 |
150kg |
Air-cooled |
R404A R23 |
610*600*760 |
1150*1150*1750 |
PT100 |
380V 50HZ |
GY-6528 |
280L horizontal |
-65~-20 |
150 kg |
800*600*600 |
2100*1100*1050 |
||||
GX-6540 |
400L vertical |
-65~-20 |
220 kg |
800*600*850 |
1300*1150*1800 |
||||
GY-6550 |
500L horizontal |
-65~-20 |
250 kg |
1200*650*650 |
2600*1100*1100 |
||||
GX-6580 |
800L vertical |
-65~-20 |
300 kg |
1000*800*1000 |
1500*1350*1950 |
||||
GY-6580 |
800L horizontal |
-65~-20 |
300 kg |
1300*800*800 |
2700*1250*1200 |
||||
GY-65A2 |
1600L horizontal |
-65~-20 |
1000 kg |
2000*900*900 |
3700*1400*1300 |
||||
GX-8028 |
280L vertical |
-80~-20 |
150kg |
Air-cooled Water-cooled |
R404A R23 |
610*600*760 |
1150*1150*1750 |
380V 50HZ |
|
GY-8028 |
280L horizontal |
-80~-20 |
150 kg |
800*600*600 |
2100*1100*1050 |
||||
GX-8040 |
400L vertical |
-80~-20 |
220 kg |
800*600*850 |
1300*1150*1800 |
||||
GY-8050 |
500L horizontal |
-80~-20 |
220 kg |
1200*650*650 |
2600*1100*1100 |
||||
GX-80A0 |
1000L vertical |
-80~-20 |
350 kg |
1000*1000*1000 |
1500*1550*1950 |
||||
GY-80A0 |
1000L horizontal |
-80~-20 |
350 kg |
1400*850*850 |
2800*1300*1250 |
||||
GY-80A2 |
1600L horizontal |
-80~-20 |
1000 kg |
2000*900*900 |
3800*1400*1300 |
||||
GX-A040 |
400L vertical |
-105~-60 |
220 kg |
Air-cooled Water-cooled |
R404A R23 |
800*600*850 |
1300*1150*1800 |
PT100 |
380V 50HZ |
GY-A050 |
500L horizontal |
-105~-60 |
220 kg |
1200*650*650 |
2600*1100*1100 |
||||
GX-A0A0 |
1000L vertical |
-105~-60 |
350 kg |
1000*1000*1000 |
1500*1550*1950 |
||||
GY-A0A0 |
1000L horizontal |
-105~-60 |
350 kg |
1400*850*850 |
2850*1300*1250 |
||||
GY-A0A2 |
1600L horizontal |
-105~-60 |
1000 kg |
2000*900*900 |
3800*1400*1300 |
||||
GY-A228 |
280L horizontal |
-120~-60 |
150 kg |
Air-cooled Water-cooled |
R404A R23 |
800*600*650 |
2200*1100*1100 |
||
GY-A240 |
400L horizontal |
-120~-60 |
220 kg |
1200*650*650 |
2600*1150*1100 |
||||
GY-A2A0 |
1000L horizontal |
-120~-60 |
350 kg |
1400*850*850 |
2800*1300*1250 |
||||
GY-A350 |
500L horizontal |
-135~-80 |
300 kg |
Air-cooled Water-cooled |
R404A R23 R50 |
1200*650*650 |
2600*1100*1100 |
PT100 |
380V 50HZ |
GY-A3A0 |
1000L horizontal |
-135~-80 |
500 kg |
1500*800*800 |
2900*1300*1250 |
||||
GY-A550 |
500L horizontal |
-150~-90 |
300 kg |
1200*650*650 |
2600*1100*1100 |
||||
GY- |
Because most of the cooling eqiupment are made according to the customer’s requirements,so please provide the following specifications
1, The maximum loading capacity,
2, Tank size: length, width and height,
3, The time of full load to cooling to target temperature.
