SUND -25 TO 200 Degree Control System is Very NoveltyUS$ 1 - 1,000MOQ: 1 Set
-
SUND -25 TO 200 Degree Control System With Good TechnologyUS$ 1 - 1,000MOQ: 1 Set
Technical Parameters:
Model |
SUNDI-225W-2T SUNDI-225-2T |
SUNDI-235W-2T SUNDI-235-2T |
SUNDI-255W-2T SUNDI-255-2T |
SUNDI-275W-2T SUNDI-275-2T |
SUNDI-2A10W-2T SUNDI-2A10-2T |
|
Temperature range℃ |
-30℃~180℃ |
-25℃~200℃ |
-25℃~200℃ |
-25℃~200℃ |
-25℃~200℃ |
|
Control Mode |
Feed forward PID + Our special dynamic control calculation, PLC controller |
|||||
Temp. control |
Option: process temperature control or jacket oil temperature control |
|||||
Temp. difference |
Set or control the temperature difference between jacket oil and raw material process |
|||||
Communication protocol |
MODBUS RTU Protocol, RS 485 Interface |
|||||
Temperature feedback |
Heat-conducting medium: PT100 Raw material process: PT100 or 4~20mA |
|||||
Temp. accuracy |
±1℃ |
±1℃ |
±1℃ |
±1℃ |
±1℃ |
|
Heating power |
2.5kW |
3.5kW |
5.5kW |
7.5kW |
10kW |
|
|
Cooling capacity |
200℃ |
4kW |
6kW |
8kW |
12kW |
17kW |
100℃ |
4kW |
6kW |
8kW |
12kW |
17kW |
|
20℃ |
4kW |
6kW |
8kW |
12kW |
17kW |
|
0℃ |
3kW |
5kW |
6kW |
10kW |
15kW |
|
-20℃ |
2kW |
3.2kW |
4kW |
6kW |
7kW |
|
Circulation pump |
Max15L/min 1BAR |
Max35L/min 2.5BAR |
Max35L/min 2.5BAR |
Max50L/min 2.5BAR |
Max50L/min 2.5BAR |
|
Compressor |
Tecumseh |
Copeland |
Copeland |
Copeland |
Copeland |
|
Expansion valve |
LNEYA |
LNEYA |
LNEYA |
LNEYA |
LNEYA |
|
Oil separator |
LNEYA |
LNEYA |
LNEYA |
LNEYA |
LNEYA |
|
Evaporator |
KAORI Plate heat exchanger |
|||||
Optional |

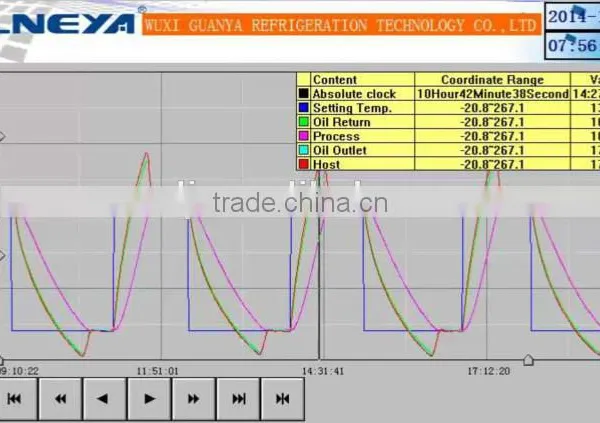

7-inch color touch screen controller, temperature curve record, data export to excel format. |
|||||
Safety protection |
Self-diagnosis function; freezer overload protection; high pressure switch, overload relay, thermal protection device, liquid low level protection, high temperature protection and temperature fault protection. |
|||||
Closed |
The whole system is full closed circulation, there is no oil mist at high temperature and no water vapor at low temperature, pressure do not rise up when system is running. The system will supplement oil automatically at low temperature. |
|||||
Refrigerant |
R-404A |
R-404A |
R-404A |
R-404A |
R-404A |
|
Connection size |
DN-20 or M24*1.5 |
DN20 or M30*1.5 |
DN20 or M30*1.5 |
DN20 or M30*1.5 |
DN20 or M30*1.5 |
|
|
Water-cooled type W (cooling water at 20℃) |
1000L/H 1.5bar~4bar |
1200L/H 1.5bar~4bar |
1400L/H 1.5bar~4bar |
1700L/H 1.5bar~4bar |
2100L/H 1.5bar~4bar |
|
Dimension |
water-cooled |
400*600*1250 |
550*700*1350 |
550*700*1350 |
600*700*1550 |
650*700*1550 |
air-cooled |
450*600*1350 |
700*700*1450 |
750*750*1650 |
1050*750*1300 |
1150*800*1350 |
|
Weight |
water-cooled |
180kg |
245kg |
300kg |
350kg |
400kg |
air-cooled |
205kg |
280kg |
340kg |
385kg |
445kg |
|
Power |
AC 220V 50HZ 6.2kW (max) |
AC 380V 50HZ 10.5kW (max) |
AC 380V 50HZ 15kW (max) |
AC 380V 50HZ 21kW (max) |
AC 380V 50HZ 28.5kW (max) |
|
Case material |
SUS 304 |
SUS 304 |
SUS 304 |
SUS 304 |
SUS 304 |
|
Optional |
Optional Ethernet interface, configure the computer operating software |
|||||
Optional |
Optional outside touch screen display controller (separated),the communication line distance is 10 meter. |
|||||
Optional power |
220V 60HZ three-phase, 440V~480V 60HZ three-phase |
|||||
