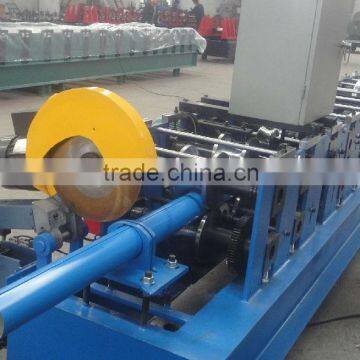

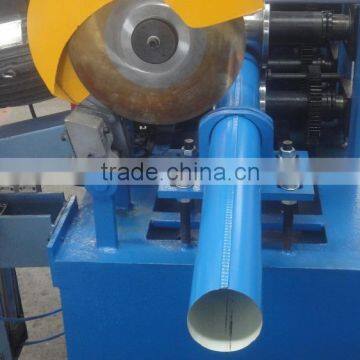

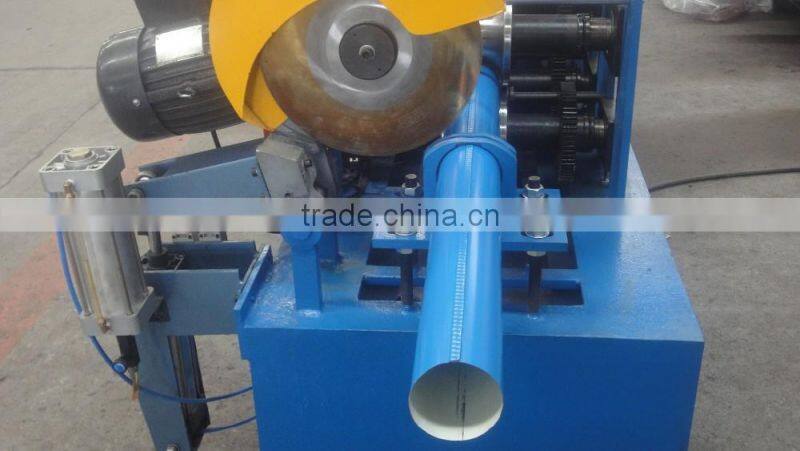

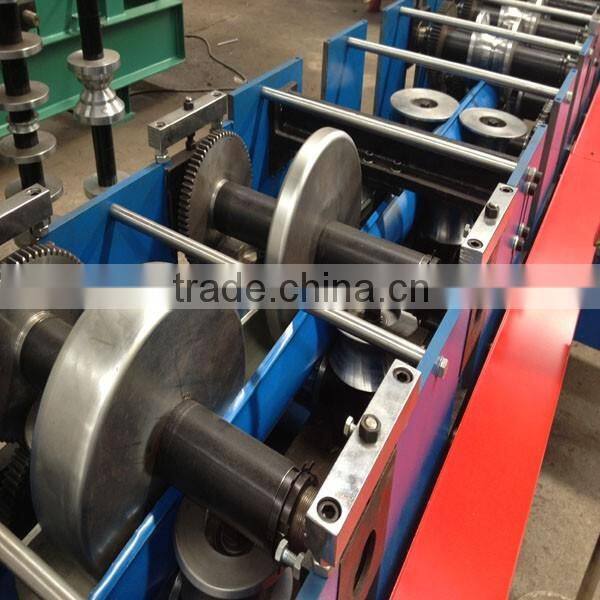

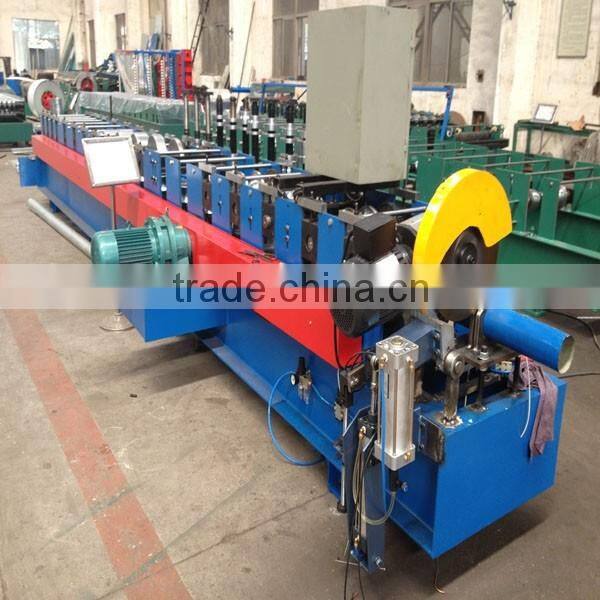

down pipe roll forming machine
| Motor power of main forming machine | 4kw |
| Hydraulic motor power | 3KW |
| Shaft station | 12 stations |
| Forming speed | 10m/min |
| Material of roller | 45# forged steel (with heat treatment) |
| Surface of roller coated | with chrome of 0.05mm thickness. |
| Diameter of roller shaft | 50mm |
| Chain | 16A |
Equipment includes:
Manual uncoiler, main forming machine, fly saw, computer control cabinet, hydraulic station, output table
Technical process:
Passive uncoiling → feeding with guide → roll forming → stamping ribs → cutting into length → output with table
1:Nude in container.
2:We can do the packaging as your need.
1:Our engineer can go to overseas to install the machine.
2:We can supply some parts for free.
3:Technical support is for free.
Our factory has been professional to produce all kinds of roll forming machine for many years and we have exported our products to USA, Kazakhstan, Kyrgyzstan, Tajikistan, Uzbekistan, Russia, Nigeria, Camaroon Duala, Ghana, India, Venezuela and some other mid-east countries. Hence, our experiece is rich enough to make us take first position of this field. In addition, we can design, produce and transport the machine as your any request.
1. Does one machine can only produce one style panel profile?
Not exactly.For wider and double layer making machine. It can produce more than 6 kinds of panels.
2. Do you have after sales support?
Yes, we are happy to give advice and we also have skilled technicians available across the world.We need your machines running in order to keep your business running.
3. How to visit your company?
a.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi(1 hour), then we can pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
4. How to get a quotation?
a. Give me the profile drawing and thickness, this is the important.
b. Other specific requirements are welcome, such as the speed, power and voltage you want.
5. What can you do if the machine broken?
Our machine's warranty period is 12months! If the broken parts can't repair, we can send the new parts replace the broken parts free,but you need pay theexpress cost yourself.If after warranty period,we can through negotiation for to solve the problems,and we supply the technical support for the whole life of the equipment.
6. Can you be responsible for transport?
Yes,please tell me the destination port or address.We have rich experience in transport.
7. You are trade company or factory?
We are trade company but we also have own factories. Building trade company is just for exporting various types of cold roll forming machines.
8. How long the machine could be made?
Normally speaking, common roof profile roll forming machine could be made within 45 working days.
If you need machines in a hurry, we can make it for you less than a month.
