18w IP44 4000k 2835SMD U Tube Plastic+Aluminum

18w IP44 4000k 2835SMD U tube Plastic+Aluminum

Features of 18w IP44 4000k 2835SMD U tube

Light source :ultra-bright white 2835 SMD LED.
Working voltage AC90-265V.
Instant response , no strobe light wave.
High efficiency , low power consumption.
Long life span with high stability and advanced heat dissipation technology.

Independent of the structure and design patents, compact structure, beautiful appearance.
Wide selection of color temperature: 3000~8000K.

Technical parameter of 18w IP44 4000k 2835SMD U tube

Product Name:   driver internal led u tube

Product Mode: HX-T8-18W138W-U

Size: 561*180(mm)

Main material: Aluminum Alloy+pc

LED Quantity: 138 PCS

Weight: 390g

Light Flux: ≥1850 Lm

Input Voltage: AC 90-265 V

CRI: ≥75

Input current: 0.075 A

CCT: 3000-8000 K

Operating frequency: 50-60 Hz

Center illuminance: ≥365 Lux/1 m

Rated Power: 18 W

Lighting Angle: 120°

PF: ≥0.95

Life Span: ≥50000 hrs
Power Efficiency: ≥85

Advantage of 18w IP44 4000k 2835SMD U tube

1. High luminous efficiency up to 95lm per watt , and high illumination up to 75lux/3m height .

2. Top quality material for excellent heat dissipation performance.

3. Beautiful appearance, thick heat sink, good for heat releasing.

Aluminum board and aluminum housing guarantee  double  heat  releasing  avoid  light  depreciation  and  prolong

lifespan up to 50,000 hours .

4. Top safety: Isolated driver.

5. LM80 LM79 test report, IES file.

Application of 18w IP44 4000k 2835SMD U tube

1.use( living room, bedroom, kitchen, washroom )
2. School, University, Hospital, Hote
3. Conference, Meeting room, Show room, Showcase
4. Commercial Complexes
5. Factories, Plants, Warehouses, Offices
6. Super-market, Department store

Detail Information of 18w IP44 4000k 2835SMD U tube

We are professional manufacturer of LED tube Light. We have many kinds of LED tube Lights for choosing. Advantages of our products are no RF interference, free maintenance, easy installation, low power consumption, high intensity, and long lifetime.

LED technology of Tube Light is increasingly being used in architectural lighting and workplace lighting applications due to its longer life and energy saving. Lighting your home with LEDs Tube Light! Enjoy the benefits and savings today!

Our LED tube light does not contain mercury or toxic gases and significantly reduce light pollution. LED tube light consumes less than 60% of the energy used by incandescent bulbs. The lifespan of tube Light is almost more than 50,000 hours making them extremely cost effective and efficient.

A LED Tube Light will also be better equipped to withstand extreme hot and cold temperatures than an incandescent light, which makes it suit for outdoor use. Moreover, LED tube lights have instantaneous on/off startup times. They never flicker on and use no ballast. We provide high-quality LED tube lights at competitive price.

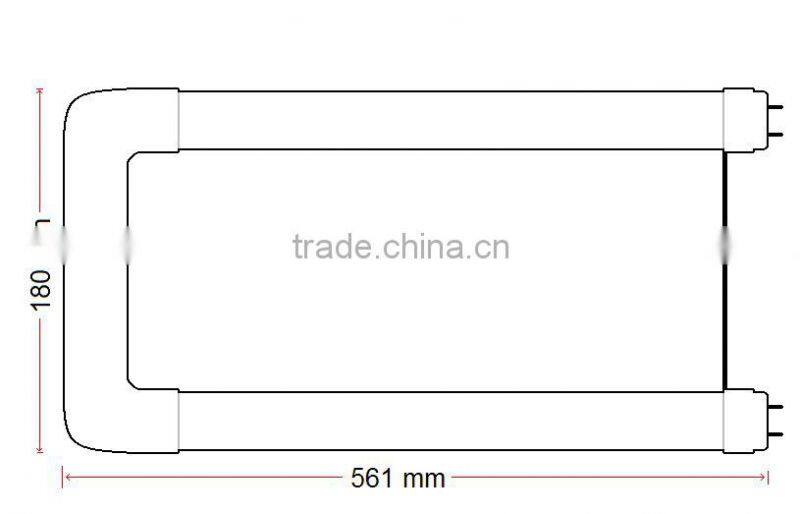

Dimensions information of 18w IP44 4000k 2835SMD U tube

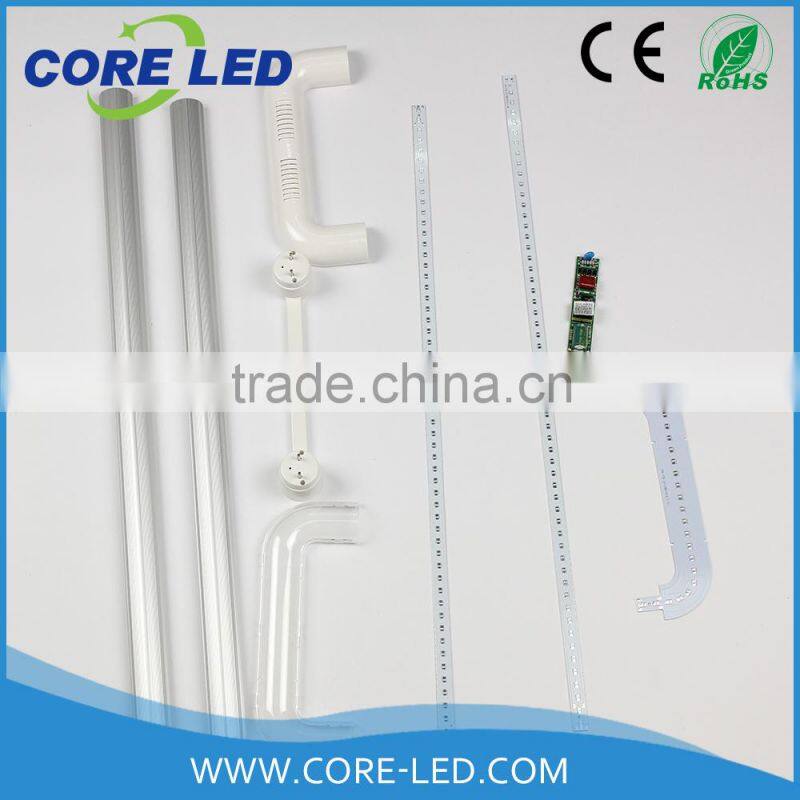

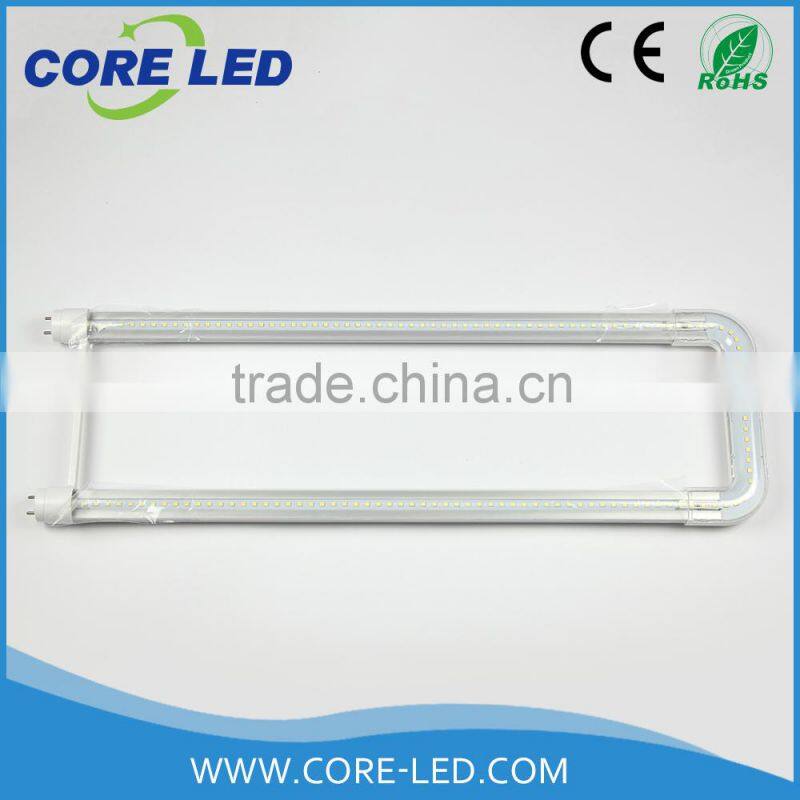

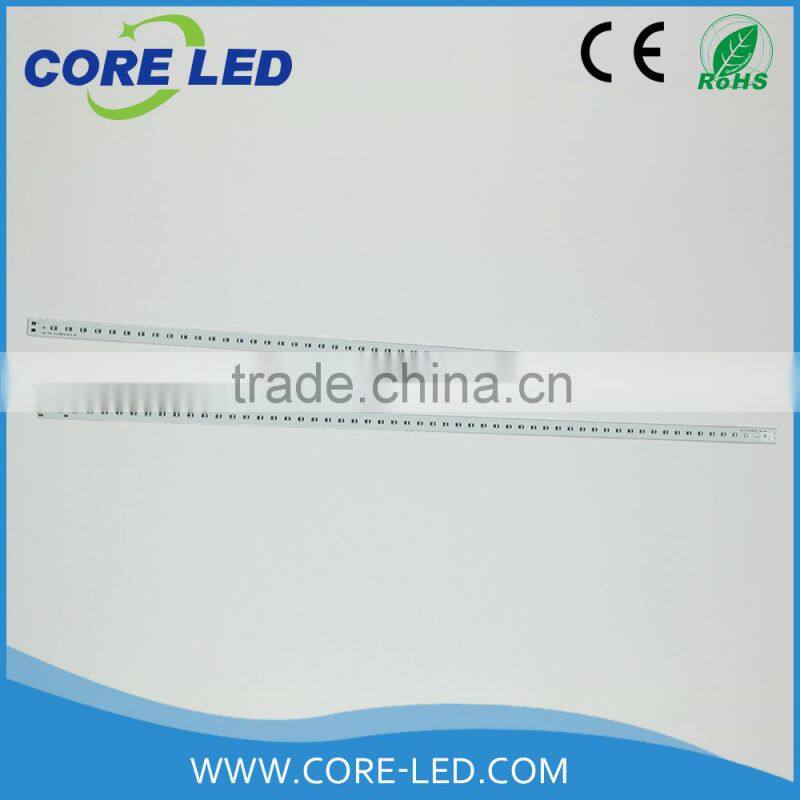

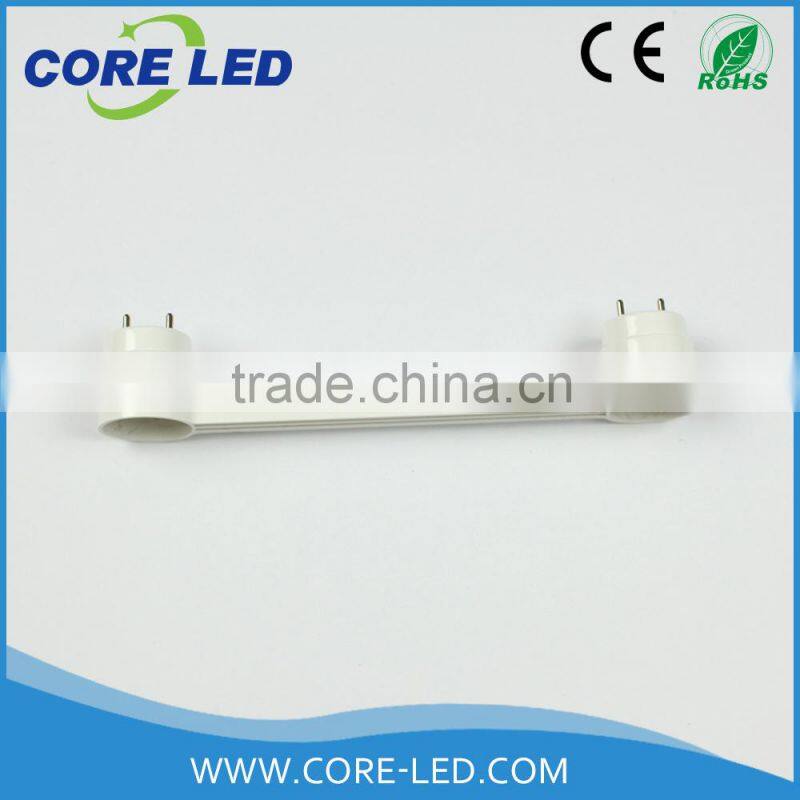

The pictures of 18w IP44 4000k 2835SMD U tube

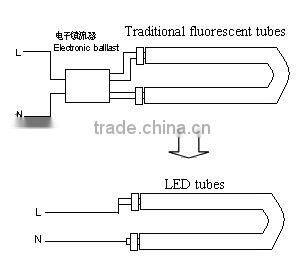

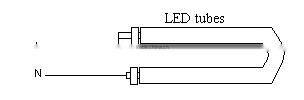

Installation pictures of 18w IP44 4000k 2835SMD U tube

Environmental requirements

Working temperature: -20 ~ 50 ℃
Storage temperature :-30~65℃
Working humidity: 30% ~ 85%
Storage humidity :10%~90%

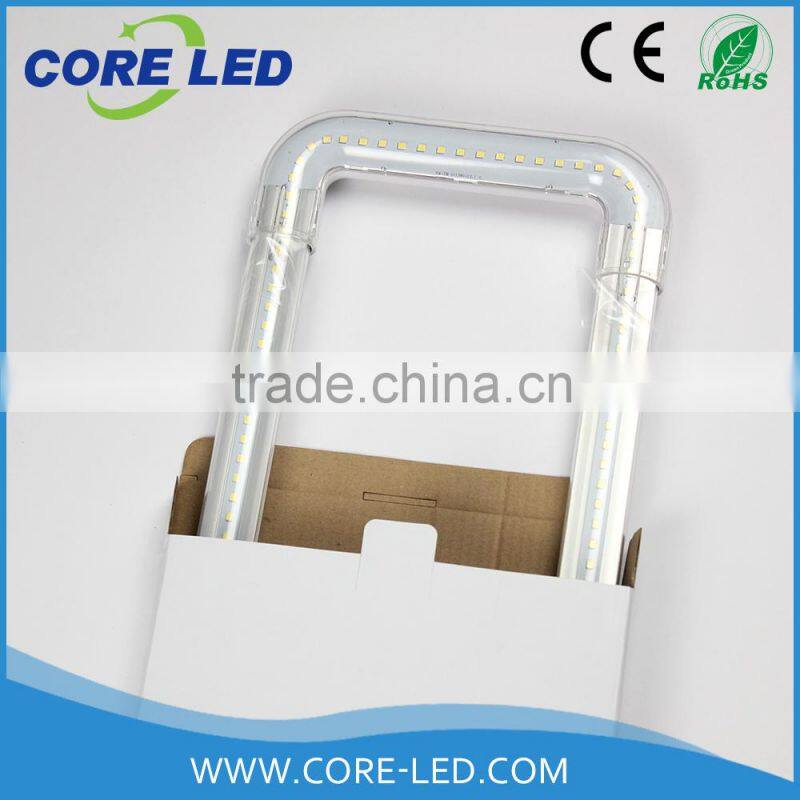

Package of 18w IP44 4000k 2835SMD U tube

Additional Information of 18w IP44 4000k 2835SMD U tube
