Specifications
small capacity automatic beer bottling machine1. capacity: 1000-3000b/h
2. automatic with PLC control
3. 3 in 1 machine
small capacity automatic beer bottling machine:
These series auotmatic beer bottling machine is economic choice for medium capacity needed but less invested beer production plant.

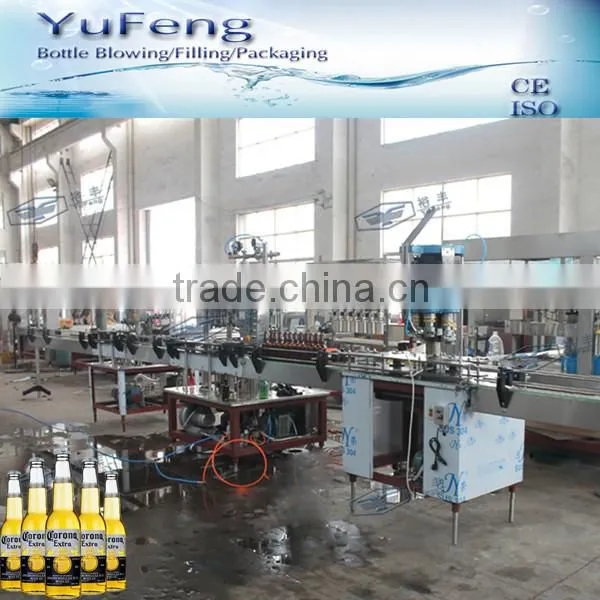

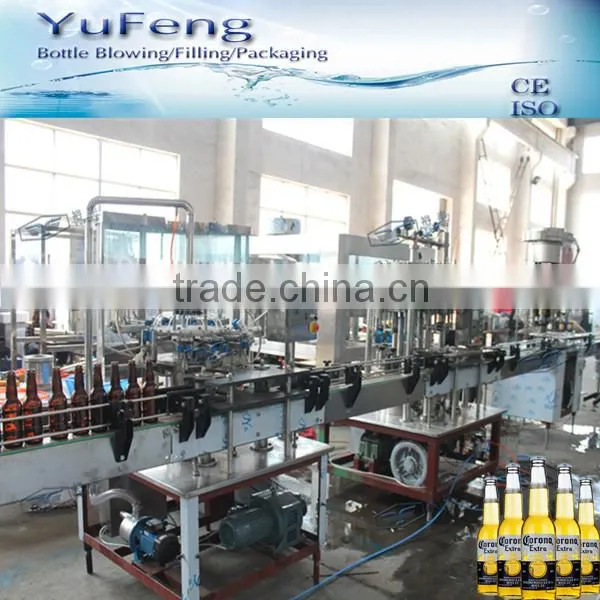

There are three machines separately existence of this small capacity automatic beer bottling machine, first is bottle washer, when the bottles coming along by the automatic conveyor, the bottles will be washed inside one by one with the pure water.

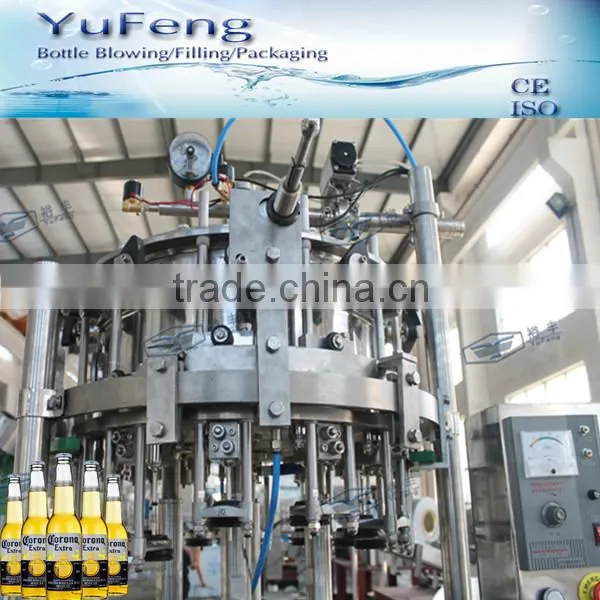

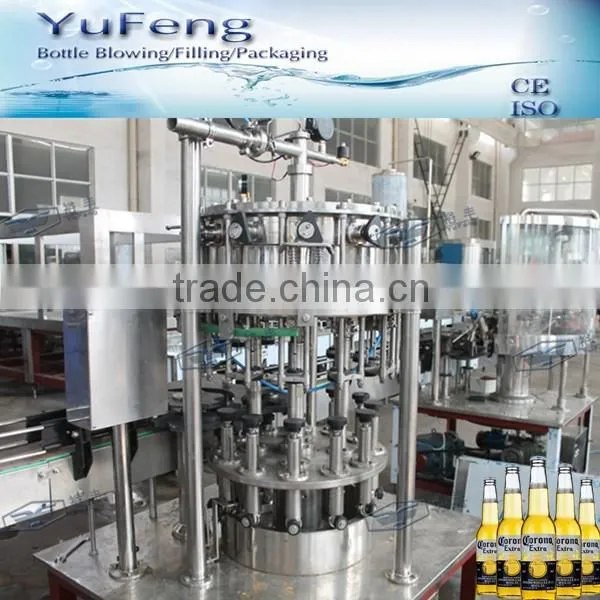

Second is the carbonated drinks filling machine, as the washed bottled conveyed to this machine, the filling part start filling, bottles stand around under the filling valve. Then the drinks filling into the bottles .

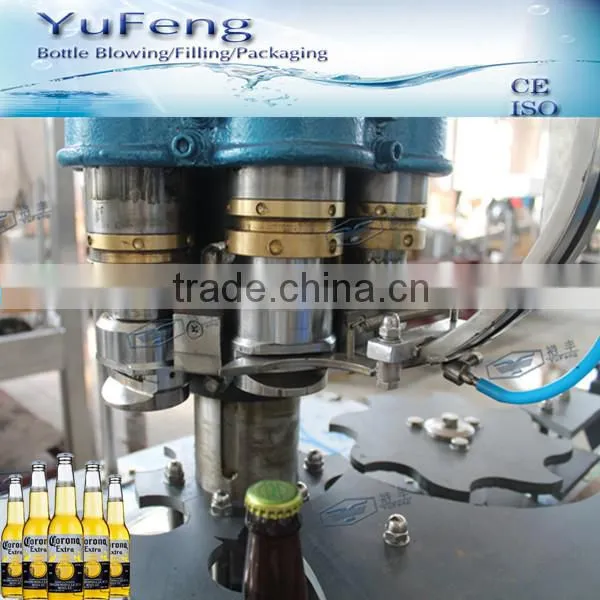

Third is the bottle capper machine, after finish filling from the beer bottling machine, the bottles conveyed by the conveyor to the capper machine. The capper will be capped on the bottle neck, then the bottled drinks finished.
The suitable bottles for this machine is PET bottle, bottle volume form 150ml to 1500ml.
This equipment is developed on the basis of digesting and absorbing advanced technology introducing from abroad and is with international advanced level. It is mainly used for filling gas-containing drink, such as beer, aerated water, cola, sparkling wine, fruit tea and so on. It is advanced in construction, steadily in performance, safe in operation, easy in maintenance high in production efficiency, and the speed can be regulated infinitively. This machine is the ideal choice for drink factories of beer.
Main Technological data:
Model : |
DG -8 |
DG -12 |
DG-18 |
DG -24 |
DG -32 |
Production Capacity: |
1000-2000b/h |
1000-3000b/h |
2500-4600b/h |
2500-6000b/h |
3000-8000b/h |
Bottle /standard: |
Glass bottle , PVC bottle , Pop-top can |
||||
Filling Pressure: |
0.2-0.3Mpa |
||||
Filling Temperature: |
2-6 |
||||
Power: |
0.75kw |
1.1kw |
1.5kw |
1.5kw |
2.2kw |
Overall Dimensions: |
1000×900×1800 mm |
1100×1050×1800 mm |
1400×1300×1800 mm |
1600×1540×1800 mm |
1900×1500×2000 mm |
Weight : |
1000kg |
1600kg |
2100kg |
2700kg |
3500kg |
After Sales Service
1.Find our products through https://img13.fr-trading.com/
2.One year warranty for the whole system
3.Free equipment installation and debugging
4.After one Year,we can help you to maintain the machine and the accessories are provided olny one the cost price
5.Every 3 years,we can help to overhaul the machine freely(Labor)
6.We can provide internship servise and help you train the operator and mechanic
7.Free production technology and process configuration
8.We can help you to design the production line,workshop and provide turn-key project

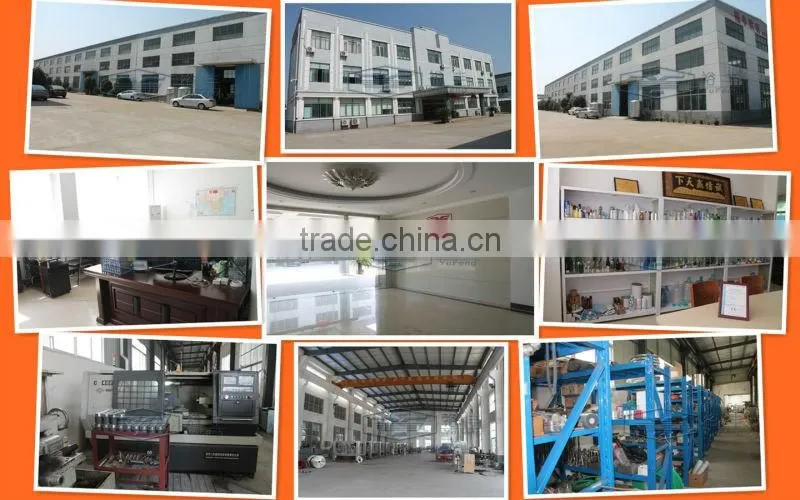

Zhangjiagang city Yufeng beverage machinery Co.,Ltd. is a manufacturer enterprise specializing in producing beverage packing equipment and various water treatment equipment. The company has not only gained over ten year’s producing experience but also incorporated advanced technology from home and abroad. So we have won high reputation among our customers domestic and abroad.
At present we produce: production lines for mineral water, pure water, fruit juice, tea drink, milk drink and carbonated drink with capacity 1000-20000bottles/hour, production lines for vinegar, soy sauce and wine, 3-5gallon barreled water with capacity 80-120 barrels per hour and various water treatment plant.
Honesty, Sincerity, and good faith" is our spirit, while "High technology, high quality, and high level" is what we look for. We try our best to satisfy our customers' needs with our good after-sales service. We would like to cooperate with our friends and develop together. All friends from at home and abroad are warmly welcomed to visit us.
