Cylinder lifting type glass bottle alcohol filler
Cylinder lifting type glass bottle alcohol filler Alcohol filler---Features
---This monobloc machine is quite easy to be operated and maintained with the adopting of PLC control of frequency conversion Timing.
---All the parts contact with liquid are made up of high quality stainless steel, both exterior and interior of the machine are polished for easily cleaning and good hygiene codition. The sealing parts are all imported from foreign countries, which meets the requirement of the hygiene of the foodsafety.
---Rotatory bottle-rinsing machine has the functions of not opening the valve and rinsing without bottle, which is working from bottle entrance,bottle transportation,bottle clipping,bottle turning around with synchronously rinsing inside of the bottle to water-dropping and exit have the functions of not opening the valve and rinsing without bottles.
---Adopting the way of filling by holding the necks of the bottle, plus the function of pre-cover of the centralizing cover with high precise centralization,which ensure the right seating of mouth of the bottle and filling valve,with low liquid loss.
---Adopting crowning the caps with magnetic force,which passes the torque with powerful and constant magnet,and the torque can be adjusted to meet the need of many kind of plastic caps.
Cylinder lifting type glass bottle alcohol filler Alcohol filler---Technical parameter
Item |
Subject |
Parameter |
1 |
Model |
CGF40-40-12 |
2 |
Name |
washing filling capping three in one |
3 |
Washing head |
40heads |
4 |
Filling head |
40heads |
5 |
Capping head |
12heads |
6 |
Productivity |
12000bph |

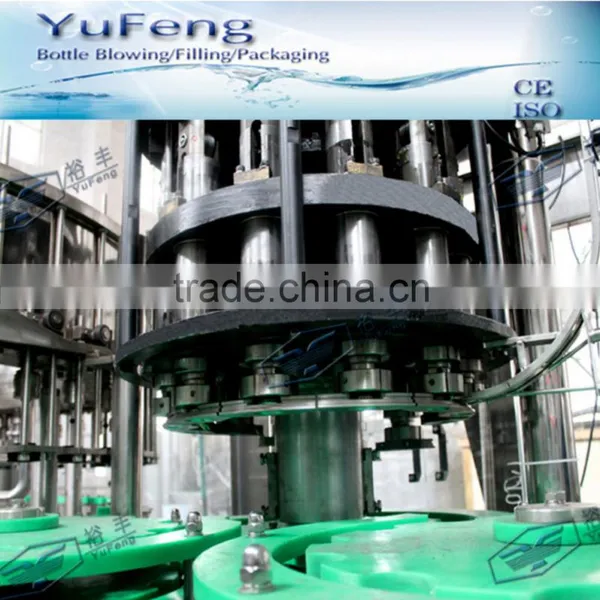

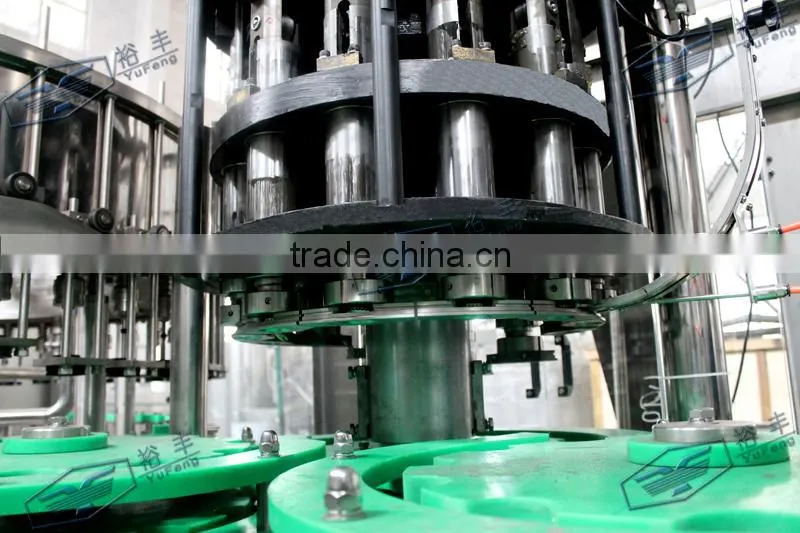

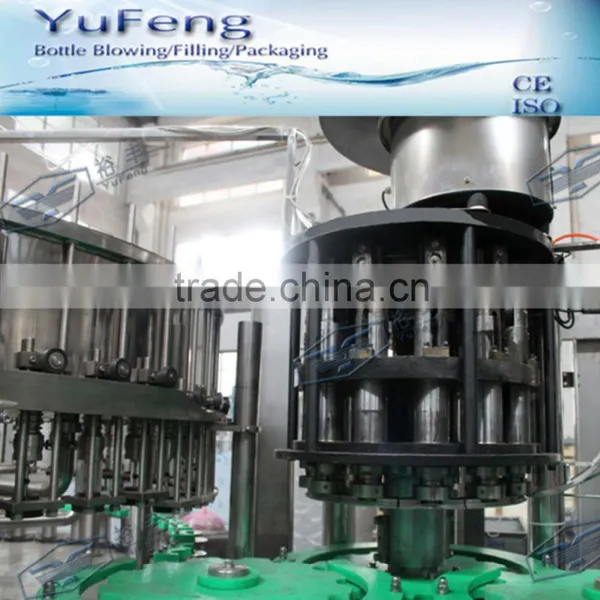

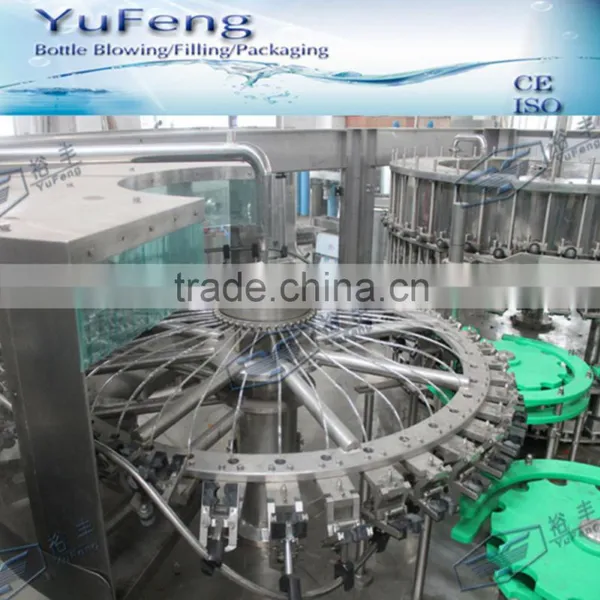

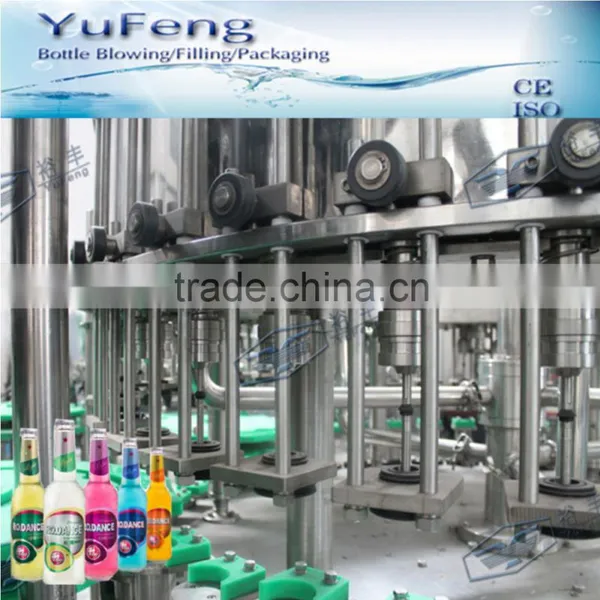

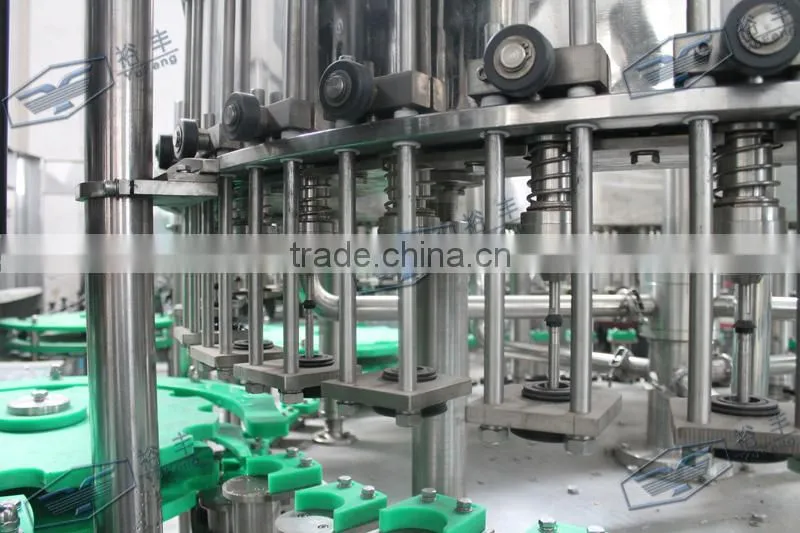

Alcohol filler---More detailed photos
Alcohol filler---Electrical apparatus
PLC/ transducer/ touch screen: Mitsubishi
Contactor/ air switch/ stabilized voltage supply: Schneider
Photoelectricity/ proximity switch: Autonics
Cylinder: Airtack
Motor: AB motor
Welcoming
