Glass bottle wine negative pressure filler(Mono block 3 in 1 filling machine )
Equipment Introduction
This machine adopts vacuum filling method. Negative pressure type filling machine to be installed is to use liquid and suction out the container of the exhaust gas pressure between the filling pressure can the product flow rate higher than the pressure method such as filling. Advantages of negative pressure filling: filling valve structure is simple, no bottle no filling, broken bottles are not filling, significantly reduced the wine loss.
Features
1. The rinsing machine using high-strength stainless steel bottles of spring-loaded folders, to ensure a stable reversal of the glass bottles. The nozzle is a plum-like structure can wash every corner of the sidewall and bottom to make the bottle clean.
2. Filling machine with spring-type mechanical lifting equipment to upgrade glass bottles, large bearing support floundering in the vat and use of guide-rod in the orientation of the structure, there are pre-cover features.
3. Using a low vacuum filling valve, hydraulic cylinder hydraulic cylinder liquid surface of the float by automatic control, to maintain a constant level surface, when the filling valve injection liquid into the bottle shot, after the exhaust gasket sealed bottle the beginning moment that the establishment of negative pressure (vacuum) At this time, liquid cylinder in the wine (drink) poured into the bottle under the action of the gland, when the surface you have not seen wine sucker rod stomata, the pumping stops, filling synchronization stop, filling valve to upgrade into the sealed
4. When the bottles from the filling machine to send over later, the bottle made from a material under a cap. Screw cap plunger under the action of the cam track to the decline in membership and then help promote Capping head for screw cap operation
5. With a broken bottle filling machine is not filling function
6. All the materials in contact with the valves, tanks, pipes are made of stainless steel N304 materials, inside and outside the wall of mirror-polished, ensuring it is healthy.
7. Manually dry oil lubrication system to make sure equipment maintenance is more convenient.
8. The whole operation adopts advanced man-machine interface, PLC control, frequency conversion stepless speed regulation and other automatic control technology, with no bottle no open valves, no stamps; no cap no operation, and other security protection.
Main Technical Parameters
Rinsing heads |
24pcs |
Filling heads |
24pcs |
Capping heads |
8pcs |
Bottle type |
height 200~350mm diameter Φ52~Φ84mm |
Air consumption |
1m3/min(0.4~0.6Mpa) |
Carbon dioxide consumption |
36g/100L |
Vacuum pump |
0.4m3/h |
Blowing |
0.6m3/h |
Working volt |
AC 380V |
Main motor |
6KW |
Hopper motor |
0 .37KW |
Vacuum pump motor |
1.5 KW |
Jetting pump |
0.55Kw |
Chain motor |
0.75Kw |
Dimension |
2800×2400×2500(L×W×H) |
Weight (approx.) |
4500 Kg |
Glass bottle wine negative pressure filler(Mono block 3 in 1 filling machine ) :

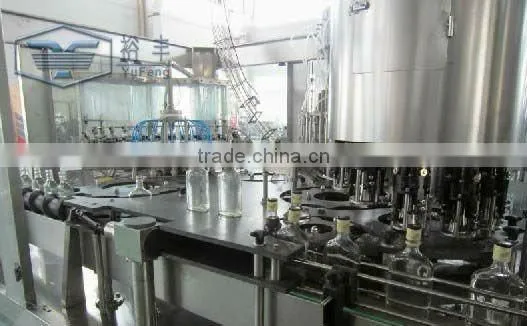

the whole machine

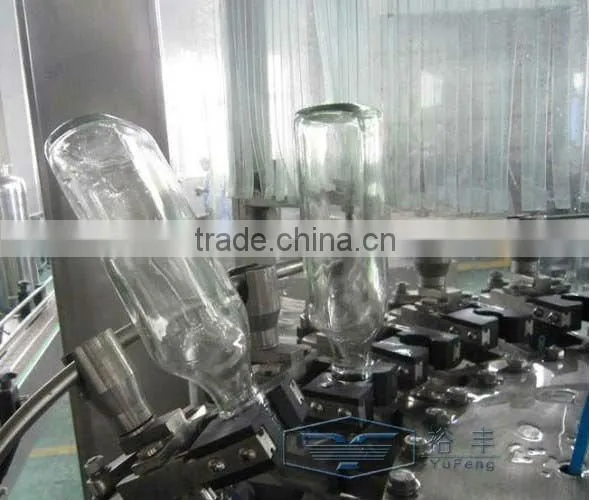

Wine bottle washer part

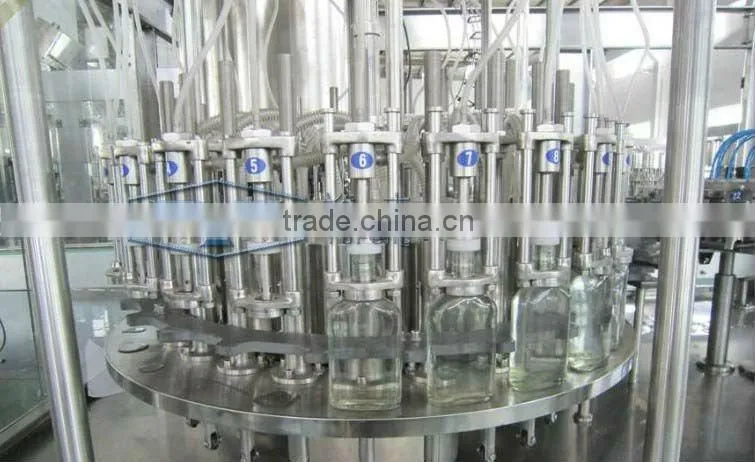

wine bottle filler part

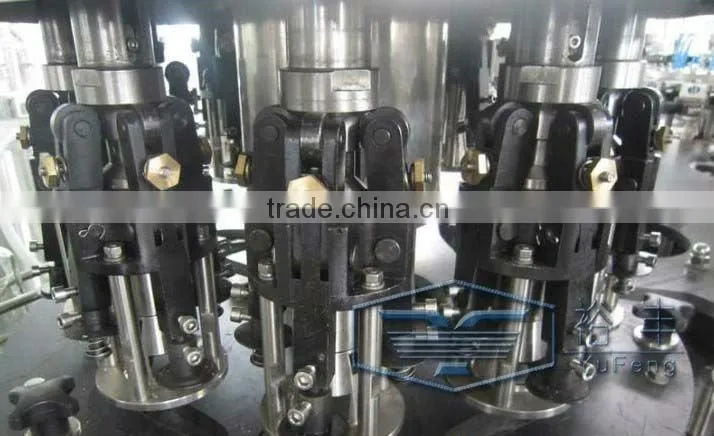

wine bottle capper part
