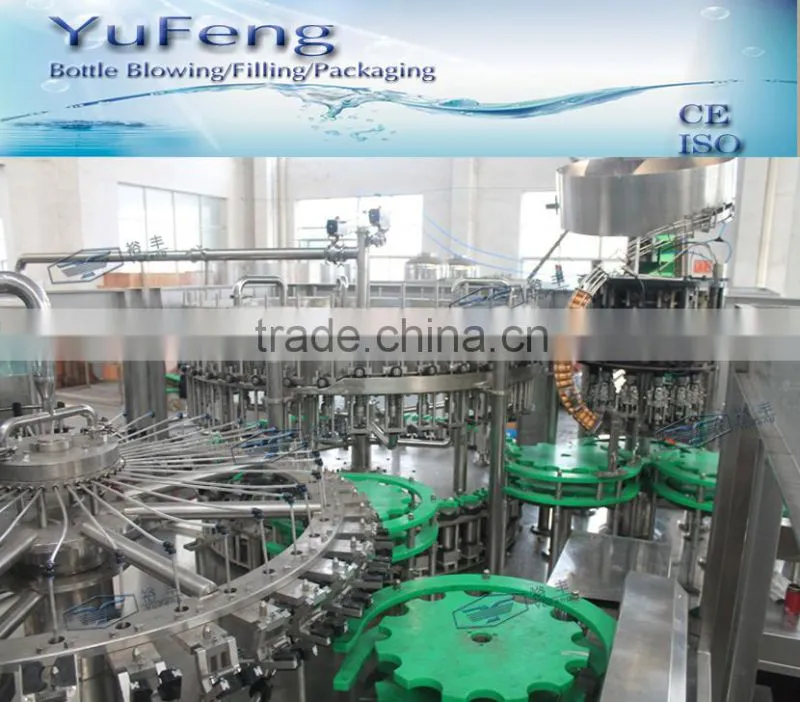

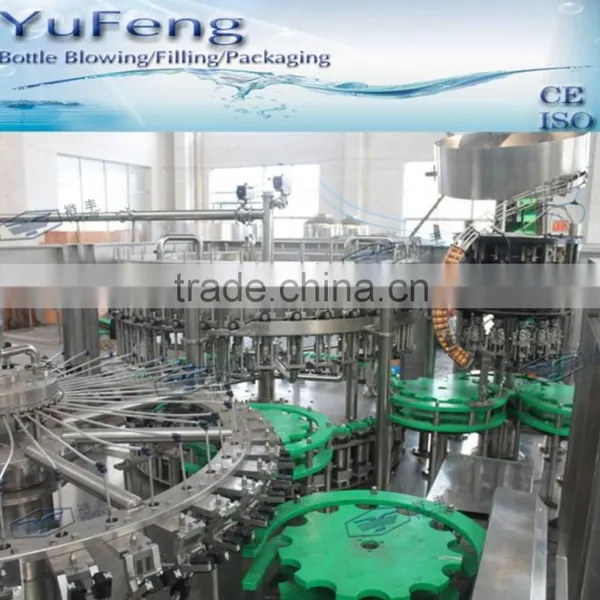

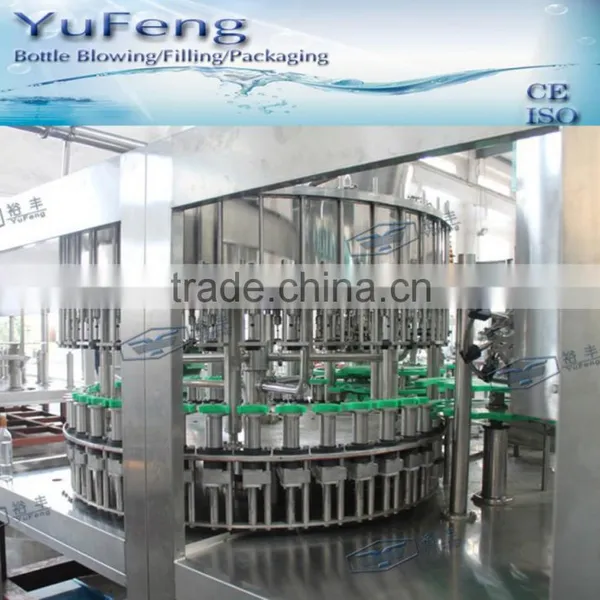

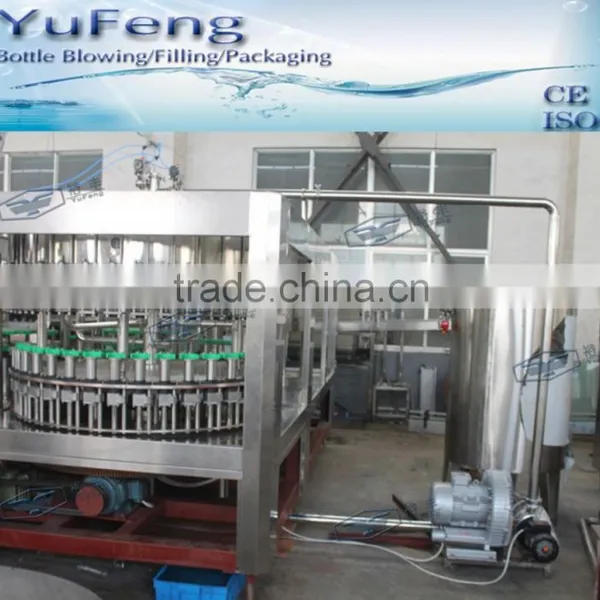

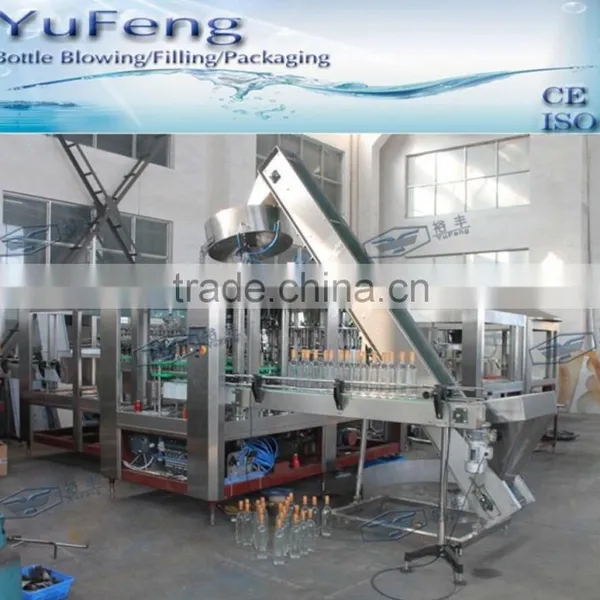

Automatic glass bottle alcohol filling plant

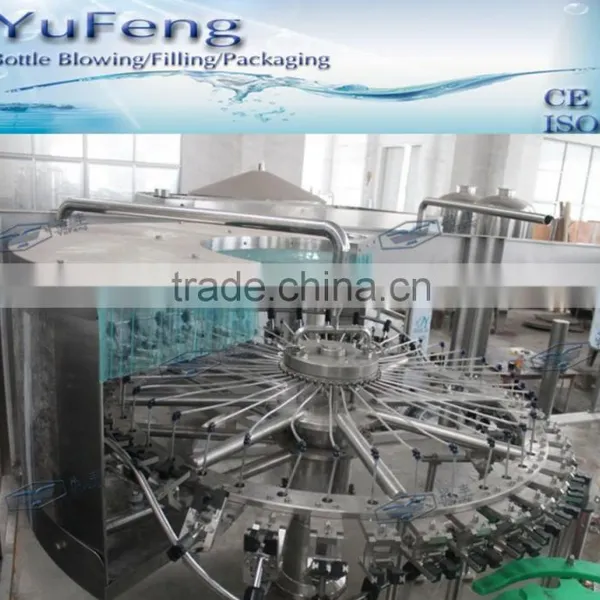

1.Washing machine
Spring cramps are used in the bottle washing process. The empty bottles can be turned over 180~ along the conveying rail. There is once time of internal and external washing, the efficiency of bottle washing is high.
2. Filling machine
Bottles are drived by the neck through starwheels' drive in the production. Operator can adjust the structure which we design to satisfy various types of bottle .
The filling valves are totally made of food grade stainless steel . And they are secured to the bowl and easily assemble and disassembe.
3. Capping machine
The magnetic torque is used for screw capping. The power of screw capping can be adjusted without steps. The power of the screw capping can also be fixed, and the caps will not be damaged, the capping is reliable.
The whole machine is controlled by PLC with touch-screen as the human-machine interface. The amount of the drinks in the storage tank can be controlled automatically. The filling and capping will be stopped automatically when there is no bottle. When bottles are cramped wrongly or when caps are not available, the machine can be stopped automatically.
The frequency changing technology is used to adjust the operation speed steplessly. The production capacity can be displayed digitally and can be adjusted conveniently.
Components:
Washing- filling -capping system: 1 suit
Value washing system: 1suit
Empty bottle stop system when machine stop: 1 suit
Bottle control system when machine stop: 1 suit
UV sterilization lamp: 2 pcs
Crawl device: 1 pc
Electrical apparatus
PLC/ transducer/ touch screen: Mitsubishi
Contactor/ air switch/ stabilized voltage supply: Schneider
Photoelectricity/ proximity switch: Autonics
Cylinder: Airtack
Motor: AB motor
YFCY12-12-4 | |
Capacity(B/H) |
4000 |
Bottle size |
Neck:φ50-100mm Height:150-320mm |
Water pressure |
0.18-0.25Mpa |
Water consumption(kg/h) |
1200 |
Washing station |
4 |
Dripping station |
3 |
Filling precision |
+5MM |
Air pressure |
0.5Mpa |
Air consumption |
0.3 m³/min |
Power(kw) |
4.2 |
Weight(kg) |
3000 |
Dimension(L*W*H) |
2100*1600* 2100 mm |
