Part Number:15 Amp Silicon Bridge Rectifier RBV1504
Feature:
Rating to 1000V PRV
Surge overload rating to 200 Amperes peak
Ideal for printed circuit board
Reliable low cost construction utilizing molded
plastic technique results in inexpensive product
Lead solderable per MIL-STD-202 method 208
Maximum Ratings and Electrical Characteristics
Maximum recurrent peak reverse voltage: 400V
Maximum RMS voltage: 280V
Maximum DC blocking voltage: 400V
Maximum average forw ard Output current @TC= 55℃： 15A
Peak forw ard surge current 8.3ms single half-sine-w ave superimposed on rated load: 300A
Maximum instantaneous forw ard voltage at 7.5 A: 1.1V
Maximum reverse current @TA=25 ℃：10uA
at rated DC blocking voltage @TA=100℃：0.2mA
Typical junction capacitance per element: 85pF
Operating junction temperature range: -55℃ to 155℃
Storage temperature range： -55℃ to 155℃
Production Information
1. Your complete source of TVS diode, schottky diode, super fast recovery rectifier and transistors back by 50 years experiences!.
2. Raw material used by GPP wafer!
3. High power tvs diodes up to 30KW and 10KA, max breakdown voltage at 600V!
4. Both axial & high voltage rectifier available!
5. One stop service solution, axial series range from 1A to 15A, Surface mount series range from 1A to 8A, Bridge rectifier range from 0.5A to 60A!

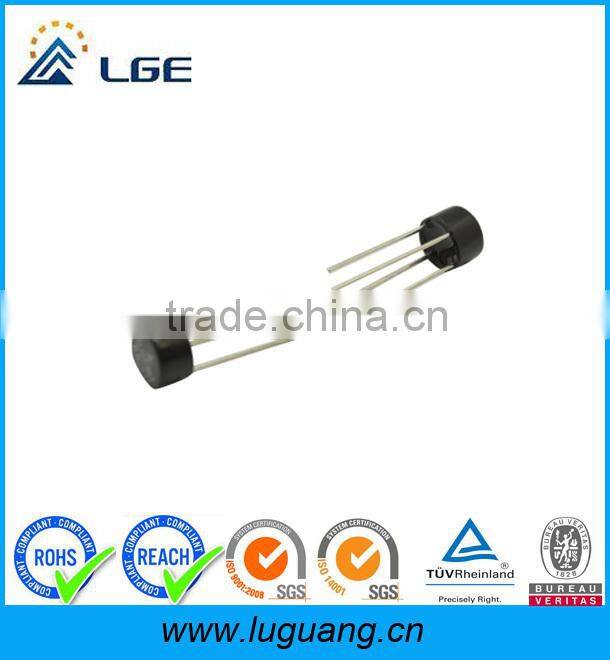

WOM Package Bridge Rectifier

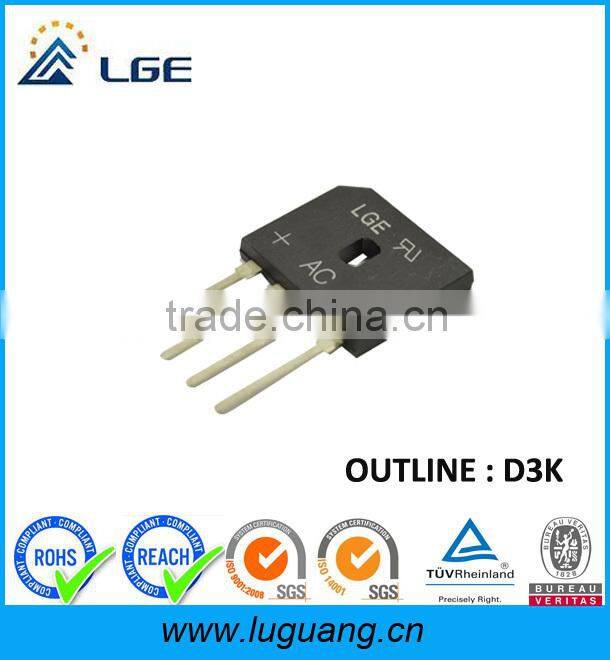

GBU Package Bridge Rectifier
LGE Roadmap
LGE to become a globally present World class Brand.
Constant evolution to new and innovative products to satisfy the market demands.
Set up Overseas Branches and Development Centers.
Continuously Increase Investment to Complete Full Automatic Production Lines in 2018
LGE Production Line
Full-automatic SOD-123 production line
* Full-automatic DO-214AC/SMA production line
* Full-automatic DO-214AB/SMB production line
* Full-automatic DO-214AA/SMC production line
* DO-201AD / DO-27 production line
* DO-41 Production line
Packing
SPQ: 3,000pcs/reel
Packing: 90,000pcs/carton
carton size: 40 *20*22 (cm)
Gross weight: 5kg/carton
Delivery
1.- We can ship the products all the world.
2.- DHL, FedEx, TNT, UPS, EMS, China Post, Hongkong Post are all available.
3.- The item will be sent out with 3 weeks after receiving the payment.
4.- Please make sure your delivery address and contact telephone number are correct when you bid the item.
5.- You can track the situation of your product when I give you the tracking NO.
More information, pls feel free to contact us!
