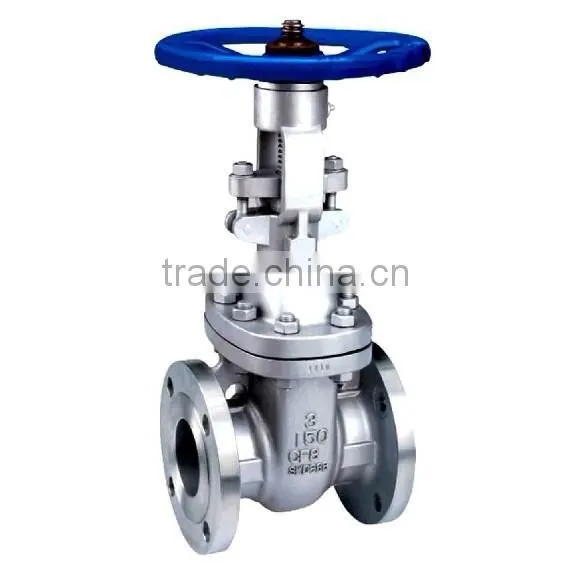

China gold supplier ASTM a216 casted gate structure flange type valve for industry
- 20000 Ton / Tons per Month
- Tian jin xin gang Shang hai port Ning bo port
- T/T Credit Card PayPal
Product Details
Standard or Nonstandard: | Standard | Structure: | Gate | Pressure: | Low Pressure |
Power: | Manual | Material: | Casting | Temperature of Media: | Medium Temperature |
Media: | Base | Port Size: | Standard | Place of Origin: | Hebei, China |
Model Number: | Gate Valve | Brand Name: | PYL | Application: | General |
Product Description

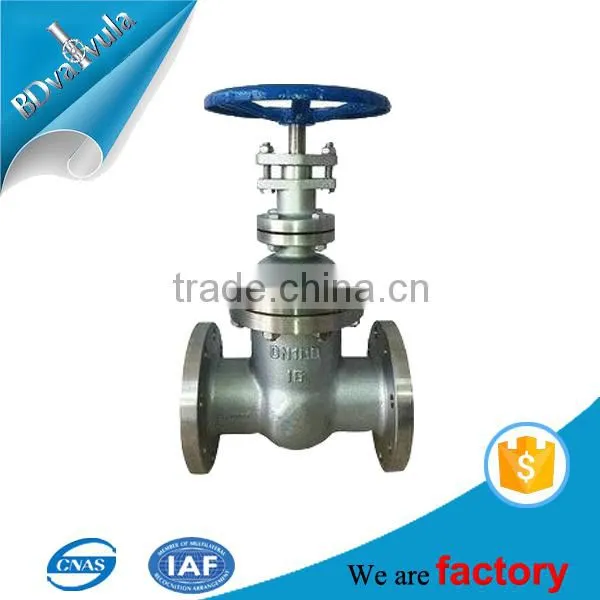

what you see is a sample of our products ,it can be sent to you ,if you want to see the details.
our advantage
1. Using the resin sand and coated sand casting technology
2.Add the tempering procedure before entering the processing workshop,
3.Use the CNC lathe and pipeline during the whole process.
4.The disc sealing surface use plasma welding machine welding.
5. Every valve must be tested before being sent out of the factory, only qualified ones can be shipped.

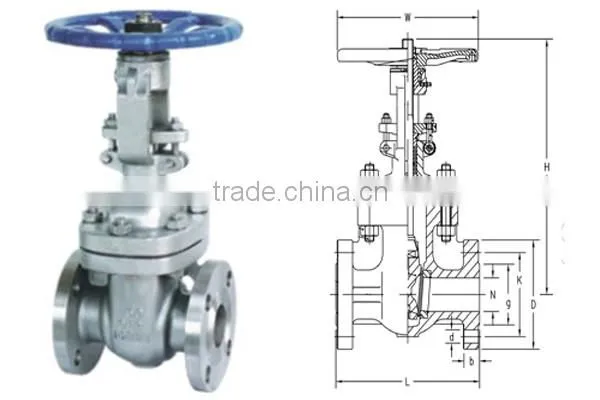

THE STRUCTURE
PART NAME AND MATERIAL
No. | Part Name | Material |
1 | Body | stainless steel 304 316 |
2 | Seat | WCB+13Cr |
3 | Disc | WCB+13Cr |
4 | Stem | F6a |
5 | Gasket | 304+Graphite |
6 | Backseat | F6a |
7 | Bonnet | A216 WCB |
8 | Packing | Graphite |
9 | Bushing | A182 F6a |
10 | Gland | A216 WCB |
11 | Stem nut | Aldary |
12 | Retaining nut | A105 |
13 | Handwheel | QT400-17 |
14 | H.W.lock nut | A105 |
15 | Lubricator | H62 |
16 | Gland bolt | A193 B7 |
17 | Nut | A194 2H |
18 | Pin | A29 1025 |
19 | Stud | A193 B7 |
20 | Nut | A194 2H |
THE PRESURE RANGE AND USAGE
Features | |||
PN | 1.96 | MPa | |
Body | W. | 3 | MPa |
High | W. | 2.2 | MPa |
Up | G. | 0.6 | MPa |
Low | G | 0.6 | MPa |
Temp. | 425 | C | |
Medium | Water, Oil, Gas | ||
Design and manufacturer: API600 | |||
FtoF ASME B16.10 | |||
Flange: ASME B16.5 | |||
Testing and checking: API598 |

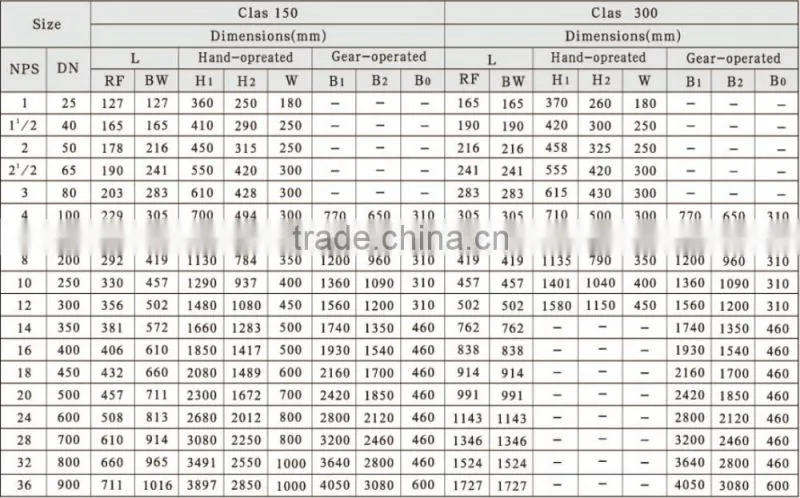

THE MEASURMENTS OF THE ANSI GATE VALVE
Please put your heart in your body,we are the factory of almost 20 years,we have a complete system of packing and shipping,from producing the products to handing the products to your hands,it's a safe and neat way.
although i have mentioned that we have a factory of twenty years,but the history is not the point that i emphasize,the point is the high efficiency,and the honesty and too much that the twenty years have brought to us.
we are a imported and exported company,so every year we send people to attend the presentation of industry international to study ,in another word to make friend.
Our company locate in the B zone of Xushui Industrial Park of China HeBei province,which is Chinese largest corporation of High-middle-low pressure Valve and flange,and it has two branches,the floor space of core enterprise is 200000 square meters,and it has more than 1000staffs.
Our certificates

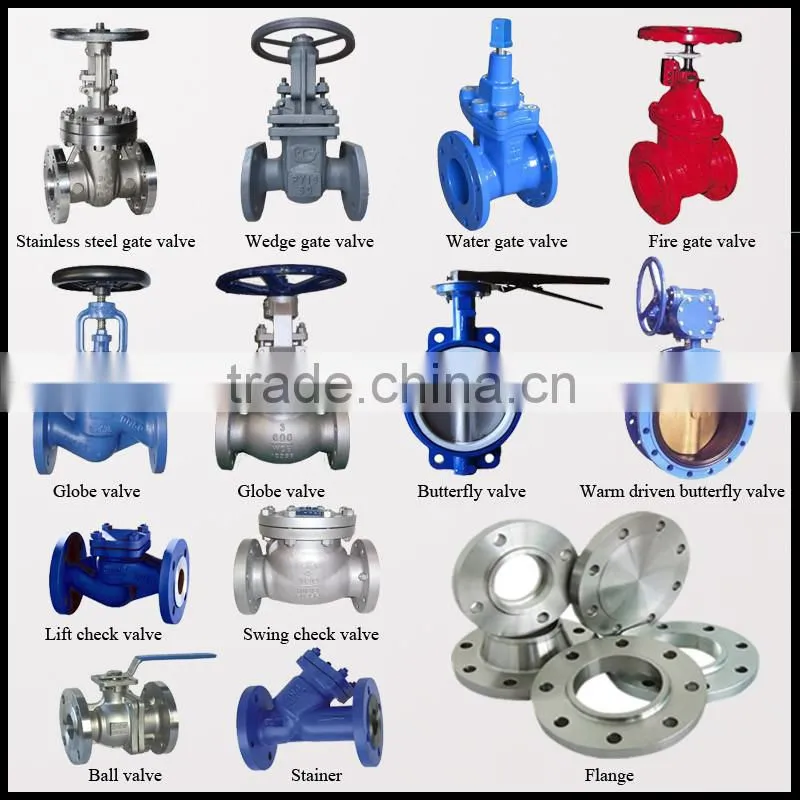

except this kind of valve,other kinds of valves are on sales here.

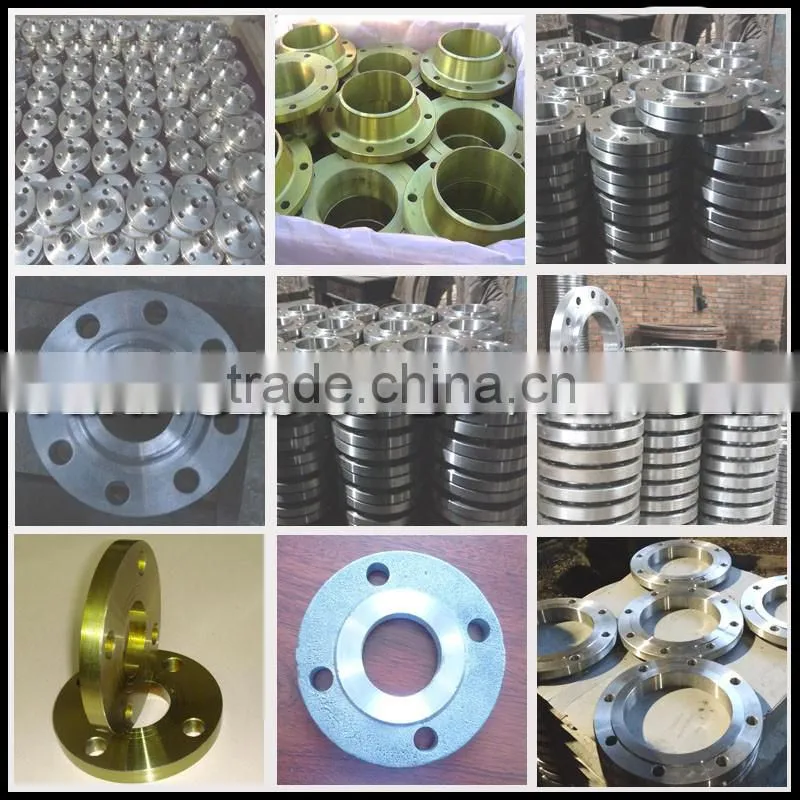

flanges

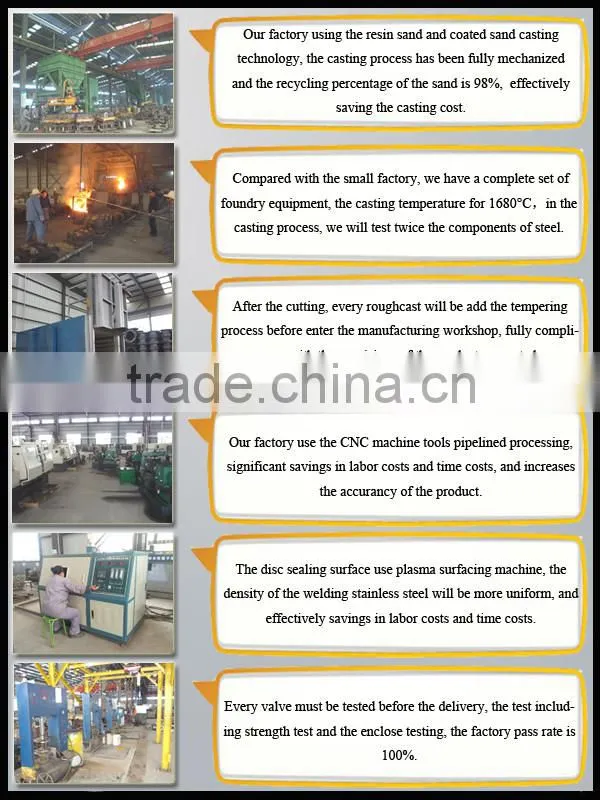

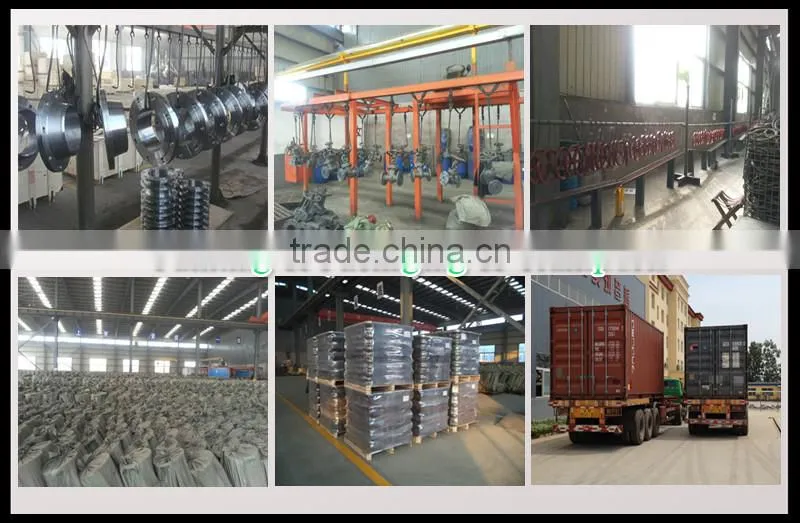

the process of producing

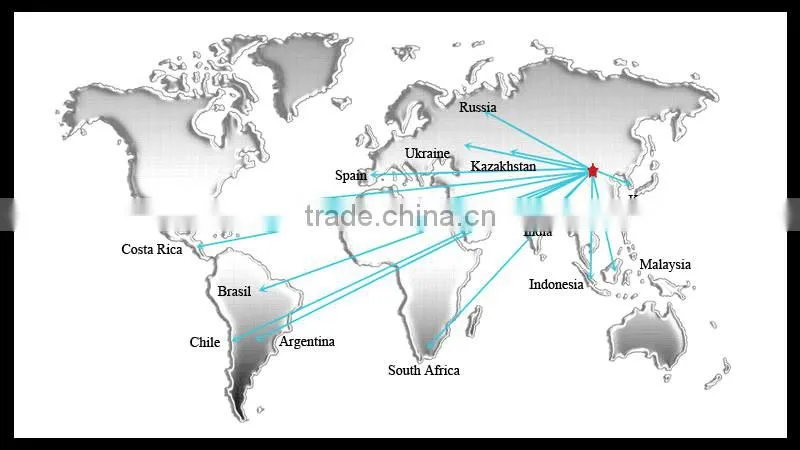

where have our products where have our services.
That is our big family,so if you have any question or have interests on us,please contact us.
Tel: 0086 312 8631222
Mobile, Whats App: 0086 15030239242
Skype: florence9802
We are the BD valvula company, you are welcome forever.
