Automatic Linear Packing Machine

Automatic Linear Packing Machine photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Application:
Beverage
Packaging Type:
Bottles
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Beverage
Packaging Type Bottles
Packaging Material Other, film
Automatic Grade Automatic
Driven Type Electric
Voltage 380v
Power 25kw
Place of Origin Jiangsu, China
Brand Name YuFeng
Model Number WD350-A
Dimension(L*W*H) L12000*W1100*H2100mm
Weight 2500kg
Certification CE
After-sales Service Provided Engineers available to service machinery overseas

automatic linear packing machine

Description:



Main structure: the equipment is made of bottle loading system, packing machine, thermo-shrinking machine, no-drive roll convey machine and electric control system, pneumatic control parts and so on.



Produce process: WD-350A automatic linear packing machine is produced at the basis theory of the film shrinking after heated. The whole packing process is including photoelectric sensor testing, PLC treats the collected signal, convey belt delivering the bottles, the dividing board divide the bottles into lines and the push the bottles to be filmed, the thermo-sealing knife seal the film into bags, the cooling tunnel cool the bags.



Product instruction:



Frequency converter speed adjust,two segment convey device.



Bottle pushing, thermo sealing and cutting whole movement adopt to pneumatic fracture.



Proximity switch control film length



Touch screen, PLC system greatly increase facility movement reliability.



Three-wind recycle fan machine, ensure shrinkage tunnel inside even temperature.



Super big wind-volume cooling system, ensure quickly get into shape .



Anti-high temperature teflon convey belt, convey steadily, high-strength anti-abrasion.



Frequency limitless speed adjust convey belt frame.



onvey belt height can make according client requirement, adjust range:±100mm



Wing stainless steel heating system, endurance



Meet with product instant stop requirement product-bearing rack device ensure production line consistency.

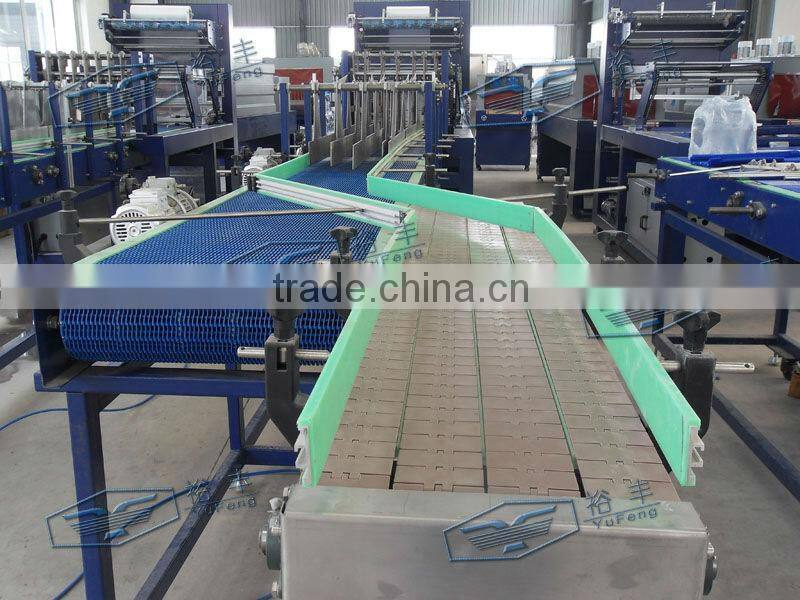

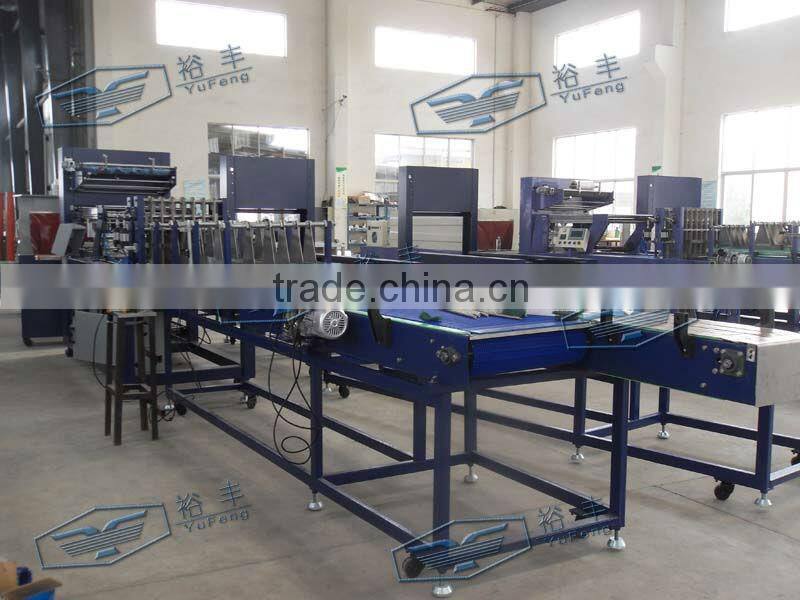

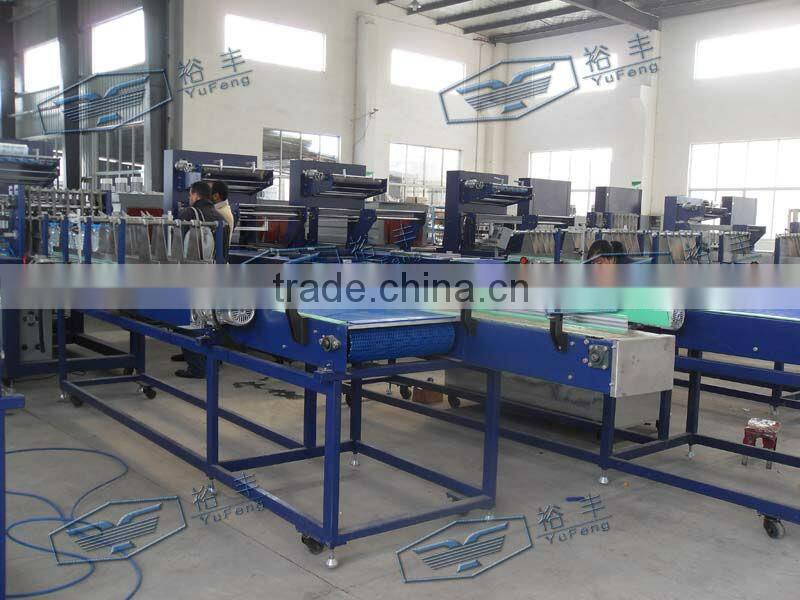

Photos:

automatic linear packing machineautomatic linear packing machineautomatic linear packing machine

Packing part

automatic linear packing machine
