Electromobile Relay Alumina Ceramic Cases
- Shenzhen Port
- T/T Credit Card PayPal
You May Like
Product Details
| Place of Origin | Hunan, China | Brand Name | Ultronic, Ultronic | |
| Model Number | Client's Drawing | Type | Other, Insulating Ceramics, Ceramic Parts | |
| Material | Other, Alumina, Alumina Ceramic |
Electric Relay Ceramic Cases are packed with paper wrap and then in plastic bag, then in inner box, and in carton.
Product Description

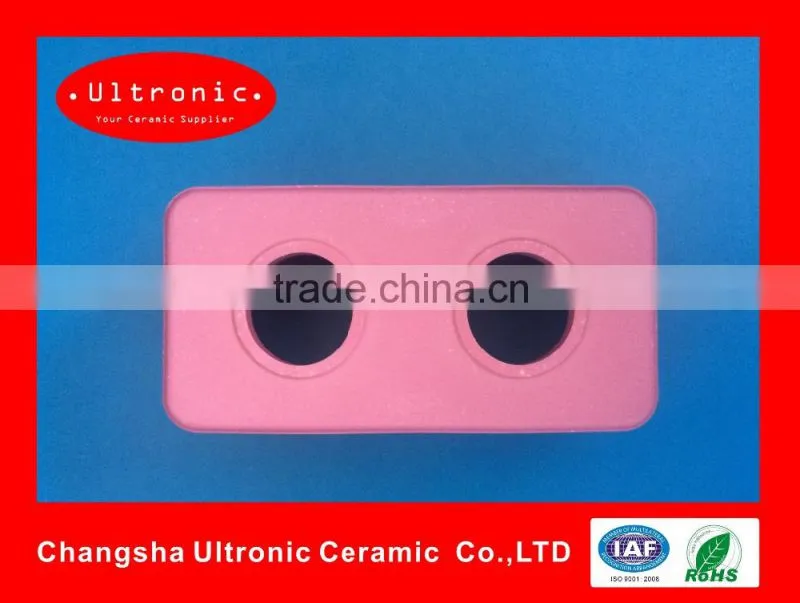

Electromobile Relay Alumina Ceramic Cases
Features of Electric Car Relay Ceramic Shell
1. Good gas tightness
2. High breaking strength
3. Hermetic metallization with ceramic
4. High electric insulation and heat resistance performance
5. Wear-resistant and chemical-resistant
Materials Performance
| Item |
Unit | Performance | |||||
Alumina ceramic |
steatite ceramic | |||||||
90% | 92% | 95% | 96% | |||||
Ceramic Body
| Appearance | Color | - | white,ivory white,brown,black | White off-white | |||
Mechanical Characters |
Bulk Density | g/cm3 | ≥3.6 | ≥3.65 | ≥3.7 | ≥3..75 | 2.7 | |
Water Absorption | % | 0 | 0 | |||||
Flexural strength | MPa | 280 | 300 | 310 | 320 | 150 | ||
(HV) Hardness | GPa | 12 | 5.8 | |||||
Thermal Characters |
Coefficient of linear thermal expansion | 20℃~800℃ ×10-6mm/℃ | 6.3~7.3 | 6.4~7.4 | 6.5~7.5 | 6.8~7.8 | 8.0 | |
Thermal Conductivity | W/(m.K) | 12 | 16 | 20 | 23 | 2 | ||
Electrical Characters |
Dielectric constant(1MHz) | — | 9~10 | 9~10 | 9~10 | 10 | 7.5 | |
Dielectric loss angle | ×10-4 | ≤6 | ≤5 | ≤4 | ≤3 | 8 | ||
Dielectric Strength | KV/mm | 15 | 20 | 24 | 28 | 18 | ||
Metalized Ceramics |
Gas leakage coefficient | Pa.m3/s | ≤10-8 | - | ||||
Volume resistivity | Ω.cm | ≥1015 | - | |||||
Combined strength | MPa | ≥120 | - | |||||
Thickness of Metal | μm | ≥20 | - | |||||
Company Description
Changsha Ultronic Ceramic Technology Co., Ltd. is located in Changsha City, the capital of Hunan Province. Since its establishment in September 2010, Ultronic has been devoted to manufacturing alumina ceramics and steatite ceramics for electric components and industrial ceramics. Now, we have the forming technologies of hot pressing, dry pressing, injection molding, tape casting, and isostatic pressing. We also have the special process of surface metallization, glazing, and polishing. Our main products include ceramic thermostat housing, ceramic rod, metalized ceramic GDT tube, faucet cartridge ceramic disc, ceramic insulating plate and so on. And we supply to leading companies in respective business, such as and so on.
We have below product categories
Ceramic Substrate
Zirconia Ceramic
Steatite Ceramic Parts
Ceramic Pin/Rod
Ceramic Tube/Ring
Ceramic Lamp Holder
Thermostat Ceramic Parts

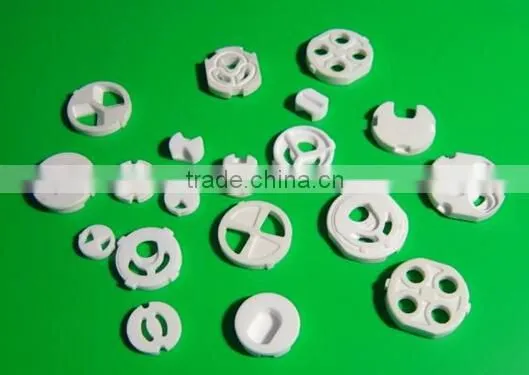

Ceramic Faucet Cartridge Discs
Metalized Ceramic Parts
Other products of our company are as follows.
x
If you have other drawings of products,please contact us.We are always at your service.
Company Profile
Ultronic Ceramic Technology Co., Ltd is located in Changsha City, the capital of Hunan Province. Since its establishment in September 2010, Ultronic has been devoted to manufacturing alumina ceramics and steatite ceramics for electric components and industrial ceramics. Now we have the forming technologies of hot pressing, dry pressing, injection molding, tape casting, and isostatic pressing. We also have the special process of surface metallization, glazing, and polishing. Our routine products include ceramic thermostat housing, ceramic rod, metalized ceramic GDT tube, faucet cartridge ceramic disc, ceramic insulating plate and so on.
